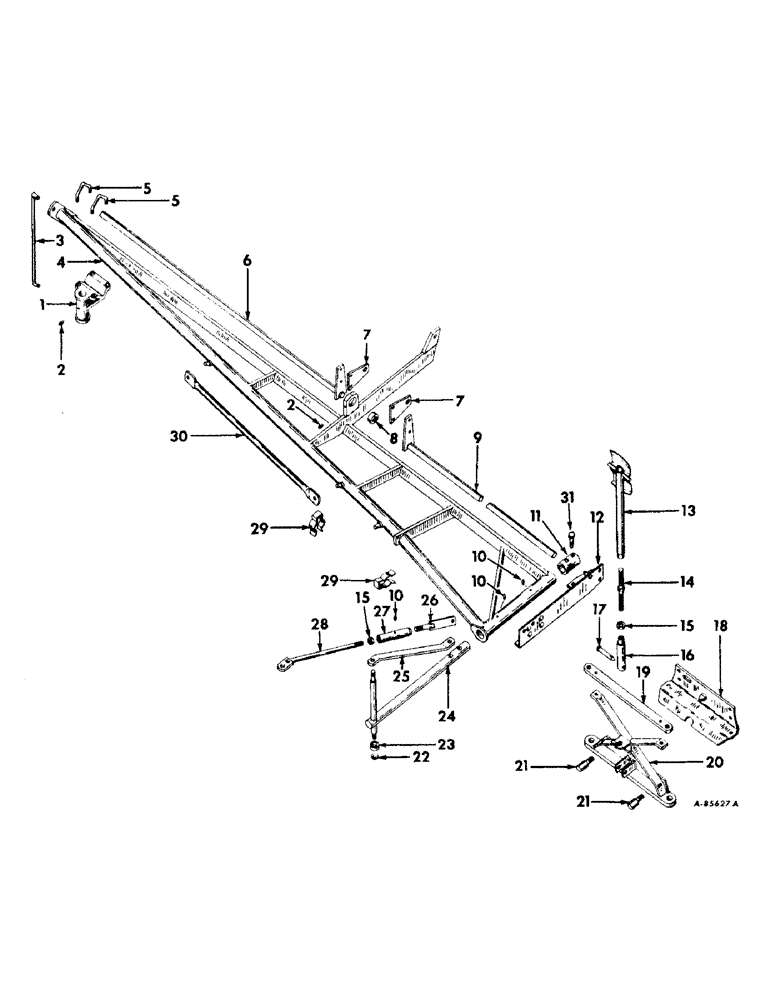

Запчасти Case IH 65 (H-04[A]) - TOOL BARS, SQUARE

1

462962R1

BRACKET, transport wheel

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

3

483122R1

ROD, transport

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick-attachable cotter

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

16066R1

WASHER

25/32 x 1-1/2 in. x 16 ga

1шт.

4

483123R91

FRAME ASSEMBLY, left main

1шт.

4

483124R91

FRAME ASSEMBLY, right main

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick-attachable cotter

2шт.

5

462913R1

U-BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

483120R91

ROCKSHAFT ASSEMBLY, outer

1шт.

7

462915R1

PLATE, lift

1шт.

20995R1

SCREW

1/2 x 2-3/4 in. zn-pltd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

480195R1

BUSHING

rockshaft

1шт.

9

480192R11

ROCKSHAFT ASSEMBLY, inner

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

1шт.

11

462891R1

COLLAR, thrust

1шт.

12

462943R92

FRAME ASSEMBLY, attaching plate LH

1шт.

12

462944R92

FRAME ASSEMBLY, attaching plate RH

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 in. crg

3шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 in. mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

4шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick attachable cotter

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

462906R11

SUPPORT

PLATE ASSEMBLY, stand support

1шт.

14

462941R11

TURNBUCKLE

ROD ASSEMBLY, adjusting

1шт.

15

516773R1

NUT

locking

1шт.

16

462912R1

STAND, upper end support

1шт.

17

650256R1

PIN,3/4" x 2 7/8"

3/4 x 2-7/8 in. dld-std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

18

262959R11

PLATE ASSEMBLY, frame pick-up

1шт.

18836R1

BOLT,Hex, 3/4"-10 x 1 1/2", G2

3/4 x 1-1/2 in. C-Z mach

2шт.

19

462979R2

SPREADER

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 in. mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

462963R92

FRAME ASSEMBLY, attaching

1шт.

21

462896R1

BOLT

frame attaching

1шт.

22

615610R1

WASHER

1-1/32 x 2 in. x 7 ga

1шт.

23

462914R1

SPACER, frame pivot

1шт.

24

462933R11

PIN W/NUT, frame pivot

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1 in. slt-hex.

2шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick attachable cotter

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

25

473495R1

BRACE, upper frame LH

1шт.

25

473496R1

BRACE, upper frame RH

1шт.

17796R1

BOLT, 7/8 x 4-3/4 in. mach

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

26

462911R11

BRACE ASSEMBLY, frame lower RH

1шт.

27

526904R1

TURNBUCKLE

1шт.

28

473497R1

BRACE, attaching frame

2шт.

29

462909R1

CLAMP, hose

1шт.

30

462946R1

PIPE, transport

1шт.

642292R1

HEADED PIN,7/8" x 4"

PIN, 7/8 x 4 in. dld-std-hd

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick attachable cotter

1шт.

31

486220R1

PIN

frame retaining

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick attachable cotter

1шт.

1

462972R2

TOOL BAR, no. 1 RH, 1-3/8 in. sq. x 36-1/2 in. long

1шт.

2

462973R1

TOOL BAR, no. 1 LH

1шт.

3

522565R1

TOOL BAR, no. 2, 1-3/8 in. sq. x 32 in. long

1шт.

4

522566R1

TOOL BAR, nos. 3, 4, 5 and 6, 1-3/8 in. sq. x 25-1/2 in. long

1шт.

5

462940R1

TOOL BAR, nos. 6 and 8, 1-3/8 in. sq. x 26 in. long

1шт.

6

523062R1

TOOL BAR, nos. 5 and 7, 1-3/8 in. sq. x 29-7/16 in. long

1шт.

6

523380R1

TOOL BAR, no. 4, 1-3/8 in. sq. x 33-7/16 in. long

1шт.
