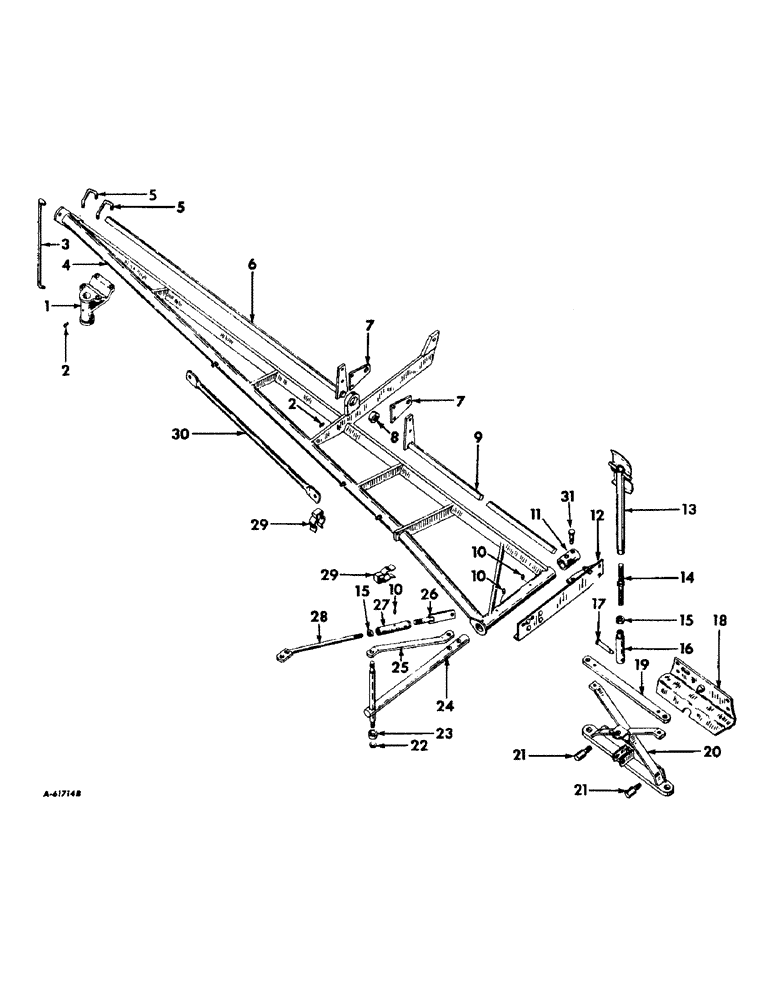

Запчасти Case IH 65 (H-02) - MAIN FRAME

1

462962R1

BRACKET, transport wheel

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

462895R1

ROD, transport

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick-attachable cotter

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

16066R1

WASHER

25/32 x 1-1/2 in. x 16 ga

1шт.

4

462970R91

FRAME ASSEMBLY, left main

1шт.

4

462971R91

FRAME ASSEMBLY, right main

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick-attachable cotter

2шт.

5

462913R1

U-BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

480193R11

ROCKSHAFT ASSEMBLY, outer

1шт.

7

462915R1

PLATE, lift

1шт.

20995R1

SCREW

1/2 x 2-3/4 in. zn-pltd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

480195R1

BUSHING

rockshaft

1шт.

9

480192R11

ROCKSHAFT ASSEMBLY, inner

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

1шт.

11

462891R1

COLLAR, thrust

1шт.

12

462943R92

FRAME ASSEMBLY, attaching plate LH

1шт.

12

462944R92

FRAME ASSEMBLY, attaching plate RH

1шт.

18791R1

BOLT

5/8 x 1-3/4 in. crg

3шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 in. mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

4шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. QA cot

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

462906R11

SUPPORT

PLATE ASSEMBLY, stand support

1шт.

14

462941R11

TURNBUCKLE

ROD ASSEMBLY, adjusting

1шт.

15

516773R1

NUT

locking

1шт.

16

462912R1

STAND, upper end support

1шт.

17

650256R1

PIN,3/4" x 2 7/8"

3/4 x 2-7/8 in. dld-st-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

18

462959R11

PLATE ASSEMBLY, frame pick-up

1шт.

18836R1

BOLT,Hex, 3/4"-10 x 1 1/2", G2

3/4 x 1-1/2 in. C-Z mach

2шт.

19

462979R2

SPREADER

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-1/2 in. C-Z mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

462963R92

FRAME ASSEMBLY, attaching

1шт.

21

462896R1

BOLT

frame attaching

1шт.

22

615610R1

WASHER

1-1/32 x 2 in. x 7 ga

1шт.

23

462914R1

SPACER, frame pivot

1шт.

24

462933R11

PIN W/NUT, frame pivot

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1 in. C-Z slt-hex.

2шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. QA cot

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

25

473495R1

BRACE, upper frame LH

1шт.

25

473496R1

BRACE, upper frame RH

1шт.

25

462958R1

TRUSS, upper frame, order 473496R1 for RH side and 473495R1 for LH side

1шт.

17796R1

BOLT, 7/8 x 4-3/4 in. mach

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

26

462911R11

BRACE ASSEMBLY, frame lower RH

1шт.

27

526904R1

TURNBUCKLE

1шт.

28

462996R11

BRACE ASSEMBLY, right frame upper, order 473497R1

1шт.

28

473497R1

BRACE, attaching frame

2шт.

29

462909R1

CLAMP, hose

1шт.

30

462946R1

PIPE, transport

1шт.

642292R1

HEADED PIN,7/8" x 4"

PIN, 7/8 x 4 in. dld-std-hd

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. quick-attachable cotter

1шт.

31

513715R1

PIN, frame retaining

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 1-3/4 in. QA cot

1шт.
