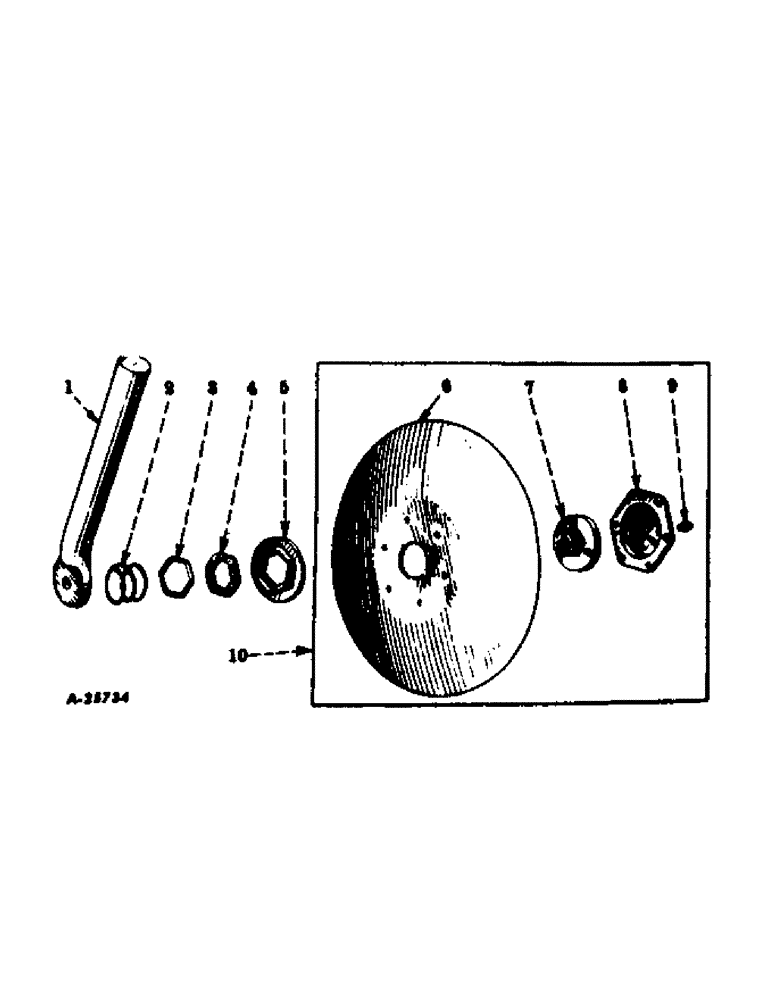

Запчасти Case IH 65 (H-09[A]) - DISK HILLERS

1

512584R3

SUPPORT ASSY.

STANDARD, disk

1шт.

2

516396R1

SPRING

disk bearing, 1.664 in. OD, 1 in. long, 3 coils

1шт.

3

511873R1

SHIM

WASHER, felt washer compression

1шт.

4

13965A

WASHER

disk bearing felt, 1-3/8 x 1-7/8 x 3/16 in.

1шт.

5

511871R1

WASHER

WASHER, dust

1шт.

6

511138R1

DISC

DISK, 13 in. dia

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 in. rd-hd

6шт.

7

511869R1

BLOCK

bearing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 in. C-Z cap

1шт.

131101

LOCK WASHER

1/2"

1шт.

8

511870R1

HUB

BEARING, disk

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

511874R91

DISC

DISK ASSEMBLY

1шт.
