(G-05[B]) - ADAPTING PARTS, PARTS TO ADAPT 3-POINT CATEGORY 1 HITCH TO 3-POINT CATEGORY II HITCH

Запчасти Case IH 63-SERIES (G-05[B]) - ADAPTING PARTS, PARTS TO ADAPT 3-POINT CATEGORY 1 HITCH TO 3-POINT CATEGORY II HITCH

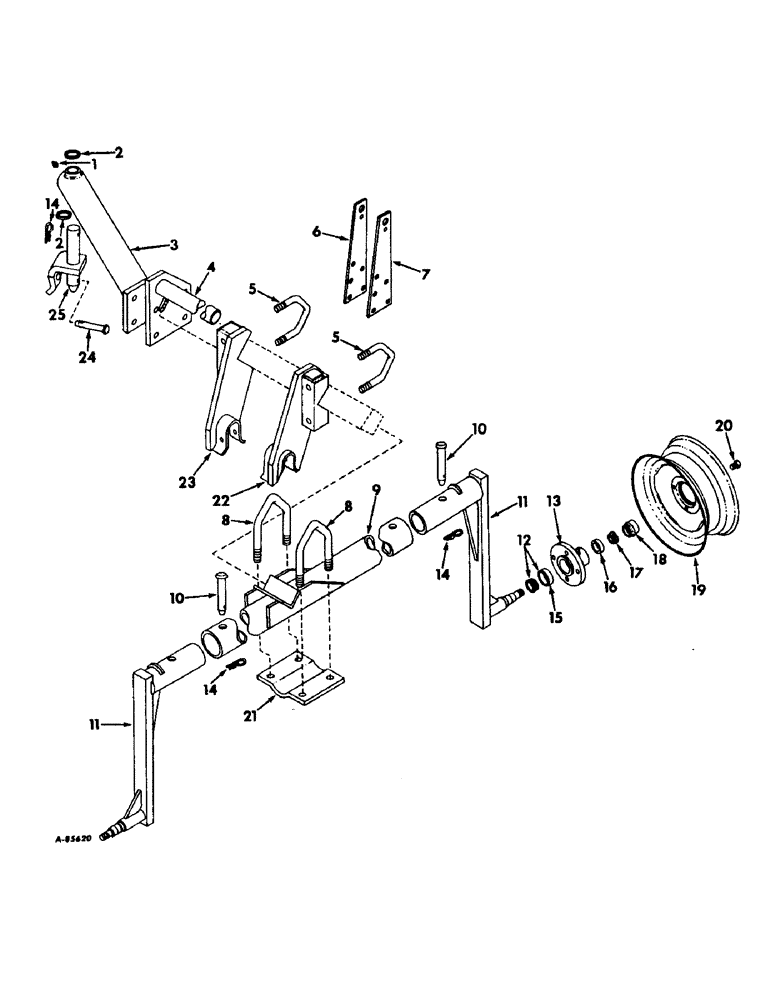

Схема запчастей Case IH 63-SERIES - (G-05[B]) - ADAPTING PARTS, PARTS TO ADAPT 3-POINT CATEGORY 1 HITCH TO 3-POINT CATEGORY II HITCH
12
14
9
24
11
7
19
22
2
13
18
8
11
10
4
23
1
17
8
20
14
5
21
5
2
25
15
10
16
14
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

380580R91

PIN

upper link implement

1шт.

2

380581R1

BUSHING

upper link category I short

1шт.

2

380582R1

BUSHING

upper link category I long

1шт.

3

380583R1

BUSHING

lower link category I short

2шт.

3

380584R1

BUSHING

lower link category I long

2шт.

4

11484R

BUSHING

SPACER, lower link long bushing

2шт.

Выбрано товаров: 6
