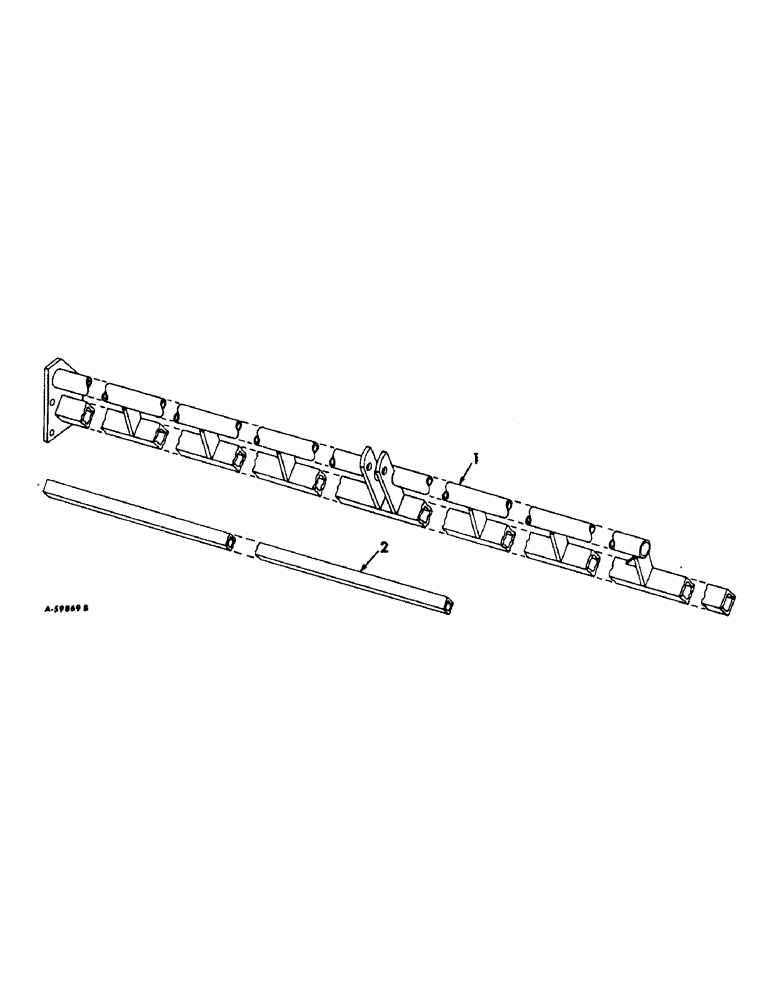

Запчасти Case IH 63-SERIES (G-03) - MAIN FRAME, 4 AND 6 ROW

1

485385R1

FRAME ASSEMBLY, main, 36 to 40 in. spacing, 6 row

1шт.

Q1237

PIN,3/4" x 2 1/2"

3/4 x 2-1/2 in. std-hd

2шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

2шт.

1

486385R1

FRAME ASSEMBLY, main, 24 to 30 in. spacing, 8 row

1шт.

2

463440R92

TOOL BAR ASSEMBLY, 24 to 30 in. spacing, 6 row

1шт.

2

526300R91

TOOL BAR ASSEMBLY, 30 in. spacing

1шт.
