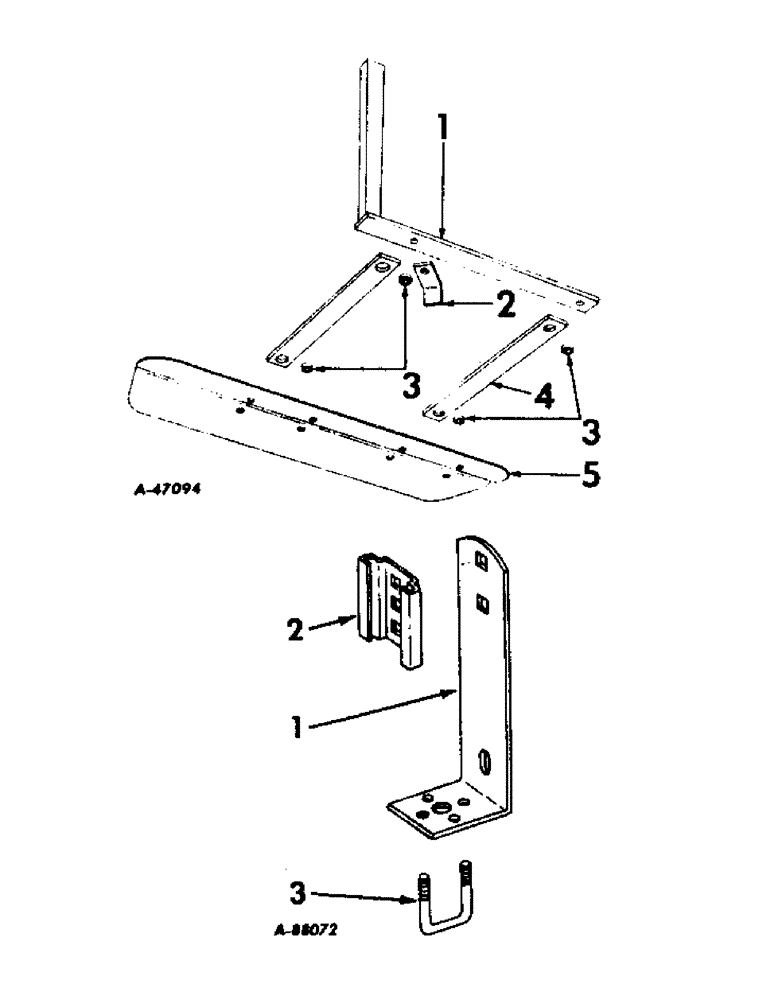

Запчасти Case IH 63-SERIES (G-23) - SHIELD

1

SUPPORT, shield inner, square part 8-3/8 in. long, discontinued for serviced

60шт.

1

464407R91

SUPPORT, shield inner, square part 6-7/8 in. long

60шт.

1

523437R91

SUPPORT, shield outer, square part 9-7/8 in. long

1шт.

1

483269R91

SUPPORT, shield outer, square part is 5-1/2 in. long

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 in. mach

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

2шт.

A1505

WASHER, 13/32 x 1 in. x 16 ga

4шт.

2

515217R1

SUPPORT

CLIP, adjusting

1шт.

3

512836R1

WASHER

BUSHING, pivot link

1шт.

4

513237R1

LINK, inner pivot, offset

1шт.

4

510745R1

LINK, outer pivot, straight

1шт.

5

526319R1

SHIELD

left, with 8-7/8 in., 26 in. long

59шт.

5

526320R1

SHIELD

right, with 8-7/8 in. 26 in. long

59шт.

5

SHIELD, with 6-7/8 in., 24 in. long (56), discontinued for service

58шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 in. x 16 ga

4шт.

102635

NUT,3/8"-16, G5

2шт.

1

486487R1

SUPPORT TUBE

SUPPORT, safety light

2шт.

2

363919R1

SOCKET

safety light, not used on the 63 series cultivator

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 in. C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

27673B

U-BOLT

2шт.

102637

NUT,1/2"-13, G5

4шт.
