Запчасти Case IH 63-SERIES (G-22) - TOOL BAR EXTENSION

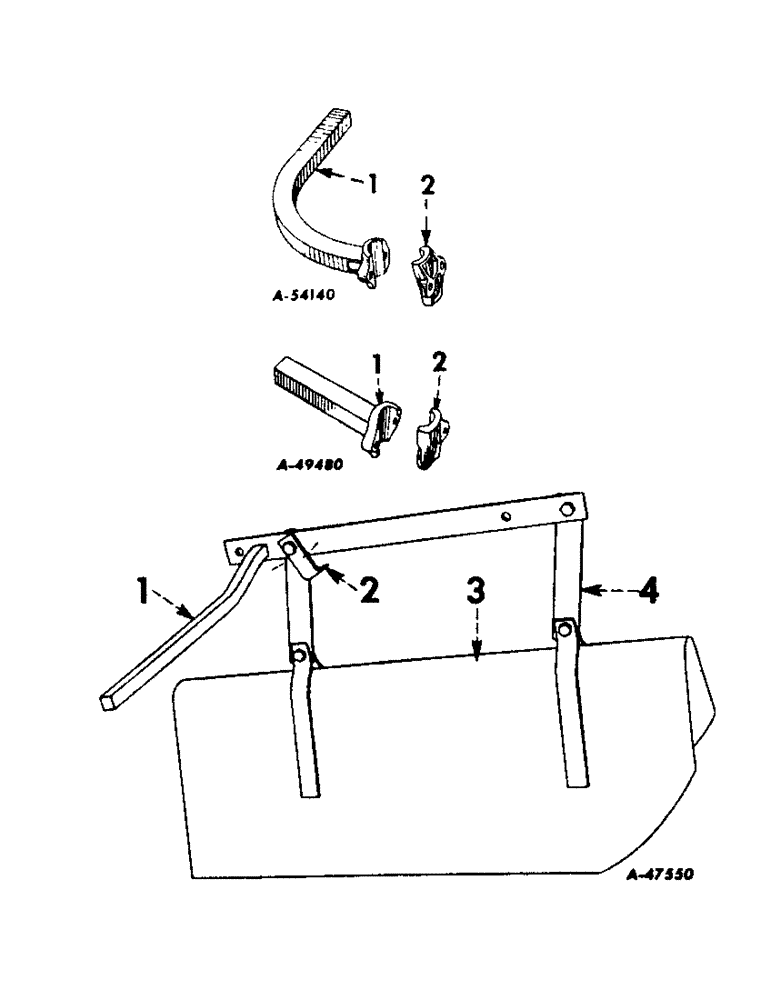

Схема запчастей Case IH 63-SERIES - (G-22) - TOOL BAR EXTENSION
2
2
1
1
2
1
3
4

Артикул

Название

Примечание

Количество

1

525818R1

EXTENSION, tool bar

1шт.

29821B

BOLT, 1/2 x 2-1/2 in. sq-hd mach, heat-treated

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

1779BB

CLAMP

CAP, tool bar extension

1шт.

1

29148BA

EXTENSION, tool bar, 1-1/4 in. sq, 5-1/2 in. long

1шт.

1

28164BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 6-1/2 in. long

1шт.

1

28236BB

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 7-3/4 in. long

1шт.

1

521750R1

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 9-3/4 in. long

1шт.

1

29603BA

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 10-3/4 in. long

1шт.

1

524336R1

CLAMP

EXTENSION, tool bar, 1-1/4 in. sq, 13 in. long

1шт.

2

1779BB

CLAMP

CAP, tool bar extension

1шт.

29822B

BOLT

1/2 x 2-3/4 in. sq-hd heat treated mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

1

523931R91

SUPPORT, shield left

1шт.

1

523932R91

SUPPORT, shield right

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

2шт.

17442R1

BOLT, 3/8 x 1-1/4 in. mach

2шт.

114607

LOCK, Ext Tooth, 7/16"

2шт.

Q1505

WASHER

13/32 x 1 in. x 16 ga

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

515217R1

SUPPORT

CLIP, shield adjusting

1шт.

3

513267R91

SHIELD W/STRAPS

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

4

513265R1

LINK, pivot, straight

1шт.

512836R1

WASHER

BUSHING, pivot link

1шт.

Выбрано товаров: 28
