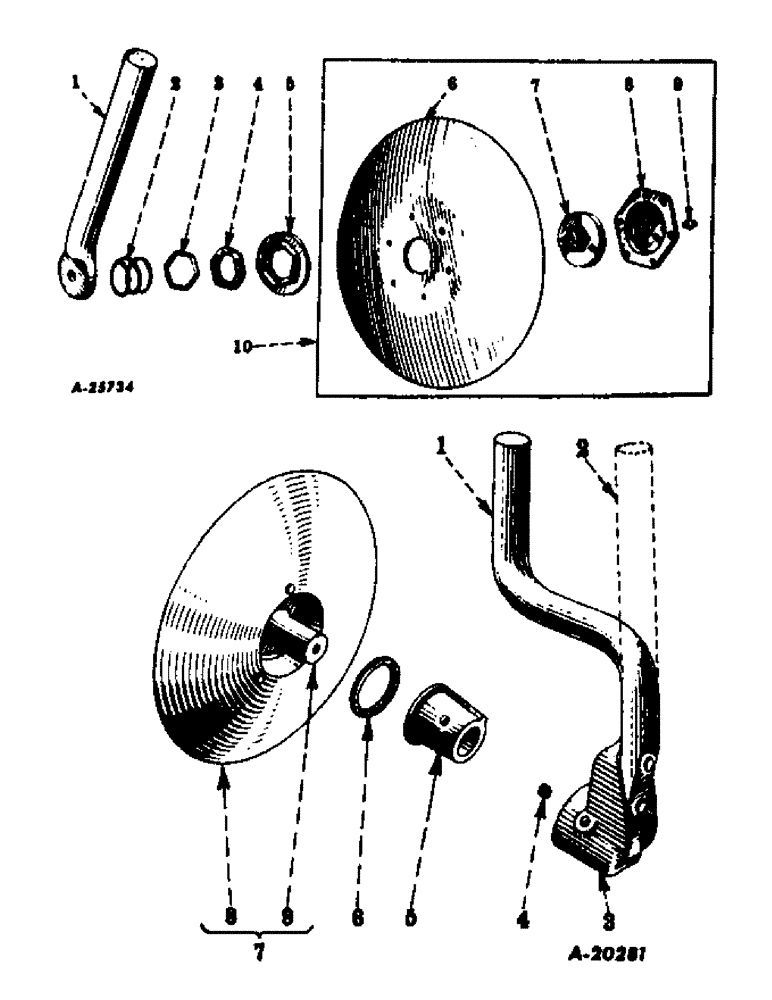

Запчасти Case IH 63-SERIES (G-21[A]) - DISK HILLER

1

512584R3

SUPPORT ASSY.

STANDARD, disk

1шт.

2

516396R1

SPRING

disk bearing, 1.664 in. OD, 1 in. long, 3 coils

1шт.

3

511873R1

SHIM

WASHER, felt washer compression

1шт.

4

13965A

WASHER

disk bearing felt, 1-3/8 x 1-7/8 x 3/16 in.

1шт.

5

511871R1

WASHER

WASHER, dust

1шт.

6

511138R1

DISC

DISK, 13 in. dia

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 in. rd-hd

6шт.

7

511869R1

BLOCK

bearing

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 in. C-Z cap

1шт.

131101

LOCK WASHER

1/2"

1шт.

8

511870R1

HUB

BEARING, disk

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

511874R91

DISC

DISK ASSEMBLY

1шт.

1

29238B

STANDARD, 6-1/2 in. offset, 1-1/4 in. dia

1шт.

2

29514B

STANDARD, straight, 1-1/4 in. dia

1шт.

110437

RIVET,But Hd, 7/16" x 1 1/2"

7/16 x 1-1/2 in. rd-hd

2шт.

3

1438BX

BRACKET W/SET SCREW, standard

1шт.

19888R1

SCREW, 7/16 x 1 in. C-Z cup-pt sq-hd set

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

5

1436BA

SLEEVE CYLINDER

SLEEVE

1шт.

15166R1

BOLT, 3/8 x 3-3/8 in. crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

557267R1

WASHER

15/32 x 1-3/4 in. x 11 ga

1шт.

6

M1

WASHER

felt

1шт.

7

25458BB

HUB CAP

DISK W/HUB

1шт.

8

29955B

DISC

DISK, 13 in. dia

1шт.

9

1894BA

HUB CAP

HUB, disk

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 in. truss-hd

6шт.
