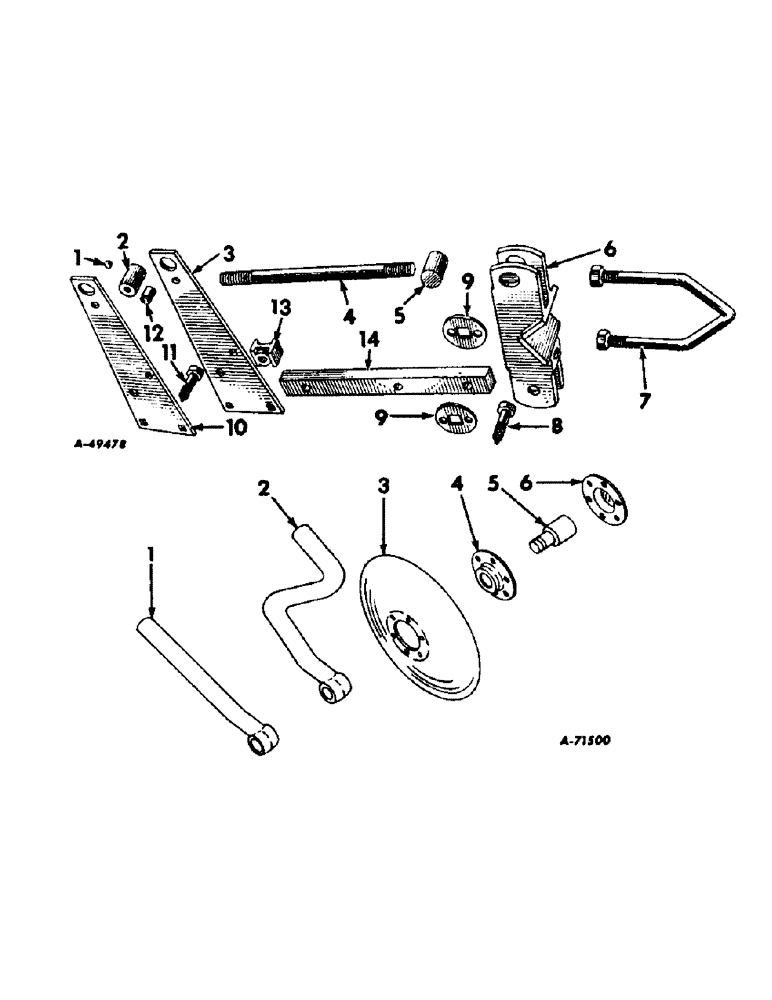

Запчасти Case IH 63-SERIES (G-20) - PARALLEL LINKAGE

1

522591R1

PLUG

locking bolt

1шт.

2

522510R1

BAR

SWIVEL, upper parallel link, RH thd

1шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

3

524050R1

PLATE, tool bar attaching, not tapped

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

523448R1

ROD

upper parallel

1шт.

5

522509R1

BAR

SWIVEL, upper parallel link, LH thd

1шт.

6

BRACKET, head, for 3-1/4 in. sq tool bar, discontinued for service

1шт.

6

BRACKET, head, for 2-1/2 in. sq tool bar, discontinued for service

1шт.

7

524047R1

BOLT

U-BOLT, gang attaching, for 3-1/4 in. sq tool bar

1шт.

280954

NUT,3/4"-10, G5

2шт.

7

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, gang attaching, for 2-1/2 in. sq tool bar

1шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

1шт.

8

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

3/4 x 2-3/4 in. mach parallel pivot front, 1-1/8 in. thd dld for fitting

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

10

524049R1

PLATE, tool bar attaching, tapped

1шт.

11

522544R2

BOLT

3/4 x 2-1/2 in. mach lower parallel link pivot rear, 1-1/16 in. thd, dld for fitting

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

12

522537R1

SPACER

tool bar attaching plate

1шт.

13

524048R1

BLOCK, gang stop

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

624133R1

PIN, 5/8 x 1-15/16 in. dld-std-hd 5/8" x 1 15/16"

1шт.

14

523456R1

LINK, lower parallel

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication, in Lower parallel link pivot bolt

1шт.

1

469373R1

SUPPORT ASSY.

STANDARD, straight

1шт.

138711

SCREW, 3/8 x 7/16 in. hex-soc-hd ov-pt set

1шт.

2

469374R1

SUPPORT ASSY.

STANDARD, offset

1шт.

138711

SCREW, 3/8 x 7/16 in. hex soc hd ov-pt set

1шт.

3

469372R1

DISC,13"

DISK, 13 in.

1шт.

120376

NUT,5/16"-18, G5

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 in. C-Z pltd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

468009R1

RETAINER

HOUSING, bearing, open half

1шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

6

468008R1

COVER

HOUSING, bearing, closed half

1шт.
