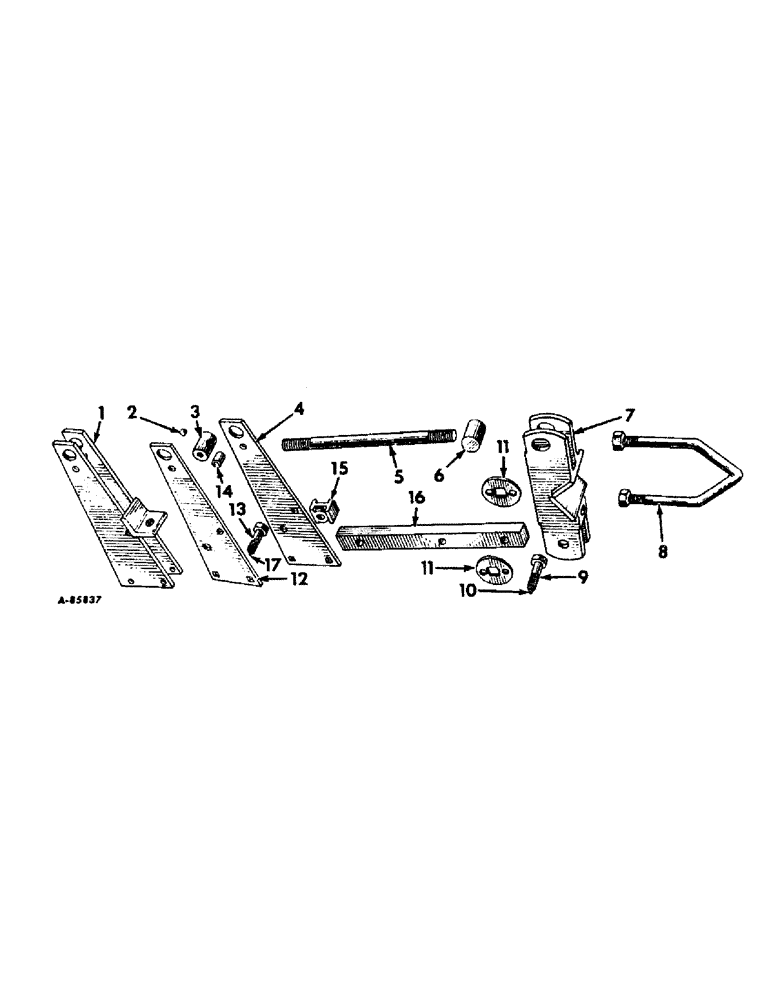

Запчасти Case IH 63-SERIES (G-19) - PARALLEL LINKAGE

1

483555R91

BRACKET ASSY, side plate

4шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

4шт.

113639

SCREW, 3/4 x 2-1/2 in. oval-pt sq-hd set

4шт.

2

522591R1

PLUG

locking bolt

16шт.

3

522510R1

BAR

SWIVEL, upper parallel link rear, RH thd

16шт.

19289R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

16шт.

4

524050R1

PLATE, tool bar attaching, not tapped

11шт.

4

483554R1

PLATE, attaching, not tapped

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. sq-nk crg, heat-treated

32шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

48шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

5

523448R1

ROD

upper parallel

16шт.

6

522509R1

BAR

SWIVEL, upper parallel link upper, LH thd

16шт.

7

BRACKET ASSY, head, discontinued for serviced

16шт.

8

524047R1

BOLT

U-BOLT, parallel link

16шт.

280954

NUT,3/4"-10, G5

32шт.

9

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

3/4 x 2-3/4 in. mach, lower parallel link pivot front, 1-1/8 in. dld for fitting

16шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in straight lubrication, in Lower parallel link pivot bolt

16шт.

10

16964R91

FITTING

1/4 in. 90 degree angle lubrication, in lower link pivot bolt next to transport attachment and guide fins

1шт.

11

522532R1

RETAINER

WASHER, lower parallel link bearing

32шт.

12

524049R1

PLATE, tool bar attaching, tapped

11шт.

12

483553R1

PLATE, attaching, tapped

1шт.

13

522544R2

BOLT

3/4 x 2-1/2 in. mach lower parallel link pivot rear, 1-1/16 in. thd dld for fitting

16шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

14

522537R1

SPACER

tool bar attaching plate

16шт.

15

524048R1

BLOCK, gang stop

12шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

12шт.

624133R1

PIN, 5/8 x 1-15/16 in. dld-std hd 5/8" x 1 15/16"

12шт.

16

523456R1

LINK, lower parallel

16шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITING, 1/4 in. straight lubrication, in Lower parallel link pivot bolt

16шт.
