Запчасти Case IH 63-SERIES (G-17) - ROTARY WEEDER ATTACHMENT

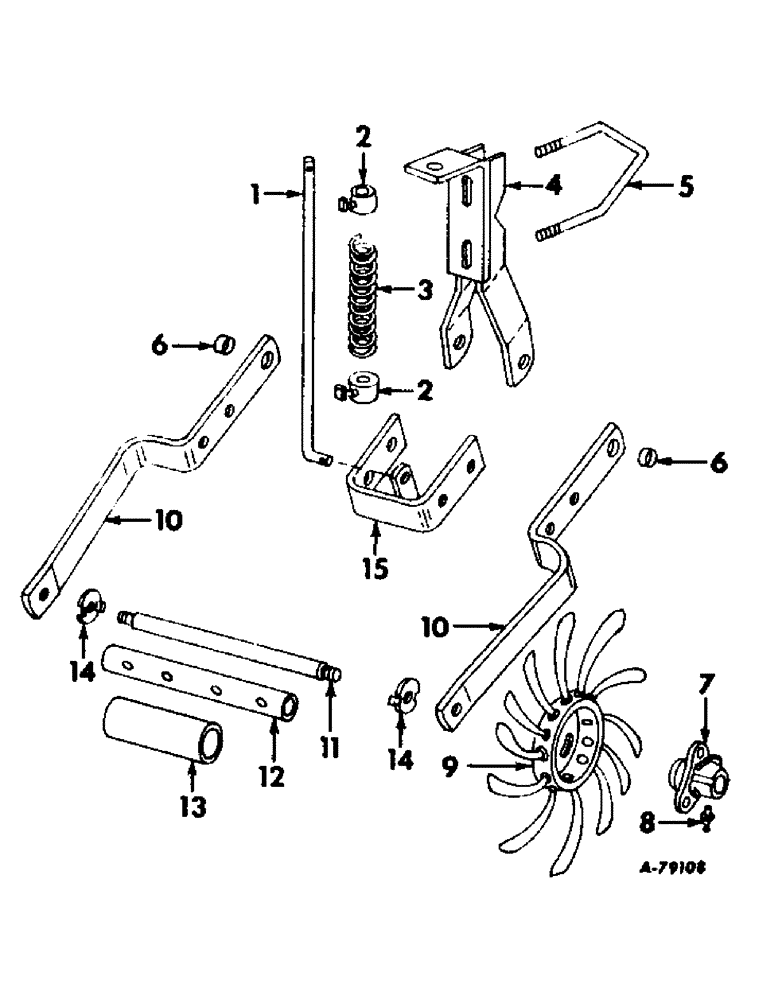

Схема запчастей Case IH 63-SERIES - (G-17) - ROTARY WEEDER ATTACHMENT
6
15
11
9
14
7
8
3
14
13
12
4
10
10
5
2
1
6
2

Артикул

Название

Примечание

Количество

1

477188R1

ROD, pressure

1шт.

2

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

3

308X

SPRING, pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

477189R91

BRACKET, attaching

1шт.

5

472394R1

U-BOLT, attaching bracket, to be obtained through parts service to replace U-bolt furnished with this attachment, when applied on 63 two-row, four-row and six-row cultivator

1шт.

5

477193R1

U-BOLT, attaching bracket

1шт.

102639

NUT,5/8"-11, G5

2шт.

575816R1

WASHER, 21/32 x 1-1/2 in. x 11 ga

2шт.

6

511160R1

BUSHING, frame rail

1шт.

7

522293R1

HUB, wheel

1шт.

17457R1

BOLT, 3/8 x 1-3/8 in. mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In wheel hub 1/8"-27 x .66 lg

1шт.

9

522294R11

WHEEL, rotary, 12T

1шт.

10

477185R1

ARM, frame

1шт.

17525R1

BOLT

5/8 x 2 in. mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

375810R1

OIL SEAL

WASHER, 21/32 x 1-1/2 in. x 11 ga

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

516442R1

SHAFT, weeder wheel

1шт.

102637

NUT,1/2"-13, G5

1шт.

552356R1

WASHER

25/32 x 2-1/4 in. x 11 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

517706R1

SLEEVE, bearing

1шт.

Q216

WASHER

1-3/32 x 1-3/4 in. x 16 ga

1шт.

13

517708R1

SPACER, used in place of the two center wheels when the weeder is to be used as a shield

1шт.

14

516447R1

WASHER, wheel hub wear

1шт.

15

477186R11

BRACKET, frame rail

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2 x 1-3/4 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

Выбрано товаров: 34
