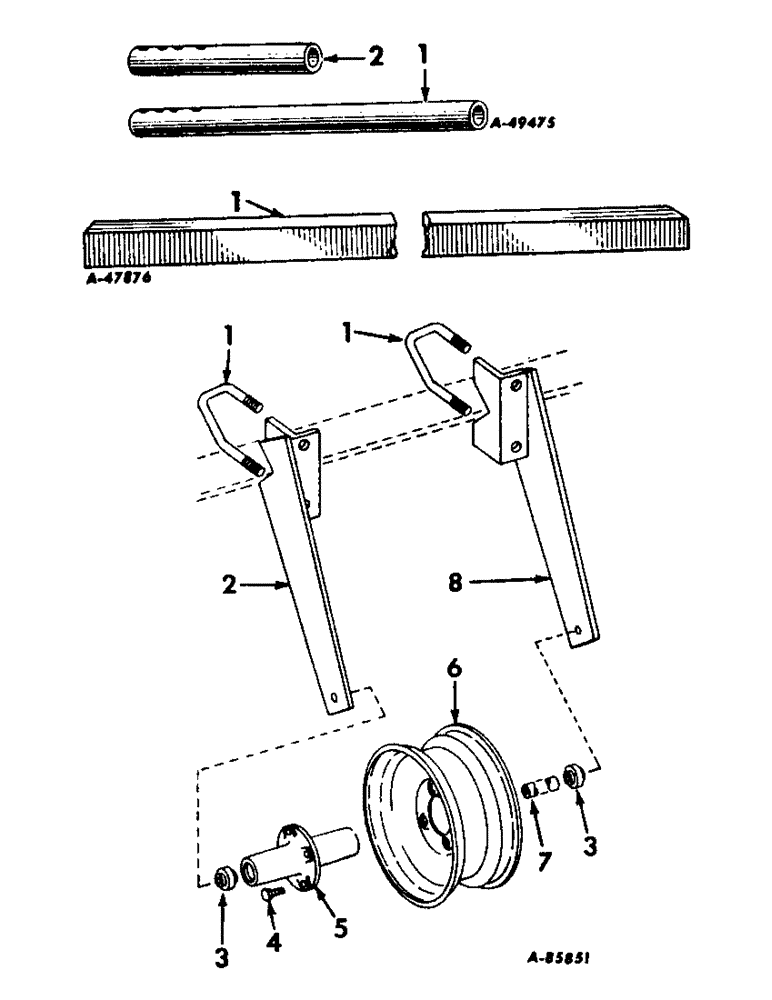

Запчасти Case IH 63-SERIES (G-15[A]) - MAIN TOOL BAR

1

523653R3

TOOL BAR, 1.66 in. OD, pipe, 36 in. long, 5 holes

1шт.

1

524337R2

TOOL BAR, 1.66 in. OD, pipe, 40-1/4 in. long

1шт.

2

522646R3

PIPE

TOOL BAR, 1.66 in. OD, pipe, 25-1/2 in. long, 5 holes

1шт.

2

524338R2

TOOL BAR, 1.66 in. OD, pipe, 29-3/4 in. long

1шт.

1

469912R91

TOOL BAR, main, 3-1/4 in. sq. 126 in. long, four-row cultivator, narrow spacing

1шт.

1

524058R91

TOOL BAR, main, 3-1/4 in. sq 156 in. long, four-row cultivator, wide spacing

1шт.

1

463440R92

TOOL BAR, main, 3-1/4 in. sq, 190 in, long, four-row cultivator, wide row

1шт.

1

525093R91

TOOL BAR, main, 3-1/4 in. sq, 72 in. long, two-row cultivator, used 1958

1шт.

1

526466R91

TOOL BAR, main, 2-1/2 in. sq, 72 in. long, two-row cultivator, used 1959

1шт.

1

483561R1

BOLT

U-BOLT, wheel arm

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

NLS

NO LONGER SERVICED

7/8"

4шт.

2

483558R91

AXLE ASSY, wheel RH

1шт.

3

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

roller

2шт.

4

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

5

465418R2

HUB

wheel

1шт.

6

463036R1

WHEEL (STEERING)

RIM, 14 in. std wheel

1шт.

7

465423R1

PIPE

SPACER, pipe

1шт.

18065R1

BOLT,Hex, 5/8"-11 x 12", G2

5/8 x 12 pln type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

483557R91

AXLE ASSY, wheel LH

1шт.
