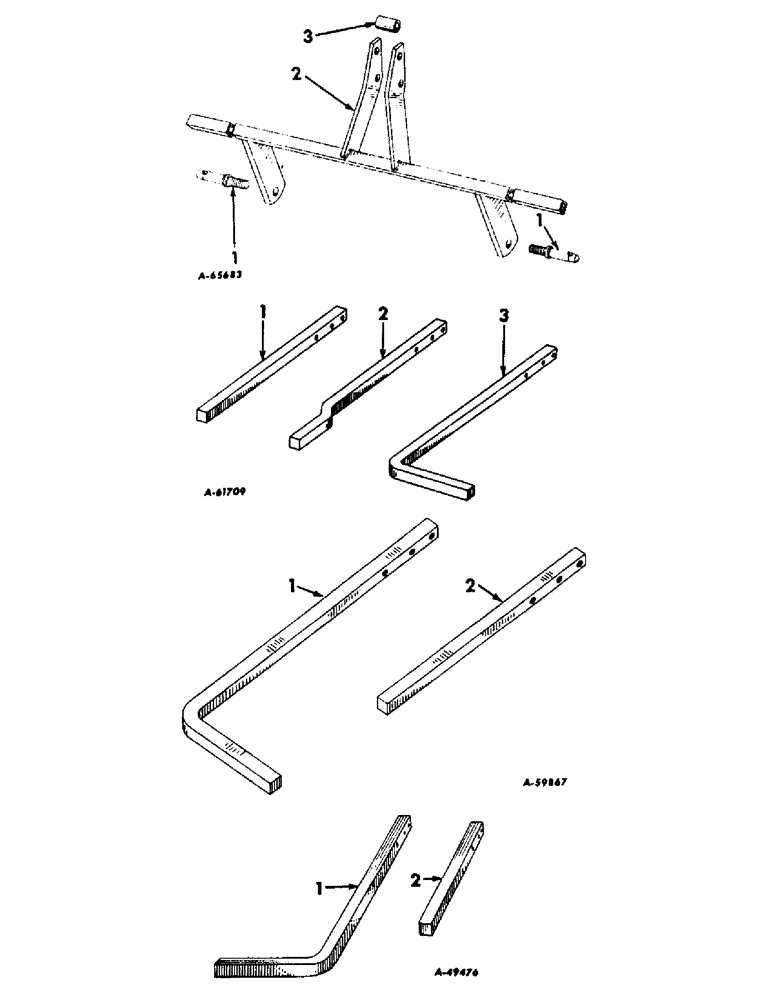

Запчасти Case IH 63-SERIES (G-14) - MAIN FRAME AND MAIN TOOL BAR

1

525896R1

STUD

lower link

2шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z pltd

1шт.

131047

WASHER,7/8"

7/8"

1шт.

2

466580R91

FRAME ASSY, main, for 63 two-row

1шт.

18173R1

BOLT

3/4 x 3-3/4 in. C-Z mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

462425R1

SPACER

mast

1шт.

18841

FITTING

BOLT, 3/4 x 4 in. C-Z mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

1

522565R1

TOOL BAR, straight square

1шт.

2

463453R1

TOOL BAR, center

1шт.

3

524334R1

TOOL BAR, bent-long square

1шт.

1

523380R1

TOOL BAR, bent-short square, 1-3/8 in. sq x 33-1/2 in. long

1шт.

2

522566R1

TOOL BAR, straight-short square, 1-3/8 in. sq x 25-1/2 in. long

1шт.

1

523380R1

TOOL BAR, 1-3/8 in. sq, overall lgth. 33-1/2 in.

1шт.

1

524334R1

TOOL BAR, 1-3/8 in. sq, overall lgth 50-3/16 in.

1шт.

2

522566R1

TOOL BAR, 1-3/8 in. sq, 25-1/2 in. long

1шт.

2

524335R1

TOOL BAR, 1-3/8 in. sq, 29-3/4 in. long

1шт.
