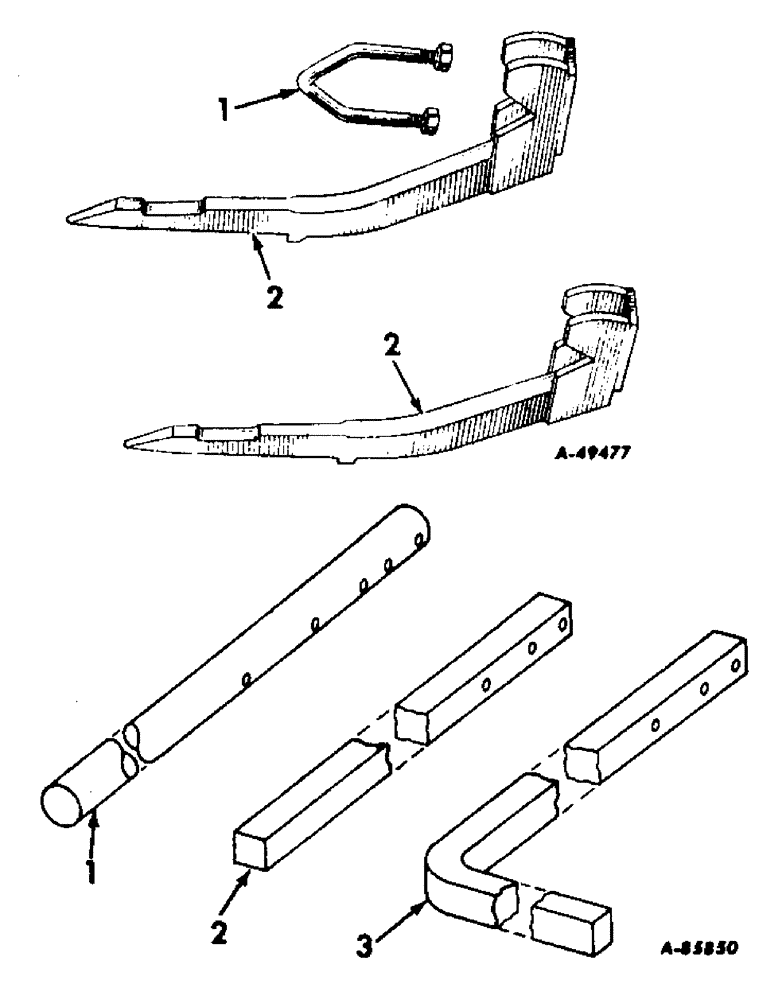

Запчасти Case IH 63-SERIES (G-13) - COUPLING BEAMS, USED 1958

1

524046R1

U-BOLT, coupling beam attaching

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

2

524056R11

BEAM, coupling, four-row cultivator and 3 in. fast-hitch sockets

1шт.

2

525091R11

BEAM, coupling, two-row cultivator and 2-1/2 in. fast-hitch sockets

1шт.

2

525090R11

BEAM, coupling, tow-row cultivator and 3 in. fast-hitch sockets

1шт.

1

522646R3

PIPE

TOOL BAR, 1-5/8 in. dia. 25-1/2 in. long

1шт.

1

483566R1

TOOL BAR, outer RH, 1-5/8 in. dia. 27 in. long

1шт.

1

523653R3

TOOL BAR, 1-5/8 in. dia. 36 in. long

1шт.

2

522566R1

TOOL BAR, straight short square, 1-3/8 in. sq 25-1/2 in. long

1шт.

2

483565R1

TOOL BAR, straight outer RH, 1-3/8 in. sq, 27 in. long

1шт.

3

523380R1

TOOL BAR, bent-short square, 1-3/8 in. sq 33-1/2 in. long

1шт.
