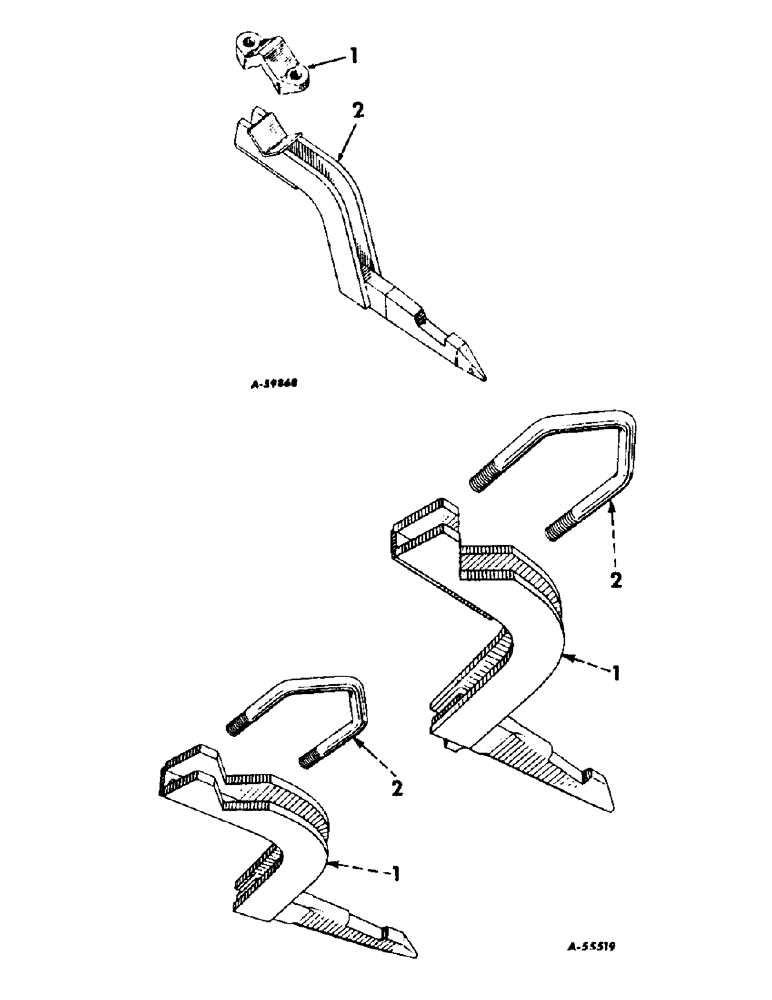

Запчасти Case IH 63-SERIES (G-12) - COUPLING BEAM

1

520303R1

CAP, beam

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

17241R1

SCREW, 7/8 x 7-1/2 in. cap

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

2

526469R91

BEAM ASSEMBLY, coupling

1шт.

1

526464R91

BEAM, coupling, for 2-1/2 in. fast hitch socket and 2-1/2 in. sq tool bar

1шт.

1

526465R91

BEAM, coupling, for 3 in. fast-hitch sockets and 2-1/2 in. sq tool bar

1шт.

1

526469R91

BEAM, coupling, for 3 in. fast-hitch socket and 3-1/4 in sq tool bar

1шт.

2

526048R11

U-BOLT W/NUTS, coupling beam, for 2-1/2 in. sq tool bar

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

2шт.

2

524046R1

U-BOLT, coupling beam, for 3-1/2 in. sq tool bar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.
