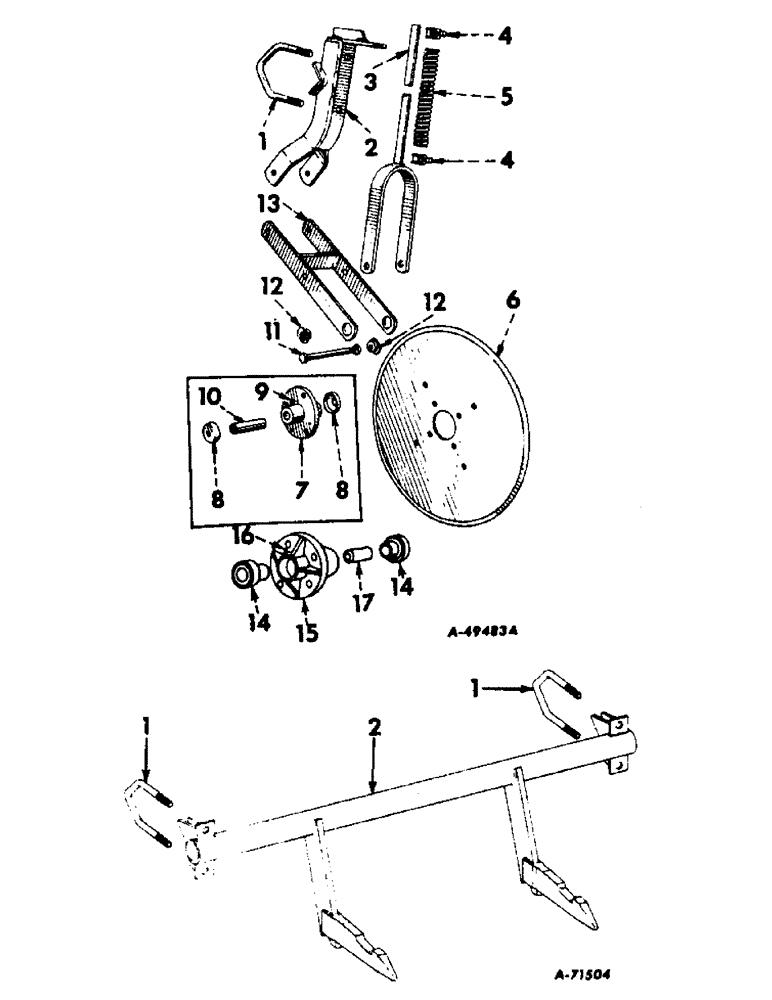

Запчасти Case IH 63-SERIES (G-11) - ROLLING GUIDE FIN, FLEXIBLE

1

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, for 2-1/2 in. sq tool bar

1шт.

1

524047R1

BOLT

U-BOLT, for 3-1/4 in. sq tool bzr

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

2шт.

2

524121R92

BRACKET, attaching

1шт.

3

524333R92

YOKE

ROD W/YOKE, pressure

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

4

PO2041X

COLLAR

W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

5

SA2017

SPRING

pressure, 1.463 in. OD, 9 in. long, 18 coils

1шт.

6

523084R1

DISC

BLADE, rolling fin, 1958

64шт.

120376

NUT,5/16"-18, G5

4шт.

21040R1

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16 x 1-1/4 in. cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

557265R1

WASHER

11/32 x 1 in. x 11 ga

4шт.

6

478436R1

DISC

BLADE, rolling fin, 1964 and since

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 in. C-Z cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

575807R1

WASHER

13/32 x 1 in. x 11 ga

4шт.

7

516564R31

HUB

W/FITTING, blade (57)

61шт.

7

464744R11

HUB ASSY.

HUB W/FITTING, rolling guide fin, Serial Range: 1961-1964

1шт.

8

521949R1

WASHER

COLLAR, sand, Serial Range: 1958-1964

1шт.

9

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication, in hub, 1958

64шт.

10

521948R1

BUSHING

hub, 1958

64шт.

11

17964R11

BOLT

AXLE, 5/8 x 8 in. mach bolt w/nut

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

522054R1

ECCENTRIC

NUT, eccentric

2шт.

13

523080R92

SUPPORT

ARM, support

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 in. C-Z mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 in. C-Z

2шт.

14

478434R91

BEARING

ASSY, ball (64)

2шт.

415

478433R1

HUB

roller guide fin

64шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-NF2 straight lubrication, in hub

64шт.

17

478435R1

SPACER

bearing

64шт.

1

525626R1

BOLT,U, 7/8" - 9 x 8 3/8"

U-BOLT, coupling beam

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

131047

WASHER,7/8"

7/8"

2шт.

2

467108R91

BRACKET, coupling beam

1шт.
