Запчасти Case IH 600 (75.200.29) - GROUND WORKING TOOLS (75) - SOIL PREPARATION

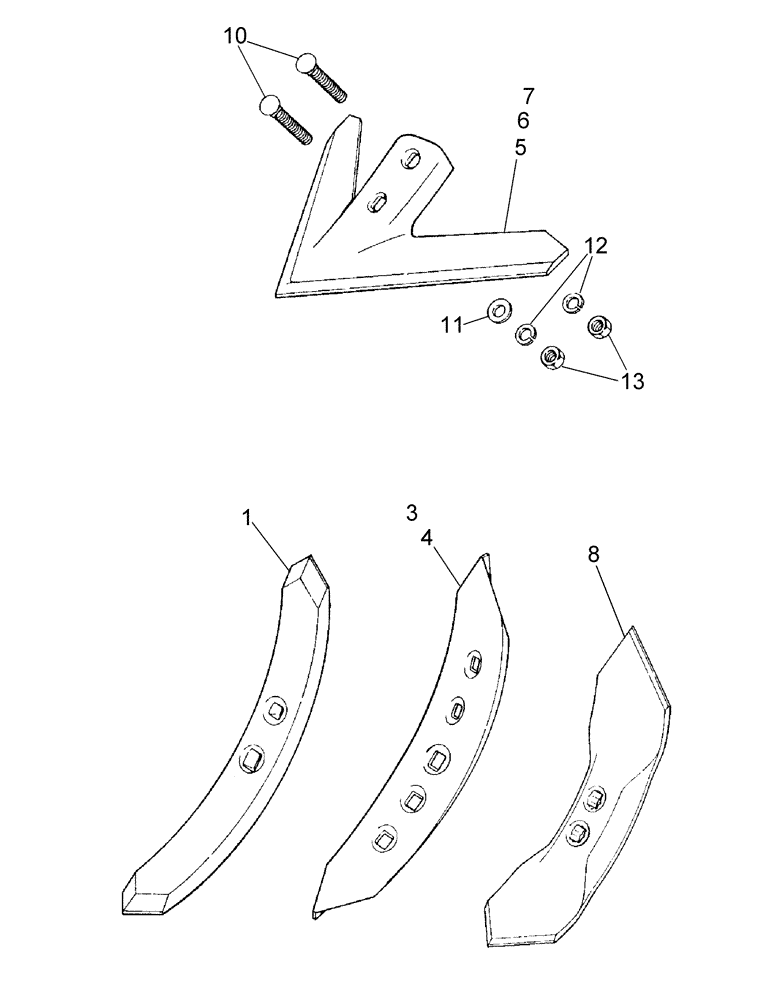

Схема запчастей Case IH 600 - (75.200.29) - GROUND WORKING TOOLS (75) - SOIL PREPARATION
11
7
8
10
1
12
6
5
13
3
4

Артикул

Название

Примечание

Количество

1

601986R1

POINT

2" reversible chisel

1шт.

3

594545R1

SHOVEL

3" twisted LH

1шт.

4

594546R1

SHOVEL

3" twisted RH

1шт.

5

133766A1

SWEEP

10"

1шт.

5

133767A1

SWEEP

12"

1шт.

6

133768A1

SWEEP

14"

1шт.

6

248524A1

SWEEP

SWEEP, 5/16",14", 50 DEG.

1шт.

7

133769A1

SWEEP

16"

1шт.

7

248525A1

SWEEP

SWEEP, 5/16",16", 50 DRG.

1шт.

7

133770A1

SWEEP

18"

1шт.

8

602595R3

SHOVEL

4 1/2" reversible

1шт.

10

87021837

PLOW BOLT

1/2"-13 x 2 1/2", G5

1шт.

10

280131

PLOW BOLT,#3, 1/2" - 13 x 2 1/4", Gr 5

1шт.

Sweep only on 1 1/4" x 2", 50 degree shank or sweep with single shoot banding/seeding boot on 1" x 2", 50 degree shank or reversible spike on 1" x 2 " shank

1шт.

10

280970

PLOW BOLT,#3, 1/2" - 13 x 2", Gr 5

1шт.

Sweep only on 1" x 2" 50 degree shank

1шт.

10

419-2844

PLOW BOLT,#3, 1/2" - 13 x 2 3/4", Gr 5

1шт.

Sweep with single shoot banding/seeding boot on 1 1/4" x 2", 50 degree shank

1шт.

11

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

280431

NUT,1/2"-13, G5

1шт.

Выбрано товаров: 21
