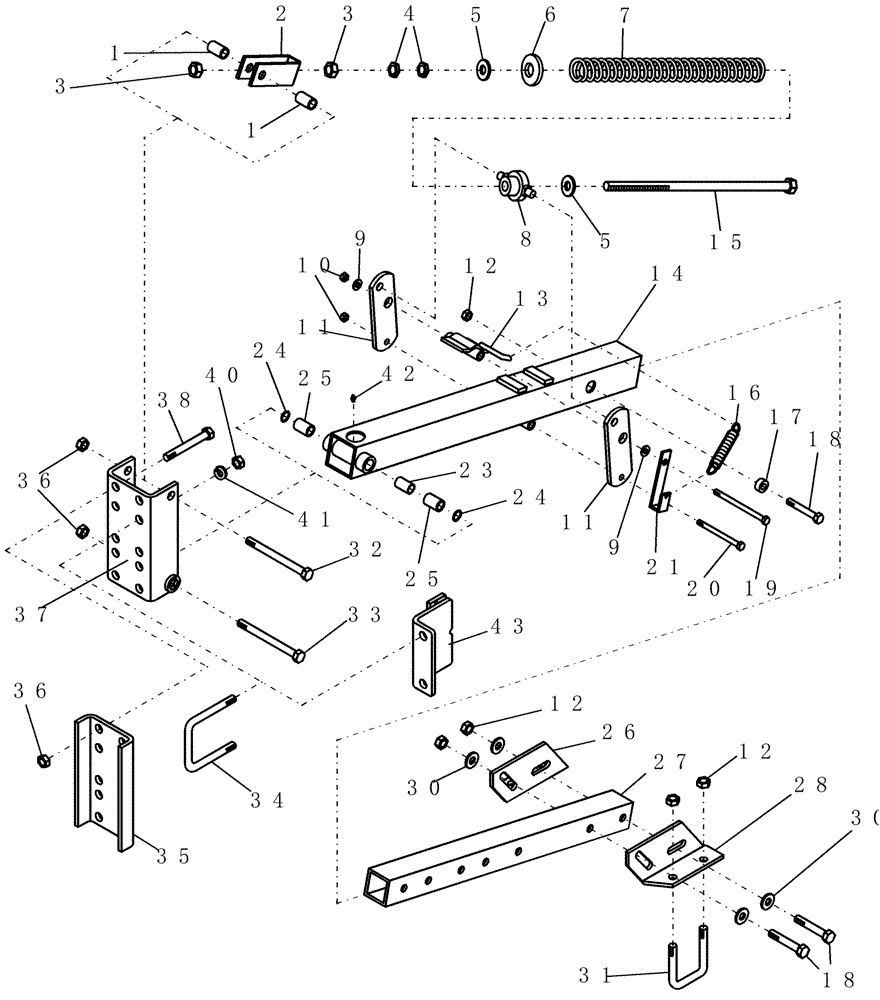

Запчасти Case IH 600 (75.200.27) - HARROW MOUNT ARM WITH ADJUSTABLE LENGTH ARM (75) - SOIL PREPARATION

1

HM-273

SPACER

tension rod clevis

2шт.

2

87420085

CLEVIS

tension rod

1шт.

3

280954

NUT,3/4"-10, G5

2шт.

4

86632557

JAM NUT,Jam, 3/4"-10, G5

2шт.

5

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

6

87523793

SPRING CUP

1шт.

7

87506301

SPRING

compression .375" Wire x 2.41" OD x 14" long

1шт.

8

87506248

TRUNNION

spring

1шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

10

86992215

LOCK NUT,1/2"-13, GC

2шт.

11

HM-277

SIDE PLATE

flipper latch

2шт.

12

85700693

NUT,5/8" - 11, Gr C

5шт.

13

HM-276

LATCH

flipper

1шт.

14

HM-202V2

TUBE

female mount - adjustable length arm

1шт.

15

9509

BOLT,Hex, 3/4" - 10 x 18 3/4", Gr 5

1шт.

16

24332

TENSION SPRING

.092" wire x .85" od x 2 1/2" long

1шт.

17

HM-231

SPACER

male tube lock

1шт.

18

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

, Years: -01-APR-09

3шт.

18

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

, Start Year: 01-APR-09

3шт.

19

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

20

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

21

HM-212

LEVER

latch

1шт.

23

HM-218

BUSHING

spacer

1шт.

24

3930

O-RING

3/4" id x 1/8" w

2шт.

25

3929

BUSHING

tension 1" x 3/4" x 1 1/2" long

2шт.

26

HM-224

PLATE

pitch adjustment RH

1шт.

27

HM-222V2

TUBE

male mounting

1шт.

28

HM-226

PLATE

pitch adjustment LH

1шт.

30

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

31

3934

U-BOLT

us 5/8"-11 x 3 1/16" w x 4 3/8" deep, G5

1шт.

32

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

1шт.

33

4517

BOLT

3/4"-10 x 6 1/2", G5, 1" thread length

1шт.

34

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

1шт.

35

HM-272

PLATE

for 3/4" bolts

1шт.

36

280375

NUT,3/4"-10, GC

3шт.

37

HM-271

BRACKET

mount, harrow arm

1шт.

38

86507002

BOLT,Hex, 3/4"- 10 x 5 1/2", Gr 5

1шт.

40

280954

NUT,3/4"-10, G5

2шт.

41

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

42

88775

LUBE NIPPLE,1/4"-28

1шт.

43

NW-924

HOOK

mount, offset

1шт.
