Запчасти Case IH 600 (75.200.15) - MOUNTED PACKER/HARROW MAIN ARM AND MOUNT ASSEMBLY (75) - SOIL PREPARATION

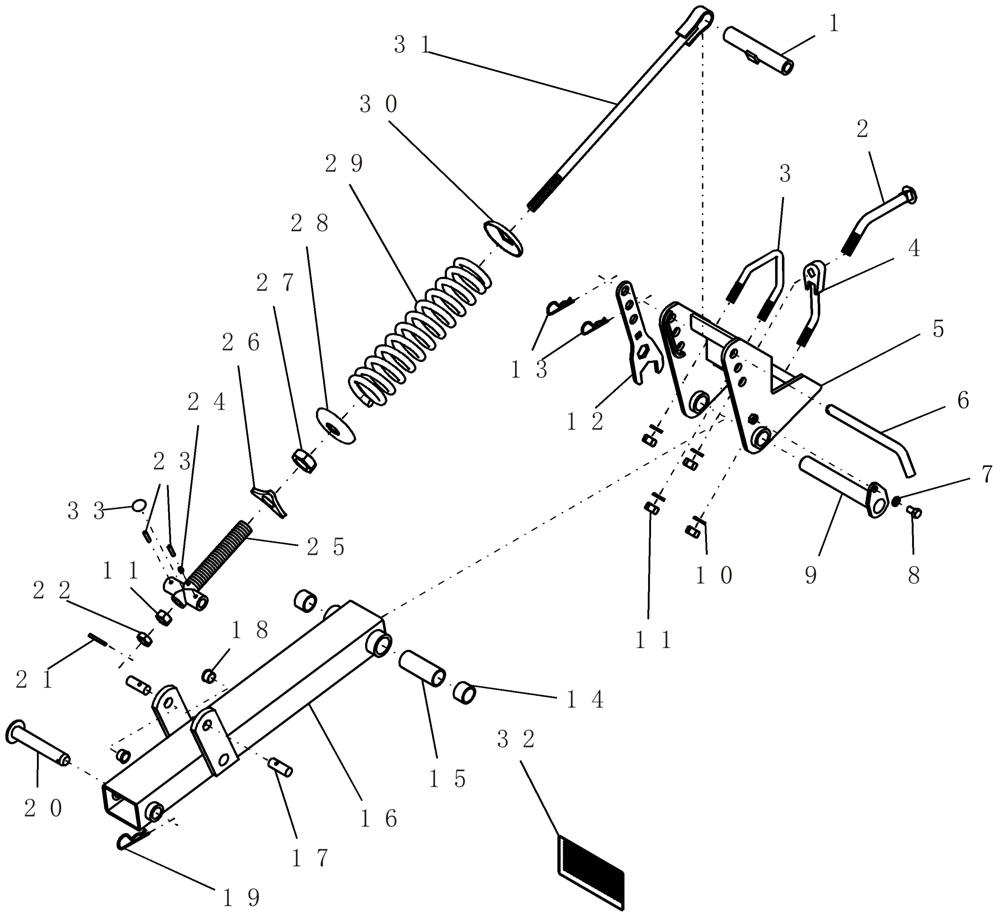

Схема запчастей Case IH 600 - (75.200.15) - MOUNTED PACKER/HARROW MAIN ARM AND MOUNT ASSEMBLY (75) - SOIL PREPARATION
1
18
33
16
2
6
12
15
24
11
10
20
8
23
31
25
29
17
28
14
30
22
9
26
7
21
3
13
32
5
19
27
11
4

Артикул

Название

Примечание

Количество

1

PM-460

PIVOT

top pin

1шт.

2

PM-521

SPECIAL BOLT

v-clamp, bent

1шт.

3

6712

U-BOLT

v 3/4"-10 x 4", G5 extended

1шт.

4

PM-523

EYEBOLT

bent

1шт.

5

PM-470V2

ARM

mount

1шт.

6

PM-458

PIN

top adjustment

1шт.

6

PM-459

PIN

extended top

1шт.

Not Shown

1шт.

For use with 87506279

1шт.

7

81547

LOCK WASHER,7/16"

1шт.

8

280244

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

1шт.

9

PM-472

PIVOT

main pin

1шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

11

280954

NUT,3/4"-10, G5

1шт.

12

87506279

ADJUSTING WRENCH

mounted packer

1шт.

13

87045537

HAIR PIN COTTER

.148 x 3 5/16"

1шт.

14

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

1шт.

15

PM-451

BUSHING

spacer tube

1шт.

16

PM-450A

ARM

main, assembly

1шт.

Includes PM-451 and two of 6636

1шт.

16

PM-450

ARM

main

1шт.

17

PM-465

PIVOT PIN

trunnion

1шт.

18

8446

BUSHING,19.07mm ID x 22.28mm OD x mm L

flanged Oilite .751" id x .877" od x 1/2" long

1шт.

19

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

20

PM-455

LOCK PIN

extension

1шт.

21

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

22

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

23

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

24

88775

LUBE NIPPLE,1/4"-28

1шт.

25

PM-453V2

SPRING

trunnion

1шт.

26

PM-456

NUT

star

1шт.

27

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

28

PM-466

CUP

spring, lower

1шт.

29

87506253

COMPRESSION SPRING

9/16" x 3 9/16" x 13 3/4"

1шт.

30

PM-467

CUP

spring, upper

1шт.

31

PM-454V2

ROD

height adjustment

1шт.

32

PM-480.01

DECAL

arm spring pressure

1шт.

33

6566

DECAL

grease 50 hours

1шт.

Выбрано товаров: 38
