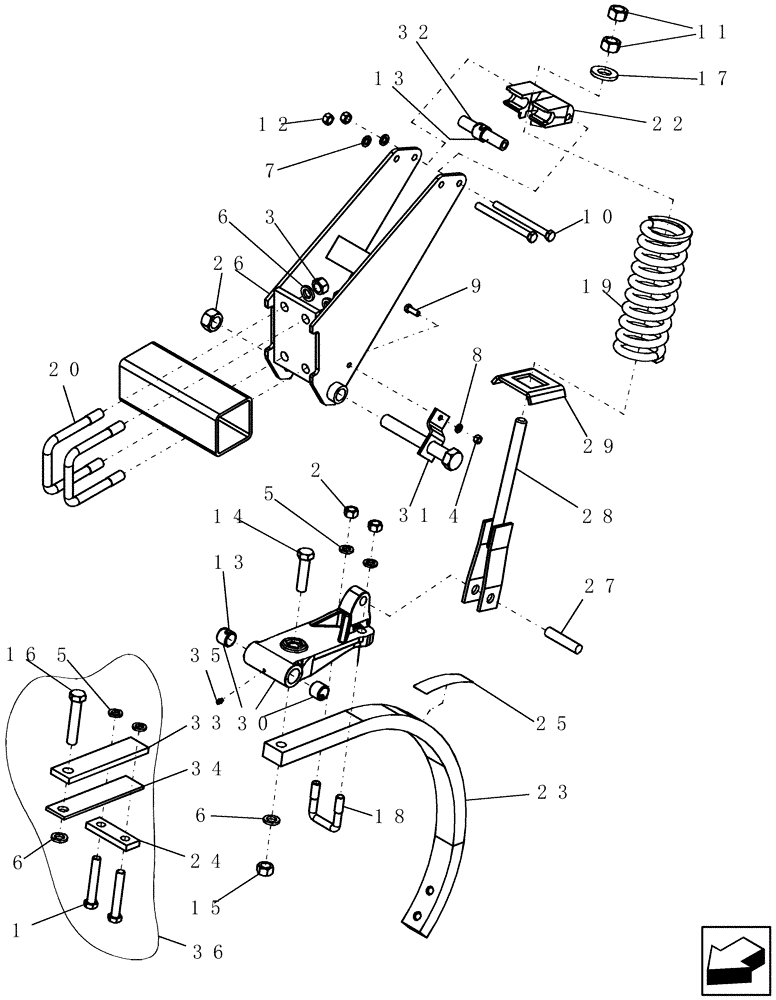

Запчасти Case IH 600 (75.200.12) - 650 POUND RELEASE TRIPS AND SHANKS (75) - SOIL PREPARATION

0

87417151

TRIP

assembly, 650 lb

1шт.

Does not include shank or mounting hardware

1шт.

1

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

2

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

3

280954

NUT,3/4"-10, G5

4шт.

4

9628503

NUT,3/8"-16, G5

1шт.

5

12034871

WASHER

5/8"

4шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

280470

BOLT,Hex, 1/2" - 13 x 6", Gr 8

2шт.

11

9849647

NUT,7/8"-9, G5

2шт.

12

5794

NUT

1/2"-13 L9

2шт.

13

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

14

86512049

BOLT,Hex, 3/4" - 16 x 3", Gr 8

1шт.

15

9823966

NUT,3/4"-16, G8

1шт.

16

88736

BOLT,Hex, 3/4" - 16 x 4", Gr 8

1шт.

17

3851

WASHER

1 1/16" id x 2 1/18" od x 1/4" thick

1шт.

18

4537

U-BOLT

us 5/8"-11 2w for 2'' wide shank

1шт.

19

87506254

SPRING

c 5/8"w x 2 27/32" id 14 3/4"

1шт.

20

7818

U-BOLT

us 3/4"-10 x 4 1/32" wide x 5 5/8" deep

1шт.

22

87506255

CASTING

roller spring crown

1шт.

23

87506408

SHANK

10-50º 1 1/4" x 2"

1шт.

24

CC-117

MOUNTING PLATE

for 5/8" bolts

1шт.

25

NW-500.05

DECAL

compressed spring

2шт.

26

TC-349K

KIT

mounting channel, 650 lb trip assembly

1шт.

27

TC-303

PIN

saddle

1шт.

28

TC-304

LINK

tension

1шт.

29

TC-307

SADDLE

trip spring

1шт.

30

87417150

PIVOT

shank head, 650 lb trip

1шт.

Includes two 64601C1, 80714, 87417149

1шт.

31

TC-309K

KIT

650 lb trip pivot bolt

1шт.

Not Shown

1шт.

Includes 1543, 2115, 3519, 5153 and TC-309

1шт.

32

TC-310

ROLLER

spring crown

1шт.

33

TC-352

SHIM

1/2"

1шт.

34

TC-353

SHIM

1/4"

1шт.

35

88775

LUBE NIPPLE,1/4"-28

1шт.

36

TC-352K

SHIM KIT

650 lb and rigid shank trip

1шт.

100

TP-950K

KIT

compressor, spring service tool

1шт.

Not Shown

1шт.

Refer to Trip Compressor page for details

1шт.
