(75.200.05) - DUAL ENDMARKER MOUNT KIT, 37 - 41 MODELS

Запчасти Case IH 600 (75.200.05) - DUAL ENDMARKER MOUNT KIT, 37 - 41 MODELS (75) - SOIL PREPARATION

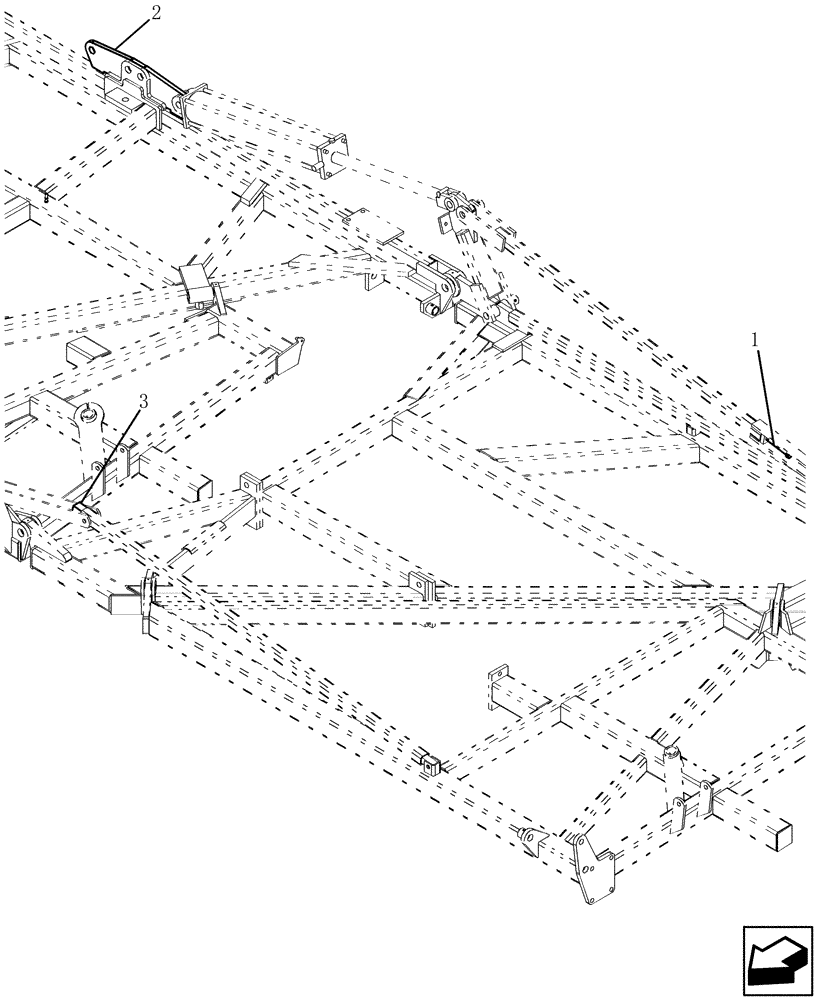

Схема запчастей Case IH 600 - (75.200.05) - DUAL ENDMARKER MOUNT KIT, 37 - 41 MODELS (75) - SOIL PREPARATION
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

NW-427K

KIT

dual endmarker mount 37'

1шт.

Includes NW-427, two of NW-493, two of 413-12104, and 87024587

1шт.

1

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

2шт.

2

NW-427

BRACKET

mount, cylinder, For 13' center section, 114º

1шт.

3

NW-493

EXTENSION

front wing rest

2шт.
