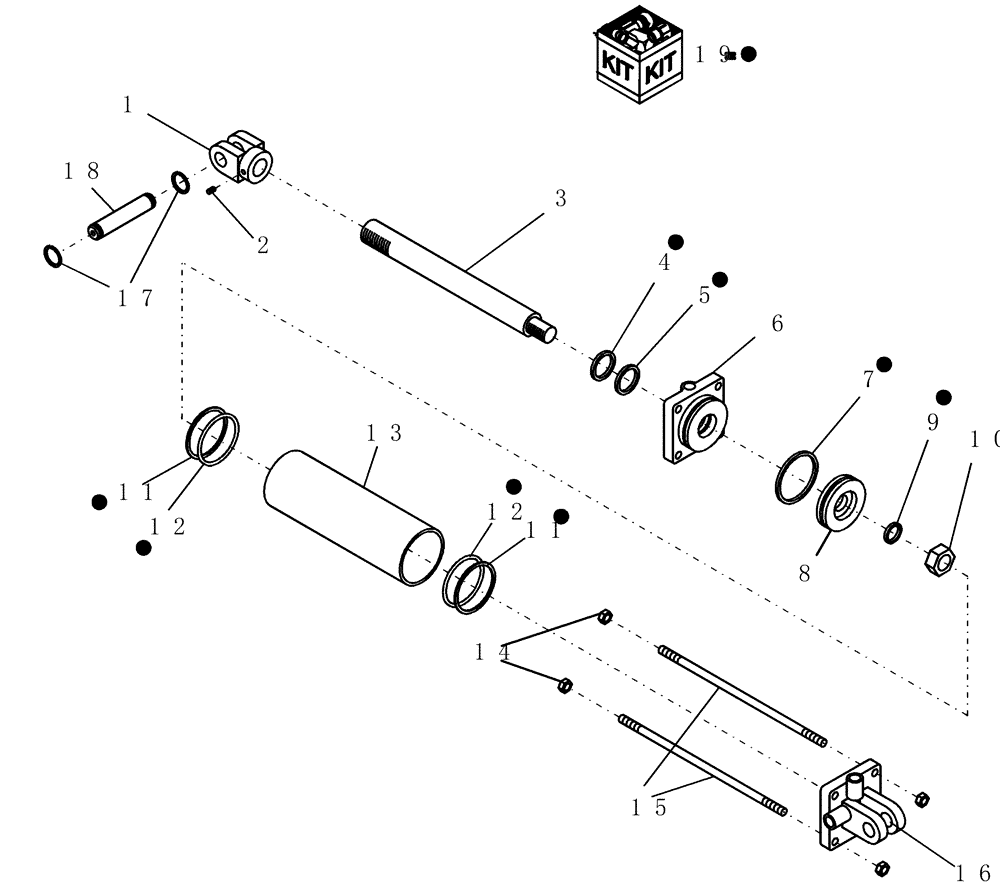

Запчасти Case IH 600 (75.200.03) - ENDMARKER HYDRAULIC CYLINDER 2" X 12" - 2500 PSI (75) - SOIL PREPARATION

0

87500855

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2" x 12" Monarch 2500 psi without pins

1шт.

1

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

2

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

3

439279A1

PISTON ROD

2 1/2" x 12" Monarch

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 8179

1шт.

5

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 8179

1шт.

6

8178

CAP

cylinder rod end 2" dia x 1 1/8" shaft

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING PISTON

1шт.

Included in repair kit 8179

1шт.

8

3977

PISTON

cylinder, 2 Monarch #492430

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING ROD

1шт.

Included in repair kit 8179

1шт.

10

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 8179

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 8179

1шт.

13

2684

HYD TUBE

cylinder, 2" x 12" Monarch

1шт.

14

9628503

NUT,3/8"-16, G5

8шт.

15

8181

TIE-ROD

threaded cylinder 3/8" x 12"

4шт.

16

8177

CLEVIS

cylinder end 2" dia

1шт.

17

136-62

HAIR PIN COTTER

external 3/4" id x 2"

4шт.

18

1945

PIN

cylinder, 1 x 3 ul snap ring grv

2шт.

19

8179

SEAL KIT

2d & 1 1/8" rod Monarch #639572

1шт.
