Запчасти Case IH 600 (55.404.01) - SAFETY/TRANSPORT LIGHTING ELECTRICAL ASSEMBLY (55) - ELECTRICAL SYSTEMS

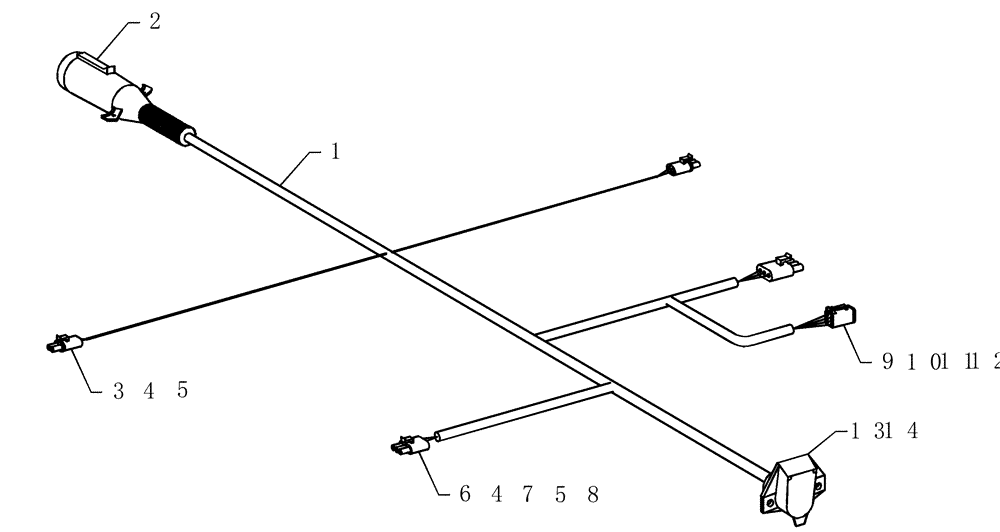

Схема запчастей Case IH 600 - (55.404.01) - SAFETY/TRANSPORT LIGHTING ELECTRICAL ASSEMBLY (55) - ELECTRICAL SYSTEMS
3
13
11
2
5
7
5
8
9
4
14
1
6
4
10
12

Артикул

Название

Примечание

Количество

1

425280A1

HARNESS

lighting, tillage

1шт.

2

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

Includes 481849C1

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

4

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

6шт.

5

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

7

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

4шт.

8

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

9

51200043

ELEC CONNECTOR,6 Pin

Plastic 6c Plug

1шт.

10

51200044

STOP LOCK

6c plug connector

1шт.

12

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

5шт.

13

412766A1

MULTIPOLE CONNECTOR

metal 7c receptacle

1шт.

14

481849C1

PROTECTIVE COVER

rubber boot

1шт.

100

425288A1

CLAMP

cable - 3/4" id

1шт.

Not Shown

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

Выбрано товаров: 17
