Запчасти Case IH 600 (44.100.07) - WHEEL STANDARD (WING) ASSEMBLY (44) - WHEELS

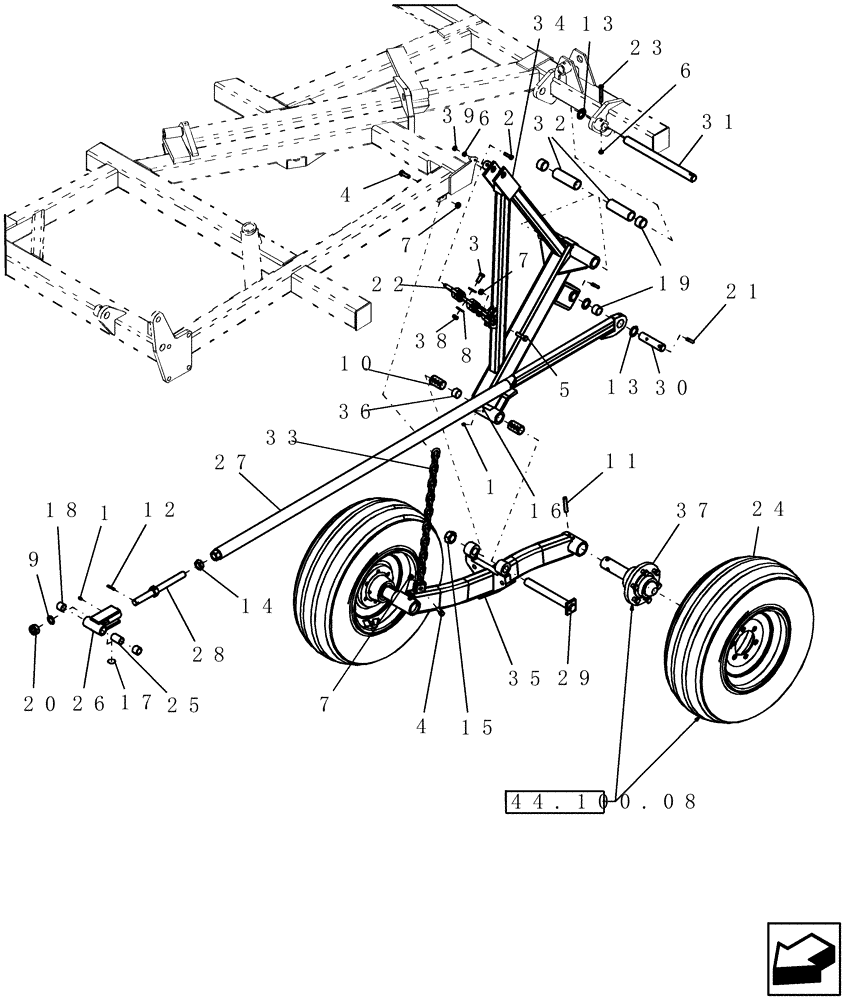

Схема запчастей Case IH 600 - (44.100.07) - WHEEL STANDARD (WING) ASSEMBLY (44) - WHEELS
28
16
39
38
4
1
32
24
10
12
31
13
2
22
35
6
25
3
34
18
33
5
29
17
44.100.08
7
20
7
8
23
4
36
19
21
30
1
26
7
14
9
6
11
13
27
37
15

Артикул

Название

Примечание

Количество

1

88775

LUBE NIPPLE,1/4"-28

4шт.

2

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

3

413-920

BOLT,Hex, 9/16" - 12 x 1-1/4", Gr 5

4шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

5

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

6

88902

NUT,3/8"-16

4шт.

7

86992215

LOCK NUT,1/2"-13, GC

2шт.

8

18606

WASHER,0.62" ID x 1.47" OD x 0.11" Thk

8шт.

9

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

10

3498

BUSHING

tension 1 1/2" x 1 1/4" x 2 1/2" long

2шт.

12

9632

ROLL PIN

1/4" x 1 1/2"

1шт.

13

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

3шт.

14

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

15

87323802

NUT

1 1/4"-12, GB

1шт.

16

6566

DECAL

grease 50 hours

1шт.

17

6567

DECAL

grease 200 hours

1шт.

18

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

19

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

3шт.

20

7827

SLOTTED NUT,1"-8, G2

1шт.

21

438-22432

LOCK PIN,9.53mm OD x 50.8mm L, Coiled

2шт.

22

87502332

CHAIN

link 17/32" x 16 1/2" GR30 6 links

1шт.

23

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

1шт.

24

NSS

NOT SOLD SEPARAT

Wheel, tire and valve assemblies are not sold separately

2шт.

26

NW-341

ADJUSTER

depth link

1шт.

27

NW-342

LINK

tension, depth control

1шт.

28

NW-343

STUD,25.4mm OD x 304.8mm L

depth link adjuster

1шт.

29

NW-455

BOLT

1 1/4"-12 x 10 1/2"

1шт.

30

NW-470

PIN

1 1/4" x 5 1/4"

1шт.

31

NW-472

PIN,31.75mm OD x 419.1mm L

1 1/4" x 16 1/2"

1шт.

32

87503704

SPACER

plastic 1.485 od x 1.265 id x 5.315 long

2шт.

33

NW-577

CHAIN

lk 3/8" x 26 1/2" lg 19 link

1шт.

34

NW-657

ARM

wheel wing

1шт.

35

NW-858

BEAM

walk, LH wing

1шт.

36

NW-506V2

SPACER

1 7/16" od x 7/8" long

1шт.

37

NW-614A

HUB

and spindle assembly, H615

2шт.

Includes hub, spindle, dust cap. bearings, seals and wheel bolts

1шт.

Refer to 44.100.08

1шт.

38

280328

NUT,9/16"-12, GB

4шт.

39

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

Выбрано товаров: 39
