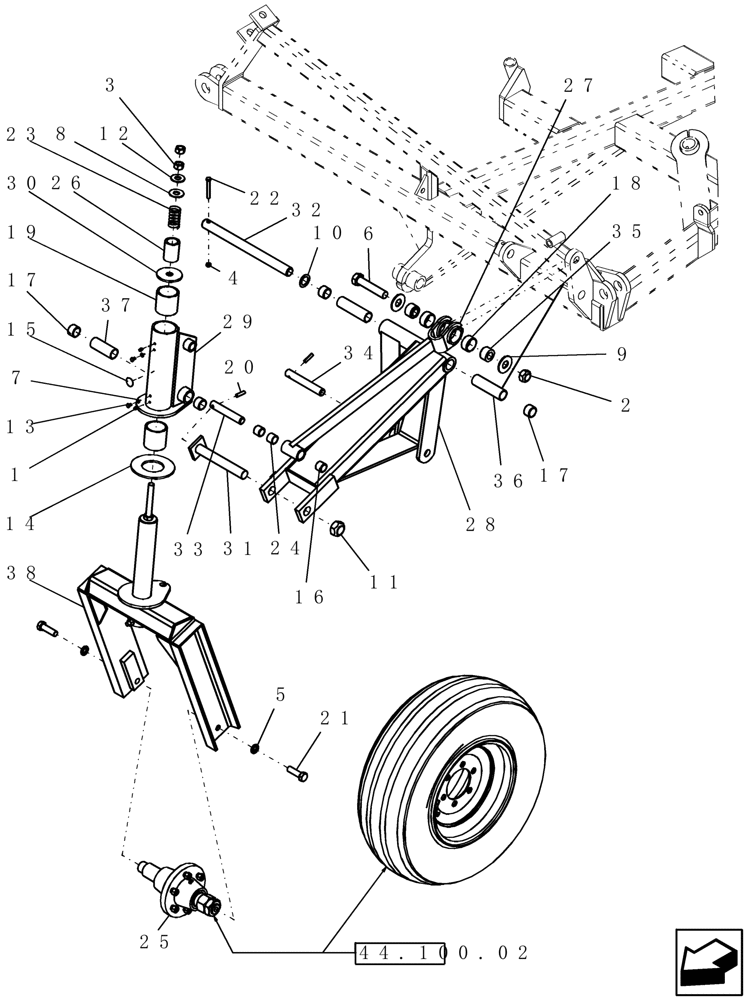

Запчасти Case IH 600 (44.100.01) - CASTER ASSEMBLY (44) - WHEELS

1

88775

LUBE NIPPLE,1/4"-28

2шт.

2

280286

NUT,1"-8, GB

1шт.

3

280954

NUT,3/4"-10, G5

2шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

6

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

1шт.

7

80682

LOCK WASHER,1/4"

2шт.

8

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

9

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

10

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

1шт.

11

87323802

NUT

1 1/4"-12, GB

1шт.

12

87326968

WASHER,0.81" ID x 1.88" OD x 0.11" Thk

brass 13/16" id 1 5/64" 7/64"

1шт.

13

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

14

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

15

6566

DECAL

grease 50 hours

1шт.

16

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

17

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

4шт.

18

6637

BUSHING

composite 2" x 1 3/4" x 1"

2шт.

19

6879

BUSHING

2.536" id x 2.994" od x 3" long

2шт.

20

425291A1

ROLL PIN

3/8" x 1 1/2" spiral

2шт.

21

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

22

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

1шт.

23

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

23

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

24

DR-712

SPACER,25.78mm ID x 31.37mm OD x 23.82mm L

plastic 1 1/4" od x 3/32" thick x 15/16" long

1шт.

25

GD-161A

HUB

and spindle assembly H617-14.44" long, thru hub

1шт.

Refer to 44.100.02

1шт.

26

ND-949

SLEEVE,38.1mm ID x 69.85mm L

hose spring

1шт.

27

NW-103

ARM

parallel, upper front

1шт.

28

NW-349

ARM

parallel, lower RH

1шт.

28

NW-348

ARM

parallel, lower LH

1шт.

29

NW-350

HOUSING

caster

1шт.

Includes two 6636 and NW-508

1шт.

30

NW-354

CAP

caster housing

1шт.

31

NW-456

BOLT

1 1/4"-12 x 8 7/8"

1шт.

32

NW-472

PIN,31.75mm OD x 419.1mm L

1 1/4" x 16 1/2"

1шт.

33

NW-480

PIN

housing upper - 1" x 5 3/4"

1шт.

34

NW-481

PIN

1" x 6 3/4"

1шт.

35

NW-494

SPACER

1" x 1 3/4" x 1"

2шт.

36

87503704

SPACER

plastic 1.485 od x 1.265 id x 5.315 long

2шт.

37

NW-508

SPACER

plastic 1 1/2" od x 3 7/8" long

1шт.

38

NW-651

FORK

caster

1шт.
