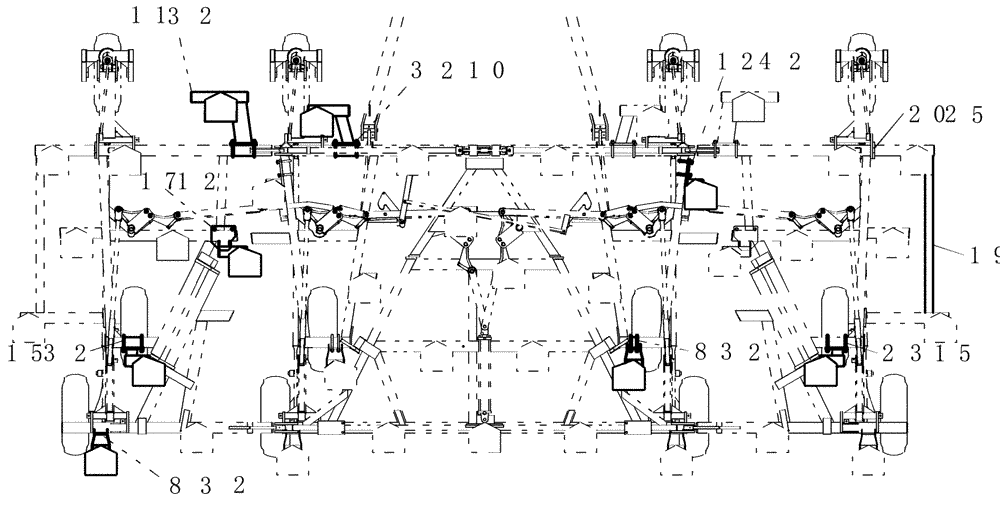

Запчасти Case IH 600 (39.100.19) - ALTERNATE 9" SPACING STUBS FOR AUSTRALIA (39) - FRAMES AND BALLASTING

1

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

2

280375

NUT,3/4"-10, GC

1шт.

3

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

1шт.

4

7069

U-BOLT

us 3/4"-10 x 4 1/32" x 4 3/4", G5

1шт.

5

432497A1

FRAME

stub outer front

1шт.

6

432509A1

FRAME

stub stanoff L shaped

1шт.

7

432498A1

FRAME

stub standoff 8 1/4" offset

1шт.

8

NW-580

BEAM

walk, stub

1шт.

9

432510A1

FRAME

stub 9' wing

1шт.

10

432511A1

FRAME

stub center common

1шт.

11

432512A1

FRAME

stub 16' center

1шт.

12

432513A1

FRAME

stub center

1шт.

13

432514A1

FRAME

stub 12' wing

1шт.

14

432515A1

FRAME

stub 9' inner

1шт.

15

432516A1

FRAME

stub offset 6' wing

1шт.

16

432517A1

FRAME

stub 12' inner wing

1шт.

17

432518A1

FRAME

stub 6' wing

1шт.

19

432524A1

FRAME

international extension 9" spacing

1шт.

19

432522A1

FRAME

international C shape for 7.2" spacing

1шт.

20

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.
