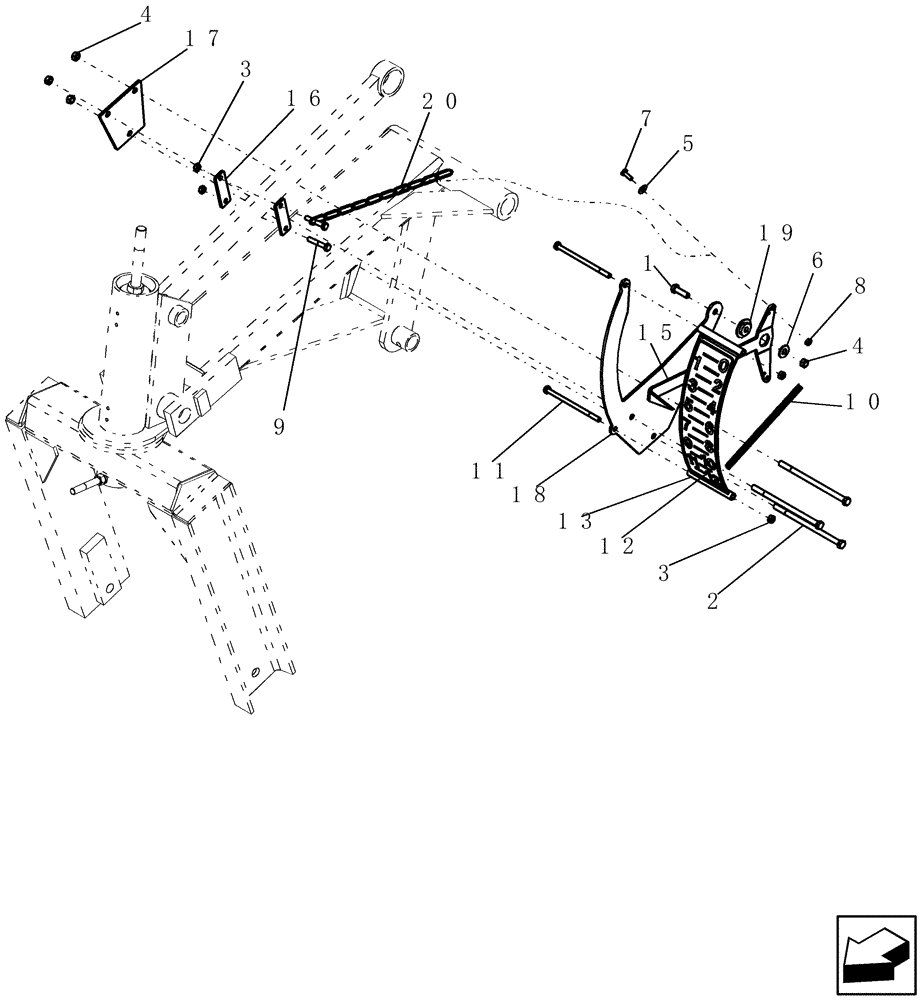

Запчасти Case IH 600 (39.100.18) - DEPTH GAUGE INDICATOR (39) - FRAMES AND BALLASTING

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

2

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

3шт.

3

281010

LOCK NUT,7/8"-14, GC

4шт.

4

88902

NUT,3/8"-16

4шт.

5

95-21031

WASHER,1/4"

1шт.

6

5271

WASHER,0.44" ID x 1.75" OD x 0.08" Thk

7/16" id 1 3/4" 5/64"

1шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

8

280129

NUT,1/4"-20

1шт.

9

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

10

432602A1

TENSION SPRING

1/16" wire 1/2" od 7 1/2"s.s stainless steel

1шт.

11

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

2шт.

12

NW-500.07

DECAL

0 - 12 depth gauge

1шт.

13

NW-590

GAUGE

faceplate depth

1шт.

Includes NW-500.07

1шт.

15

NW-591

GAUGE

indicator depth

1шт.

16

NW-592

GAUGE

mount, depth chain, short

2шт.

17

NW-593

BACKING PLATE

gauge depth

1шт.

18

NW-594

GAUGE

mount plate depth

1шт.

19

NW-596

BUSHING

nylon depth indicator

1шт.

20

NW-598

CHAIN

lk 1/8" 11 link

1шт.
