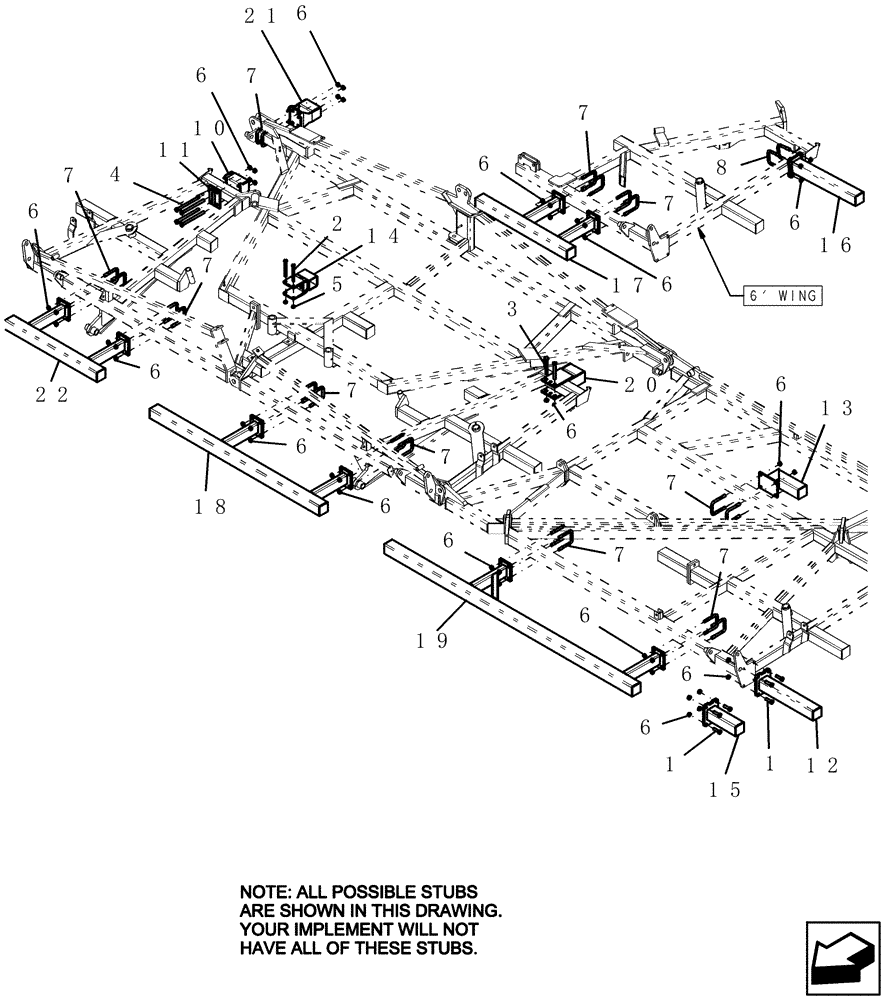

Запчасти Case IH 600 (39.100.16) - STUBS FOR CULTIVATOR (39) - FRAMES AND BALLASTING

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.

2

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

3

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

4

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

4шт.

5

85700693

NUT,5/8" - 11, Gr C

2шт.

6

280375

NUT,3/4"-10, GC

58шт.

7

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

20шт.

8

7069

U-BOLT

us 3/4"-10 x 4 1/32" x 4 3/4", G5

2шт.

10

ND-517

BRACKET

standoff, tire clearance

1шт.

11

ND-518V2

PLATE

bolt, 4 hole

1шт.

12

432497A1

FRAME

stub outer front

1шт.

13

432509A1

FRAME

stub stanoff L shaped

1шт.

14

NW-443

FRAME

standoff stub - short

1шт.

15

432470A1

FRAME

stub outer front short

1шт.

16

432496A1

FRAME

stub side mount 6' wing

1шт.

17

432500A1

FRAME

7.2" mount bar (2 trips)

1шт.

18

432504A1

FRAME

7.2" mount bar (3 trips)

1шт.

19

432506A1

FRAME

7.2" mount bar (4 trips)

1шт.

20

432498A1

FRAME

stub standoff 8 1/4" offset

1шт.

21

NW-580

BEAM

walk, stub

1шт.

22

432502A1

FRAME

7.2" mount bar, center (2 trips)

1шт.

100

NW-922

FRAME

stub harrow arm

1шт.

Not Shown

1шт.
