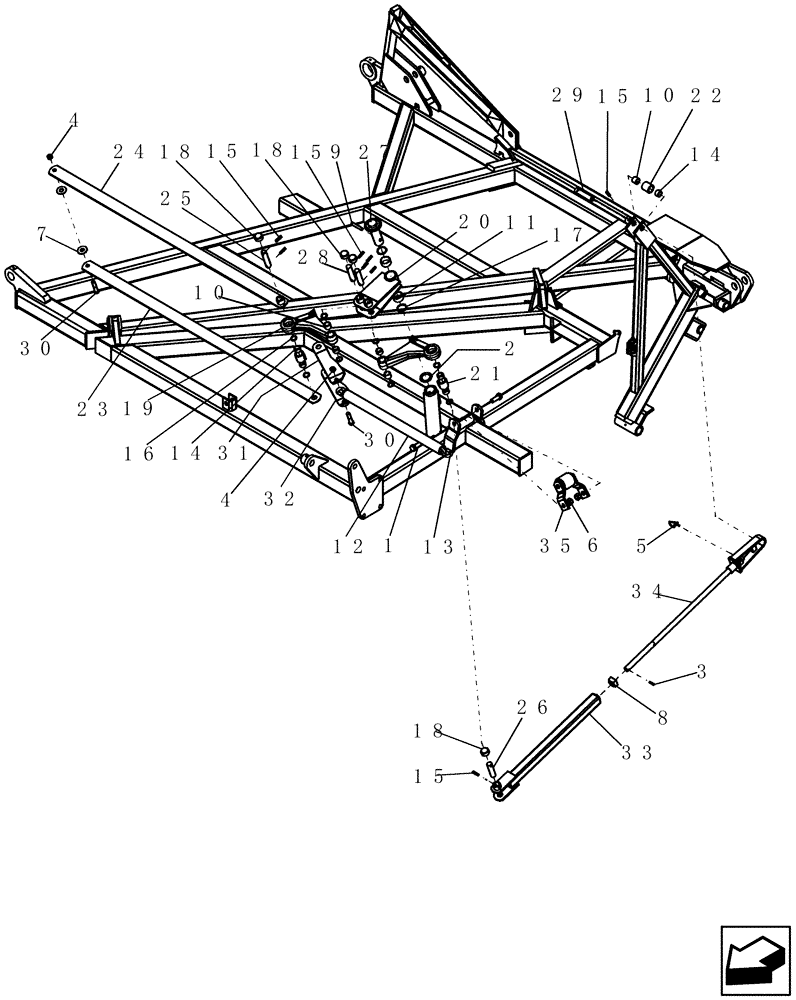

Запчасти Case IH 600 (39.100.14) - DEPTH CONTROL (INNER WING) ASSEMBLY (39) - FRAMES AND BALLASTING

1

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

2

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

1шт.

3

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

4

85700693

NUT,5/8" - 11, Gr C

2шт.

5

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

6

280375

NUT,3/4"-10, GC

2шт.

7

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

8

3579

SQUARE NUT

square 1"-8

1шт.

9

4770

ROLL PIN

1/2" x 3"

1шт.

10

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

11

6637

BUSHING

composite 2" x 1 3/4" x 1"

2шт.

12

7903

HOSE,2.00" ID x 28.00"

Water Discharge

1шт.

13

7982

CHAIN

lk 1/2" gr43 19 link

1шт.

14

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

6шт.

15

425291A1

ROLL PIN

3/8" x 1 1/2" spiral

8шт.

16

121189

OIL SEAL

1 1/4" od x 1/8" thick

8шт.

17

8059

SEAL,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2" od x 1/8" thick

2шт.

18

8060

CAP

vinyl 1 1/2" x 3/4"

4шт.

19

NW-332

ROCKER

depth crank with bushings

2шт.

Includes 6635 and 7995

1шт.

20

NW-333

CRANK

depth with bushings

1шт.

Includes two 6637

1шт.

21

NW-334

ARM

weeble with bushing

2шт.

Includes two 7995

1шт.

22

NW-355

SPOOL

wheel standard - upper

1шт.

Includes 7995 and 6635

1шт.

23

NW-398

LINK

depth for 9' wing

1шт.

24

NW-399

LINK

depth for 9' wing c/w pin lock

1шт.

25

NW-452

PIN

1" x 4 9/16"

1шт.

26

NW-453

PIN

1" x 3 7/8"

1шт.

27

NW-464

PIN

1 3/4" x 5 5/8"

1шт.

28

NW-467

PIN

1" x 4 1/4"

2шт.

29

NW-482

PIN

1" x 4 3/4"

1шт.

30

NW-492

BOLT

5/8" x 2" fedalloy

2шт.

31

NW-635

LINK

depth connector LH

1шт.

32

NW-636

LINK

depth connector RH

1шт.

33

NW-703

LOWER LINK

adjuster

1шт.

34

NW-704

ROD

top link assembly

1шт.

35

NW-730

EXTENSION

roller, 5 section models

1шт.

For 43', 45', and 47' models

1шт.
