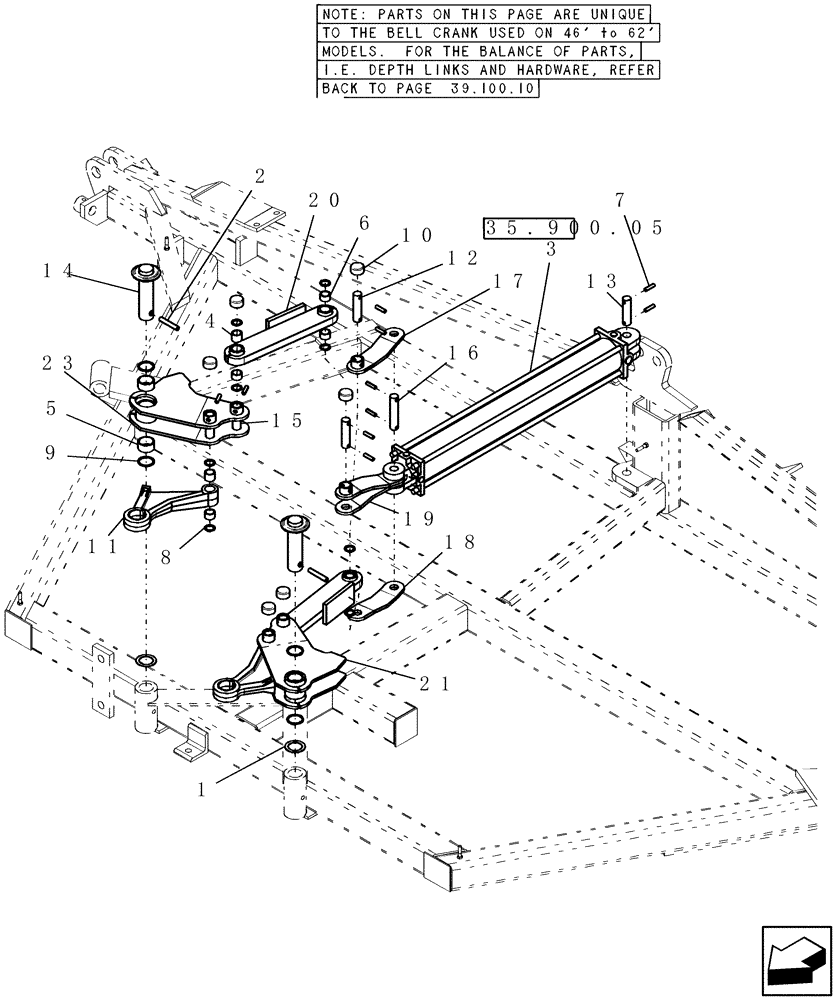

Запчасти Case IH 600 (39.100.11) - DEPTH CRANK BELL ASSEMBLY (CENTER SECTION) ASSEMBLY (46 TO 62 MODELS) (39) - FRAMES AND BALLASTING

1

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

2шт.

2

4770

ROLL PIN

1/2" x 3"

2шт.

3

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

Refer to 35.900.05

1шт.

4

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

4шт.

5

6637

BUSHING

composite 2" x 1 3/4" x 1"

4шт.

6

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

8шт.

7

425291A1

ROLL PIN

3/8" x 1 1/2" spiral

16шт.

8

121189

OIL SEAL

1 1/4" od x 1/8" thick

12шт.

9

8059

SEAL,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2" od x 1/8" thick

4шт.

10

8060

CAP

vinyl 1 1/2" x 3/4"

6шт.

11

NW-332

ROCKER

depth crank with bushings

2шт.

Includes 6635 and 7995

1шт.

12

NW-451

PIN

1" x 4 1/16"

2шт.

13

NW-463

PIN

1" x 3 7/8"

1шт.

14

NW-465

PIN

1 3/4" x 6 5/8"

2шт.

15

NW-467

PIN

1" x 4 1/4"

4шт.

16

NW-712V2

PIN,25.4mm OD x 177.8mm L

1" x 7"

1шт.

17

NW-605

LINK

bellcrank depth

1шт.

18

NW-606

LINK

bottom bellcrank depth

1шт.

19

NW-617

LINK

middle bellcrank depth

1шт.

20

NW-632

LINK

bellcrank

2шт.

Includes 6635 and three of 7995

1шт.

21

NW-633

BELLCRANK

LH

1шт.

Includes two 6637

1шт.

23

NW-634

ROCKER

right

1шт.

Includes two 6637

1шт.
