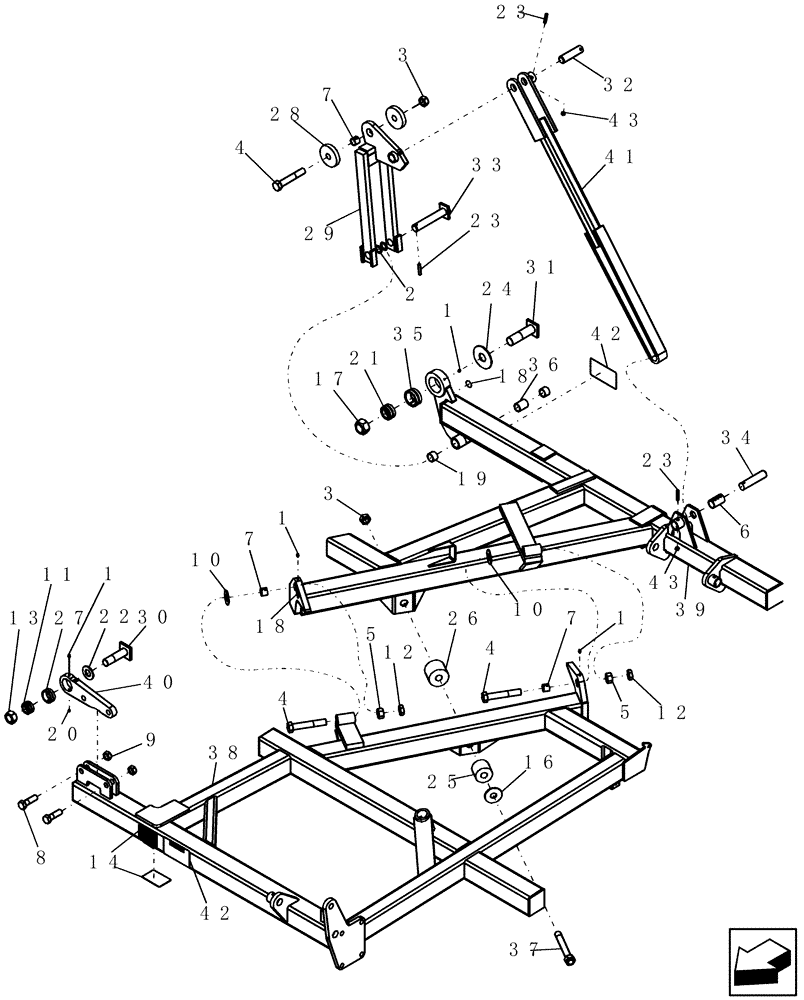

Запчасти Case IH 600 (39.100.09) - 6 FIVE SECTION OUTER WING ASSEMBLY (39) - FRAMES AND BALLASTING

1

88775

LUBE NIPPLE,1/4"-28

4шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

3

280286

NUT,1"-8, GB

2шт.

4

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

3шт.

5

9849633

NUT,1"-8, G5

2шт.

6

3498

BUSHING

tension 1 1/2" x 1 1/4" x 2 1/2" long

1шт.

7

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

8

9845479

BOLT,Hex, 7/8" - 9 x 3", Gr 5

2шт.

9

280658

NUT,7/8"-9, GB

2шт.

10

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

11

5735

SPHERICAL BEARING,31.8mm ID x 50.8mm OD x 27.9mm W

spherical 2" od 1 1/4" id sealed

1шт.

12

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

13

87323802

NUT

1 1/4"-12, GB

1шт.

14

22903

DECAL

retroreflective amber 2" x 9"

2шт.

16

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

1шт.

17

87323803

LOCK NUT

1 1/2"-12, GC

1шт.

18

6566

DECAL

grease 50 hours

2шт.

19

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

20

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

1шт.

21

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

22

432582A1

WASHER,32.26mm ID x 63.5mm OD x 4.78mm Thk

1 17/64" id x 2 1/2" od x 3/16" thick

1шт.

23

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

2шт.

24

432583A1

WASHER

1.52" id x 4.25" od x .188" thick

1шт.

25

CA-136

TUBE

poly 2 3/4" od x 1 1/4" id x 2 1/2" long

1шт.

26

CA-157

PLASTIC-RUBBER TUBE

flex, 1 1/4" id x 3 1/2" od x 2 7/8" long

1шт.

27

DR-935

BUSHING,50.75mm ID x 58.97mm OD x 24.14mm L

mounting shell, spherical - 2" ball

1шт.

28

ND-454

ROLLER

ramp hinge 3/4" x 1" x 4"

2шт.

29

NW-376

LEVER

lift 155º

1шт.

30

NW-449

BOLT

1 1/4"-7 x 4 3/4"

1шт.

31

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

1шт.

32

NW-473

PIN

1 1/4" x 4 3/4"

1шт.

33

NW-474

PIN

1 1/4" x 7 1/8"

1шт.

34

NW-477

PIN

1 1/4" x 5 1/2"

1шт.

35

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

36

NW-507

SPACER

plastic 1 1/2" od x 1 15/16" long

1шт.

37

NW-578

BOLT

1"-8 x 7 5/8"

1шт.

38

432458A1

FRAME

6' front wing LH

1шт.

Includes 64601C1, 22903, 6566 and TC-500.08

1шт.

Shown

1шт.

38

432459A1

FRAME

6' front wing RH

1шт.

Not Shown

1шт.

Includes 64601C1, 22903, 6566 and TC-500.08

1шт.

39

432488A1

FRAME

6' 155º rear wing LH

1шт.

Includes 64601C1, two 6636, 7809, NW-505, NW-507 and TC-500.08

1шт.

Shown

1шт.

39

432489A1

FRAME

6' 155º rear wing RH

1шт.

Not Shown

1шт.

Includes 64601C1, two 6636, 7809, NW-505, NW-507 and TC-500.08

1шт.

40

NW-675

HINGE

male 3 1/4"

1шт.

41

NW-678

LINK

lift 52 1/8" 155º

1шт.

42

TC-500.08

DECAL

raised wings

1шт.

43

88902

NUT,3/8"-16

2шт.
