Запчасти Case IH 600 (39.100.08) - 6 THREE SECTION OUTER WING ASSEMBLY (39) - FRAMES AND BALLASTING

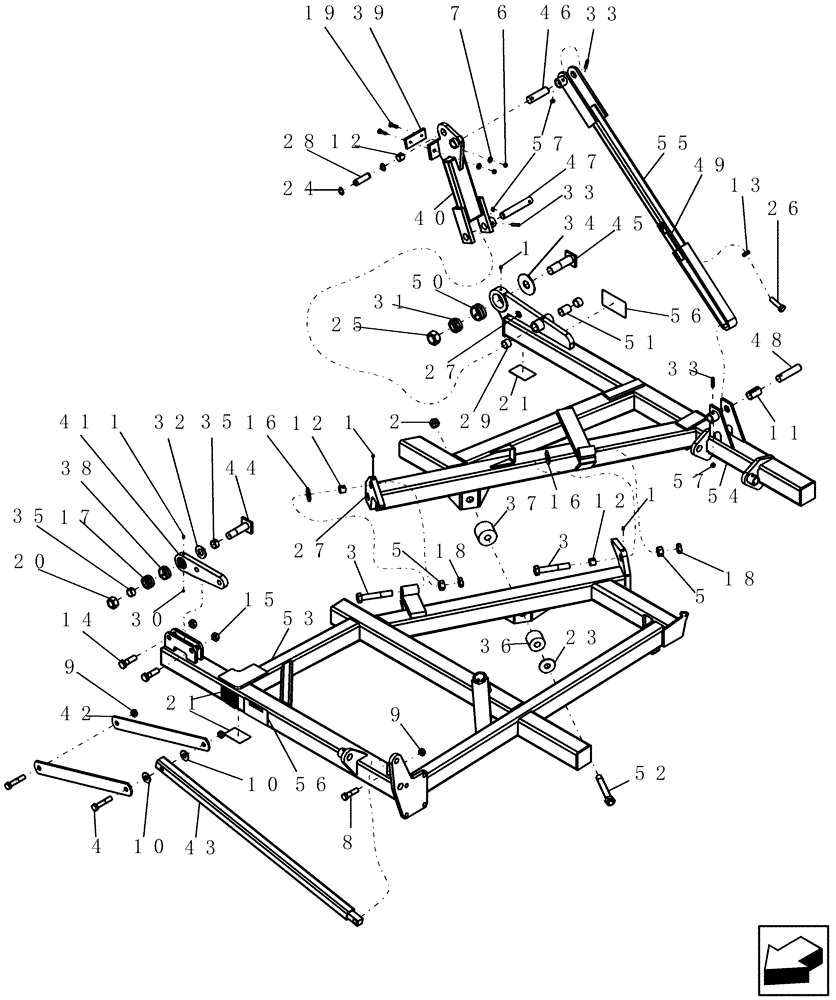

Схема запчастей Case IH 600 - (39.100.08) - 6 THREE SECTION OUTER WING ASSEMBLY (39) - FRAMES AND BALLASTING
45
16
43
12
12
18
8
9
35
3
17
6
31
19
3
1
40
10
57
32
34
29
56
12
41
5
33
5
26
54
47
46
9
1
27
33
20
24
21
15
39
37
18
7
56
55
4
1
51
28
23
38
14
33
27
16
57
49
21
25
44
36
48
1
52
53
42
2
11
35
50
13
30
10

Артикул

Название

Примечание

Количество

1

88775

LUBE NIPPLE,1/4"-28

4шт.

2

280286

NUT,1"-8, GB

1шт.

3

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

2шт.

4

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

5

9849633

NUT,1"-8, G5

2шт.

6

88902

NUT,3/8"-16

2шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

9

280375

NUT,3/4"-10, GC

3шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

11

3498

BUSHING

tension 1 1/2" x 1 1/4" x 2 1/2" long

1шт.

12

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

13

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

14

9845479

BOLT,Hex, 7/8" - 9 x 3", Gr 5

2шт.

15

280658

NUT,7/8"-9, GB

2шт.

16

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

17

5735

SPHERICAL BEARING,31.8mm ID x 50.8mm OD x 27.9mm W

spherical 2" od 1 1/4" id sealed

1шт.

18

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

19

5884

SCREW

cap 3/8"-16 x 1 1/2" blk fh

2шт.

20

87323802

NUT

1 1/4"-12, GB

1шт.

21

22903

DECAL

retroreflective amber 2" x 9"

3шт.

23

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

1шт.

24

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

2шт.

25

87323803

LOCK NUT

1 1/2"-12, GC

1шт.

26

6452

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5, Full Thd

1шт.

27

6566

DECAL

grease 50 hours

3шт.

28

6573

PIN

1" x 3" Usable length, snap ring groove

1шт.

29

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

30

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

1шт.

31

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

32

432582A1

WASHER,32.26mm ID x 63.5mm OD x 4.78mm Thk

1 17/64" id x 2 1/2" od x 3/16" thick

1шт.

33

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3шт.

34

432583A1

WASHER

1.52" id x 4.25" od x .188" thick

1шт.

35

1268053C1

BUSHING,38.1mm ID x 44.45mm OD x 19.05mm L

tension 1 1/2" x 1 1/4" x 3/4" lg

2шт.

36

CA-136

TUBE

poly 2 3/4" od x 1 1/4" id x 2 1/2" long

1шт.

37

CA-157

PLASTIC-RUBBER TUBE

flex, 1 1/4" id x 3 1/2" od x 2 7/8" long

1шт.

38

DR-935

BUSHING,50.75mm ID x 58.97mm OD x 24.14mm L

mounting shell, spherical - 2" ball

1шт.

39

ND-485

BRAKE PAD

caster pivot

1шт.

40

NW-372

LEVER

lift 114º for 13' center section

1шт.

41

NW-675

HINGE

male 3 1/4"

1шт.

Includes 1298, 6667, 5735 and DR-935

1шт.

42

NW-380

LINK

rest, inner

2шт.

43

NW-384

LINK

rest for 9' & 6' wing, 114º

1шт.

44

NW-449

BOLT

1 1/4"-7 x 4 3/4"

1шт.

45

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

1шт.

46

NW-473

PIN

1 1/4" x 4 3/4"

1шт.

47

NW-476

PIN

1 1/4" x 7 1/2"

1шт.

48

NW-477

PIN

1 1/4" x 5 1/2"

1шт.

49

NW-500.06

DECAL

wing lift adjustment

1шт.

50

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

51

NW-507

SPACER

plastic 1 1/2" od x 1 15/16" long

1шт.

52

NW-578

BOLT

1"-8 x 7 5/8"

1шт.

53

432458A1

FRAME

6' front wing LH

1шт.

Includes 64601C1, 22903, 6566 and TC-500.08

1шт.

Shown

1шт.

53

432459A1

FRAME

6' front wing RH

1шт.

Not Shown

1шт.

Includes 64601C1, 22903, 6566 and TC-500.08

1шт.

54

432462A1

FRAME

6' 114º rear wing LH

1шт.

Includes 64601C1, 22903, two 6566, two 6636, 7809, NW-505, NW-507 and TC-500.08

1шт.

Shown

1шт.

54

432461A1

FRAME

6' 114º rear wing RH

1шт.

Not Shown

1шт.

Includes 64601C1, 22903, two 6566, two 6636, 7809, NW-505, NW-507 and TC-500.08

1шт.

55

NW-674

LIFT LINK

55"

1шт.

Includes NW-500.06

1шт.

56

TC-500.08

DECAL

raised wings

1шт.

57

88902

NUT,3/8"-16

3шт.

Выбрано товаров: 68
