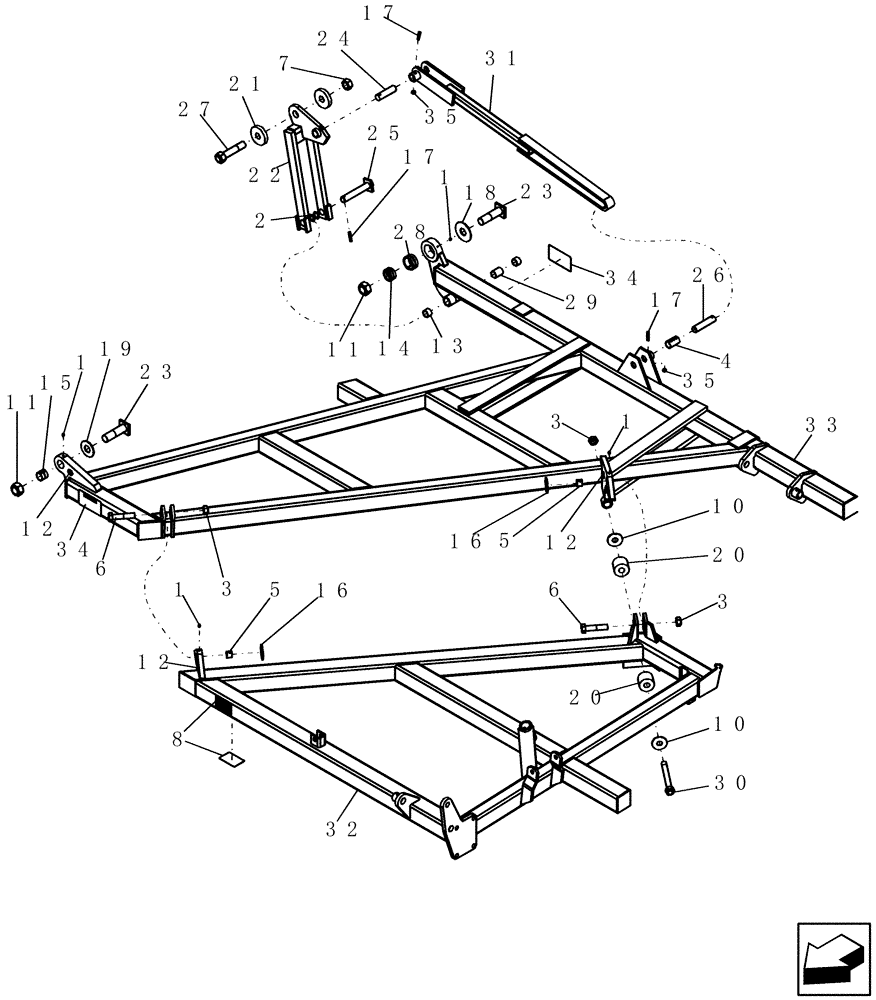

Запчасти Case IH 600 (39.100.07) - 9 FIVE SECTION OUTER WING ASSEMBLY (39) - FRAMES AND BALLASTING

1

88775

LUBE NIPPLE,1/4"-28

4шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

2шт.

3

280286

NUT,1"-8, GB

3шт.

4

3498

BUSHING

tension 1 1/2" x 1 1/4" x 2 1/2" long

1шт.

5

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

6

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

2шт.

7

87323802

NUT

1 1/4"-12, GB

1шт.

8

22903

DECAL

retroreflective amber 2" x 9"

2шт.

10

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

2шт.

11

87323803

LOCK NUT

1 1/2"-12, GC

2шт.

12

6566

DECAL

grease 50 hours

4шт.

13

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

14

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

15

7825

GROOVED BUSHING

tension 1 3/4" x 1 1/2" x 1 1/2" long

1шт.

16

7860

WASHER

1 1/16" id 3 3/16"

2шт.

17

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

2шт.

18

432583A1

WASHER

1.52" id x 4.25" od x .188" thick

1шт.

19

432584A1

WASHER

1.52" id x 3.5" od x .188" thick

1шт.

20

CA-136

TUBE

poly 2 3/4" od x 1 1/4" id x 2 1/2" long

2шт.

21

ND-543

ROLLER

ramp hinge 4" x 1 1/4" x 3/4"

2шт.

22

NW-376

LEVER

lift 155º

1шт.

23

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

2шт.

24

NW-473

PIN

1 1/4" x 4 3/4"

1шт.

25

NW-474

PIN

1 1/4" x 7 1/8"

1шт.

26

NW-477

PIN

1 1/4" x 5 1/2"

1шт.

27

NW-478

BOLT

1 1/4"-7 x 6"

1шт.

28

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

29

NW-507

SPACER

plastic 1 1/2" od x 1 15/16" long

1шт.

30

NW-579

BOLT

1"-8 x 9 1/8"

1шт.

31

NW-678

LINK

lift 52 1/8" 155º

1шт.

32

432465A1

FRAME

9' front wing LH

1шт.

Includes 64601C1 and 6566

1шт.

32

432464A1

FRAME

9' front wing RH

1шт.

Includes 64601C1 and 6566

1шт.

33

432494A1

FRAME

9' 155º rear wing LH

1шт.

Includes 64601C1, three 6566, two 6636, 7809, 7825, NW-505, NW-507, and two TC-500.08

1шт.

33

432495A1

FRAME

9' 155º rear wing RH

1шт.

Includes 64601C1, three 6566, two 6636, 7809, 7825, NW-505, NW-507, and two TC-500.08

1шт.

34

TC-500.08

DECAL

raised wings

2шт.

35

88902

NUT,3/8"-16

2шт.
