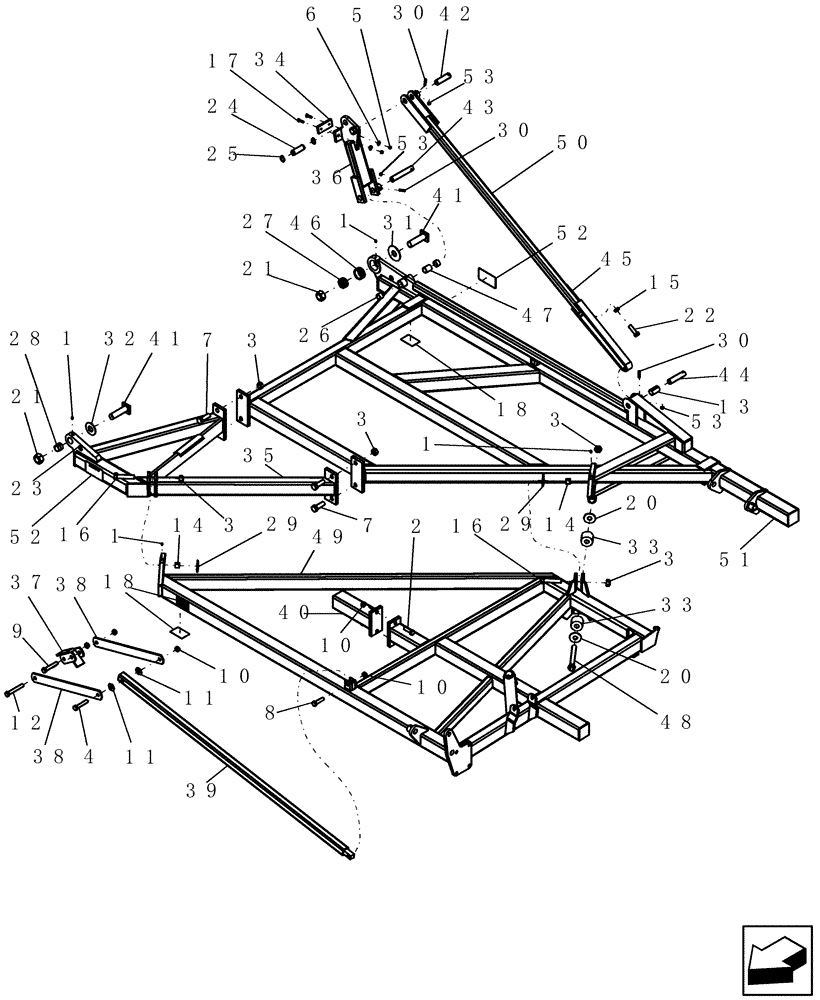

Запчасти Case IH 600 (39.100.05) - 12 THREE SECTION OUTER WING ASSEMBLY (39) - FRAMES AND BALLASTING

1

88775

LUBE NIPPLE,1/4"-28

4шт.

2

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

2шт.

3

280286

NUT,1"-8, GB

7шт.

4

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

5

88902

NUT,3/8"-16

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

7

84128

BOLT,Hex, 1" x 3", Gr 5

4шт.

8

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

9

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

10

280375

NUT,3/4"-10, GC

6шт.

11

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

12

86507002

BOLT,Hex, 3/4"- 10 x 5 1/2", Gr 5

1шт.

13

3498

BUSHING

tension 1 1/2" x 1 1/4" x 2 1/2" long

1шт.

14

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

15

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

16

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

2шт.

17

5884

SCREW

cap 3/8"-16 x 1 1/2" blk fh

2шт.

18

22903

DECAL

retroreflective amber 2" x 9"

3шт.

20

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

2шт.

21

87323803

LOCK NUT

1 1/2"-12, GC

2шт.

22

6452

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5, Full Thd

1шт.

40', 42' and 44' models

1шт.

Shown

1шт.

22

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

23

6566

DECAL

grease 50 hours

3шт.

24

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

1шт.

Monarch Cylinders - clevis end

1шт.

24

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

Monarch Cylinders - rod end

1шт.

25

86625148

SNAP RING,#125, Ext

2шт.

26

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

27

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

28

7825

GROOVED BUSHING

tension 1 3/4" x 1 1/2" x 1 1/2" long

1шт.

29

7860

WASHER

1 1/16" id 3 3/16"

2шт.

30

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3шт.

31

432583A1

WASHER

1.52" id x 4.25" od x .188" thick

1шт.

32

432584A1

WASHER

1.52" id x 3.5" od x .188" thick

1шт.

33

CA-136

TUBE

poly 2 3/4" od x 1 1/4" id x 2 1/2" long

1шт.

34

ND-485

BRAKE PAD

caster pivot

1шт.

35

432480A1

FRAME

12' front inner wing LH

1шт.

Includes 6566, 7825, and TC-500.08

1шт.

35

432481A1

FRAME

12' front inner wing RH

1шт.

Includes 6566, 7825, and TC-500.08

1шт.

Not Shown

1шт.

36

NW-372

LEVER

lift 114º for 13' center section

1шт.

Shown

1шт.

36

NW-405V2

LEVER

lift 114º for 16' center section

1шт.

37

NW-377

PIVOT

relocator, rest link

1шт.

38

NW-380

LINK

rest, inner

2шт.

39

NW-382

LINK

rest 12' wing, 114º

1шт.

40

432507A1

FRAME

stub inner 12' wing

1шт.

41

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

1шт.

42

NW-473

PIN

1 1/4" x 4 3/4"

2шт.

43

NW-476

PIN

1 1/4" x 7 1/2"

1шт.

44

NW-477

PIN

1 1/4" x 5 1/2"

1шт.

45

NW-500.06

DECAL

wing lift adjustment

1шт.

46

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

47

NW-507

SPACER

plastic 1 1/2" od x 1 15/16" long

1шт.

48

NW-579

BOLT

1"-8 x 9 1/8"

1шт.

49

432483A1

FRAME

12' front outer wing LH

1шт.

Includes 64601C1

1шт.

49

432482A1

FRAME

12' front outer wing RH

1шт.

Includes 64601C1

1шт.

50

NW-673

LINK

lift 12' 114º

1шт.

51

432486A1

FRAME

12' 114º rear wing LH

1шт.

Includes 22903, 64601C, two 6636, NW-507, NW-505, 7809, TC-500.03 and two 6566

1шт.

Shown

1шт.

51

432485A1

FRAME

12' 114º rear wing RH

1шт.

Includes 22903, 64601C, two 6636, NW-507, NW-505, 7809, TC-500.03 and two 6566

1шт.

Not Shown

1шт.

52

TC-500.08

DECAL

raised wings

1шт.

53

88902

NUT,3/8"-16

3шт.

100

NW-299K

KIT

ball housing 12' wing

1шт.

Used to repair ball housing, Includes ball housing, mounting shell, bushing and instruction sheet

1шт.

Not Shown

1шт.
