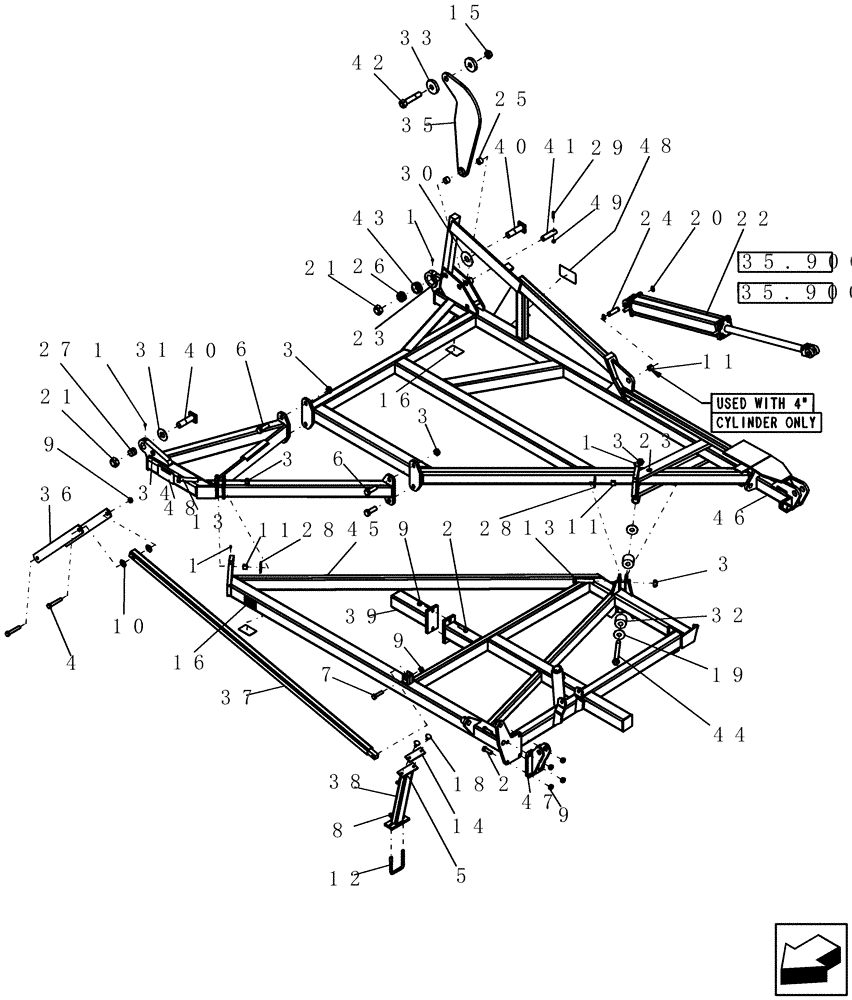

Запчасти Case IH 600 (39.100.03) - 12 FIVE SECTION INNER WING ASSEMBLY (39) - FRAMES AND BALLASTING

1

88775

LUBE NIPPLE,1/4"-28

4шт.

2

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

6шт.

3

280286

NUT,1"-8, GB

7шт.

4

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

5

88902

NUT,3/8"-16

2шт.

6

84128

BOLT,Hex, 1" x 3", Gr 5

4шт.

7

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

280375

NUT,3/4"-10, GC

6шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

11

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

12

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

13

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

2шт.

14

5887

RUBBER PAD

wing rest

1шт.

15

87323802

NUT

1 1/4"-12, GB

1шт.

16

22903

DECAL

retroreflective amber 2" x 9"

1шт.

18

87508081

BOLT

EL 3/8"-16 x 1 1/2"

2шт.

19

6252

WASHER

1 1/16" id x 3" od x 1/4" thick

2шт.

20

87019495

SNAP RING,#98, Ext

4шт.

20

86625148

SNAP RING,#125, Ext

4шт.

21

87323803

LOCK NUT

1 1/2"-12, GC

2шт.

22

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

52', 54' and 56' models

1шт.

Refer to 35.900.05

1шт.

Shown

1шт.

87437292R

REMAN-HYD CYLINDER

600 (7/08-)

1шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

22

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

1шт.

Refer to 35.900.06

1шт.

58', 60' and 62' models

1шт.

Not Shown

1шт.

23

6566

DECAL

grease 50 hours

3шт.

24

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

Monarch Cylinders, 4" clevis end

1шт.

24

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.

Monarch Cylinders, 4" rod end

1шт.

24

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

1шт.

Monarch Cylinders, 5" clevis end

1шт.

24

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

Monarch Cylinders, 5" rod end

1шт.

25

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

26

7809

BUSHING

spherical 2 7/16" od x 1 1/2" id sealed

1шт.

27

7825

GROOVED BUSHING

tension 1 3/4" x 1 1/2" x 1 1/2" long

1шт.

28

7860

WASHER

1 1/16" id 3 3/16"

2шт.

29

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

1шт.

30

432583A1

WASHER

1.52" id x 4.25" od x .188" thick

1шт.

31

432584A1

WASHER

1.52" id x 3.5" od x .188" thick

1шт.

32

CA-136

TUBE

poly 2 3/4" od x 1 1/4" id x 2 1/2" long

2шт.

33

ND-543

ROLLER

ramp hinge 4" x 1 1/4" x 3/4"

2шт.

34

432480A1

FRAME

12' front inner wing LH

1шт.

Includes 6566, 7825, and TC-500.08

1шт.

34

432481A1

FRAME

12' front inner wing RH

1шт.

Includes 6566, 7825, and TC-500.08

1шт.

Not Shown

1шт.

35

NW-370

LEVER

lift 95º for 12' wing

1шт.

Includes two 6636

1шт.

36

NW-380

LINK

rest, inner

2шт.

37

NW-381

LINK

rest for 12' wing, 95º

1шт.

38

NW-389

PEDESTAL

wing rest 155º

1шт.

39

432507A1

FRAME

stub inner 12' wing

1шт.

40

NW-450V2

BOLT

1 1/2"-12 x 5 3/8" hardened

2шт.

41

NW-475

PIN

1 1/4" x 5"

1шт.

42

NW-478

BOLT

1 1/4"-7 x 6"

1шт.

43

NW-505

BUSHING,58.75mm ID x 73.71mm OD x 31.75mm L

mounting shell, spherical - 1 1/2" ball

1шт.

45

432483A1

FRAME

12' front outer wing LH

1шт.

Includes 64601C1

1шт.

Shown

1шт.

45

432482A1

FRAME

12' front outer wing RH

1шт.

Includes 64601C1

1шт.

Not Shown

1шт.

46

432492A1

FRAME

12' 95º rear wing LH

1шт.

Includes 64601C1, 22903, two 6566, 7809, NW-505, and TC-500.08

1шт.

Shown

1шт.

46

432491A1

FRAME

12' 95º rear wing RH

1шт.

Includes 64601C1, 22903, two 6566, 7809, NW-505, and TC-500.08

1шт.

Not Shown

1шт.

47

NW-631

BRACKET

hinge, female 3 1/4"

1шт.

43' - 56' models

1шт.

Shown

1шт.

47

NW-330

BRACKET

hinge, female 2"

1шт.

62' models

1шт.

Not Shown

1шт.

48

TC-500.08

DECAL

raised wings

1шт.

49

88902

NUT,3/8"-16

1шт.
