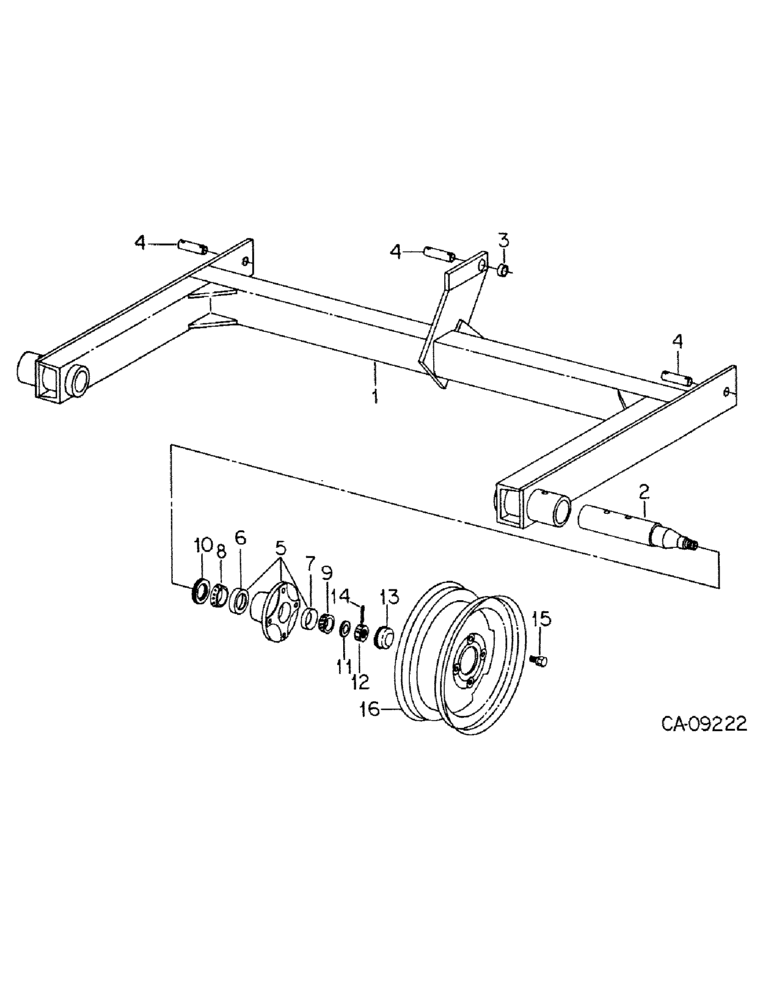

Запчасти Case IH 568 (B-08) - AXLE, WHEEL AND HUB, 4 ROW

1

138606C2

FRAME

AXLE, wheel

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

62824C1

SPINDLE

2шт.

3

145685C1

BUSHING

I.D. is 1"

1шт.

4

138626C1

PIN

axle pivot, DIA. 1-1/2"

3шт.

5

460149R11

HUB

ASSY

2шт.

6

651817R1

BEARING CUP

BEARING, inner cup

2шт.

7

651814R1

BEARING CUP

BEARING, outer cup

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, inner cone

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

652769R91

OIL SEAL

oil

2шт.

11

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

2шт.

12

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

13

564773R1

CAP

hub

2шт.

14

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

15

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

8шт.

16

455169R92

WHEEL

15 x 5KB 4 bolt, for 7 6-15 6 ply tire

2шт.

387841R91

VALVE

TR 413

2шт.

1960701C1

SPINDLE

optional, measures 11.12" long, 7/8" nut

1шт.
