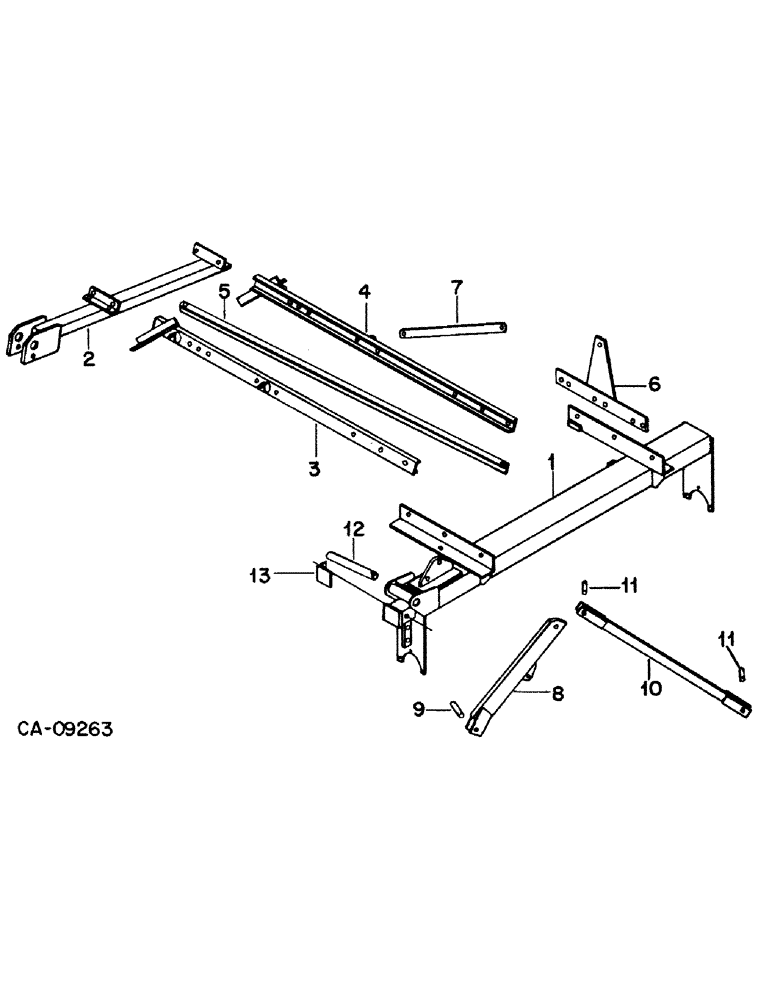

Запчасти Case IH 568 (B-06) - WING FRAME, 6 & 8 ROW FOLDING

1

81136C1

FRAME

WING, LH

1шт.

1

81137C1

FRAME

WING, RH

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

81141C1

BAR

rear wing

1шт.

3

62563C3

FRAME

ASSY, side RH

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

62562C3

FRAME

ASSY, side LH

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

5

62568C1

ANGLE

diagonal brace

2шт.

6

81109C91

SUPPORT

MAST W/PRODUCT GRAPHICS

2шт.

81142C1

PRODUCT GRAPHIC

warning

2шт.

81143C1

PRODUCT GRAPHIC

warning

2шт.

7

62564C1

BRACE

rear bar

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

8

81146C1

ARM

lift

2шт.

REF#9 PIN MEASURES ABOUT 1" x 3.7" LONG

1шт.

9

81150C1

PIN

lift arm

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

10

81145C1

TUBE,986.5 mm Length

lift

2шт.

REF#11 PIN MEASURES ABOUT 1" x 2.9" LONG

1шт.

11

62574C1

PIN

lift tube

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

8шт.

REF#12 PIN DIAMETER IS 1 3/8" 9/25/96

1шт.

12

62561C1

PIN

hinge

2шт.

114-326

BOLT,Hex, 7/16" - 20 x 2-1/2", Gr 5

7/16-NF x 2-1/2 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

13

81148C1

SHIM

.12

1шт.

13

81149C1

SHIM

.06

1шт.
