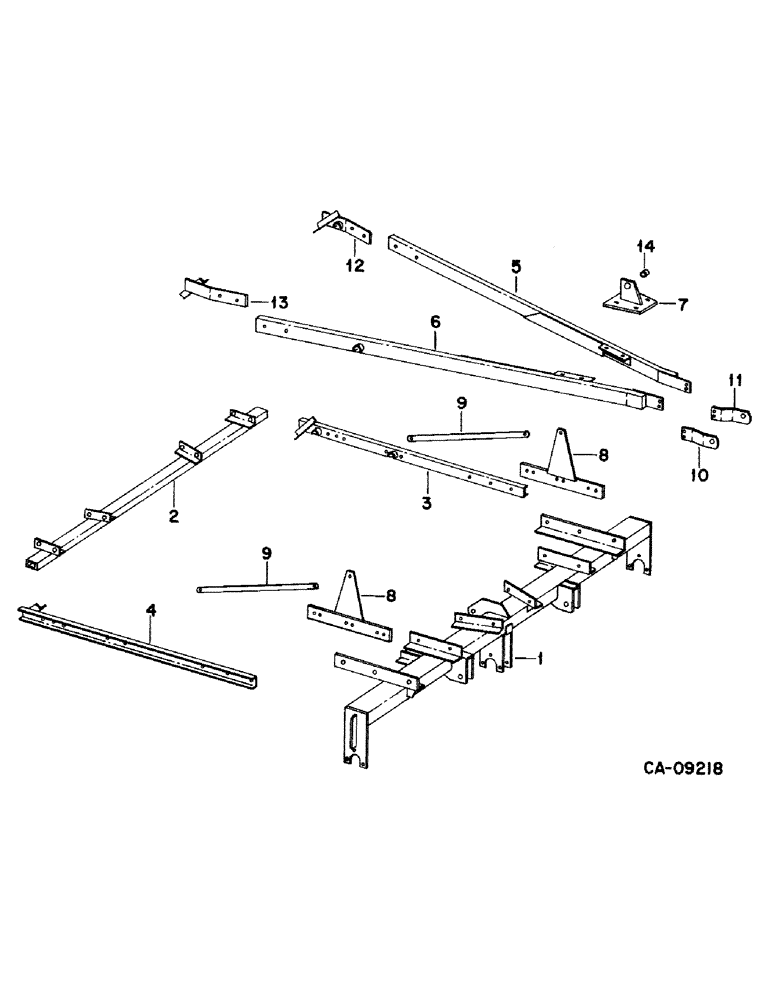

Запчасти Case IH 568 (B-02) - MAIN FRAME, 4 ROW RIGID

1

81094C1

FRAME

main

1шт.

2

81097C1

BAR

rear

1шт.

3

62562C3

FRAME

ASSY, side LH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

4

62563C3

FRAME

ASSY, side RH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

5

81095C1

FRAME

ANGLE, frame LH

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

6

81096C1

FRAME

ANGLE, frame RH

1шт.

7

138613C1

CYLINDER

ANCHOR, cylinder

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

8

81109C91

SUPPORT

MAST W/PRODUCT GRAPHICS

2шт.

81142C1

PRODUCT GRAPHIC

warning

2шт.

81143C1

PRODUCT GRAPHIC

warning

2шт.

9

62564C1

BRACE

rear bar

2шт.

271796

BOLT,Hex, 3/4" - 16 x 2 3/4", Gr 5

3/4-NF x 2-3/4 type 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

10

81107C1

BRACKET

offset LH

1шт.

11

81108C1

BRACKET

offset RH

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

12

138628C2

SPRING

MOUNT, leaf spring LH

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

13

138629C2

SPRING

MOUNT, leaf spring RH

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

14

145685C1

BUSHING

cyl anchor

1шт.
