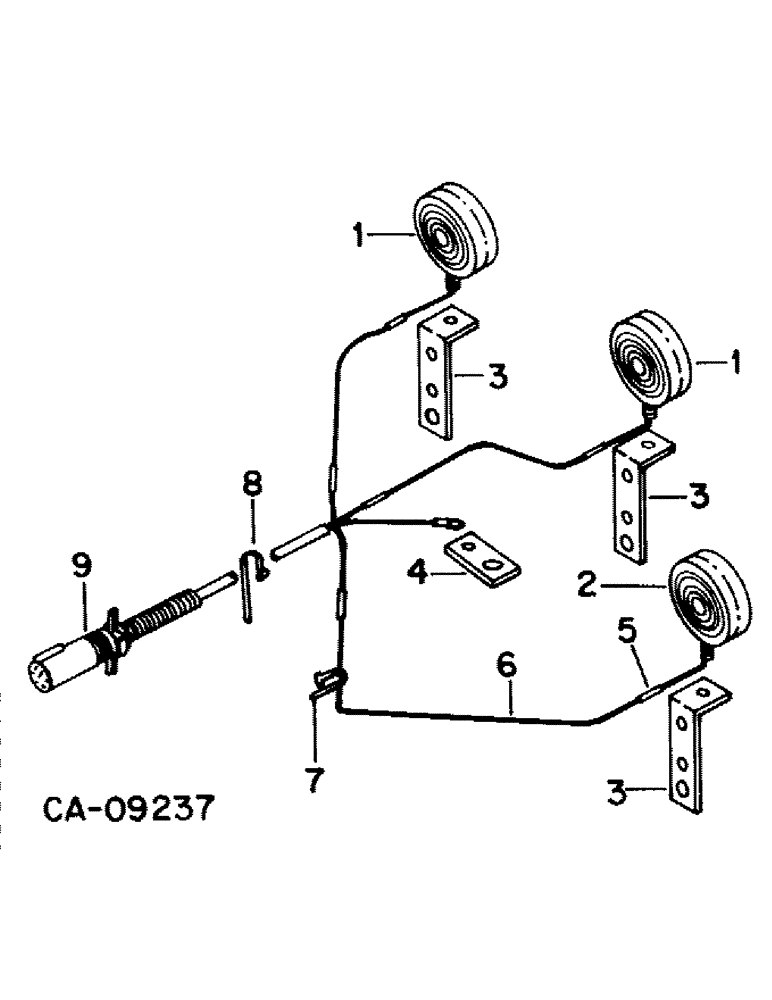

Запчасти Case IH 568 (B-26) - FLASHING WARNING LIGHTS, PRODUCT GRAPHICS

1

67538C92

HEADLIGHT

LIGHT ASSY, amber, only serviceable item is

2шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

1шт.

2

ZA103734

LIGHT

ASSY, red, only serviceable item is

1шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

1шт.

3

81101C1

BRACKET

light mounting

3шт.

4

81100C1

STRAP

BAR

1шт.

5

56698R1

WIRE CONNECTOR

TERMINAL

8шт.

6

WIRE, 14 ga, furnish from 100 ft roll maked 995055R1, for 1 ft length

1шт.

7

306132C1

CABLE TIE,14.5" L

TIE, nylon (2-1/2 in.)

5шт.

8

386170C1

CABLE TIE,.30" x 27 1/2"

TIE, nylon (4 in.)

3шт.

9

81102C1

HARNESS

lighting

1шт.

80930C91

PACKAGE

product graphic, consists of

1шт.

81142C1

PRODUCT GRAPHIC

WARNING, product graphics

2шт.

81143C1

PRODUCT GRAPHIC

WARNING, product graphics

2шт.

81122C1

PRODUCT GRAPHIC

WARNING, product graphics

2шт.

1253970C1

KIT

PACKAGE, model designation, product graphics

1шт.

1256858C91

PACKAGE, product graphic International, consists of International (NSS), International (NSS), product graphics

1шт.

80762C91

DECAL

PACKAGE, product graphic IH, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91, product graphics

2шт.
