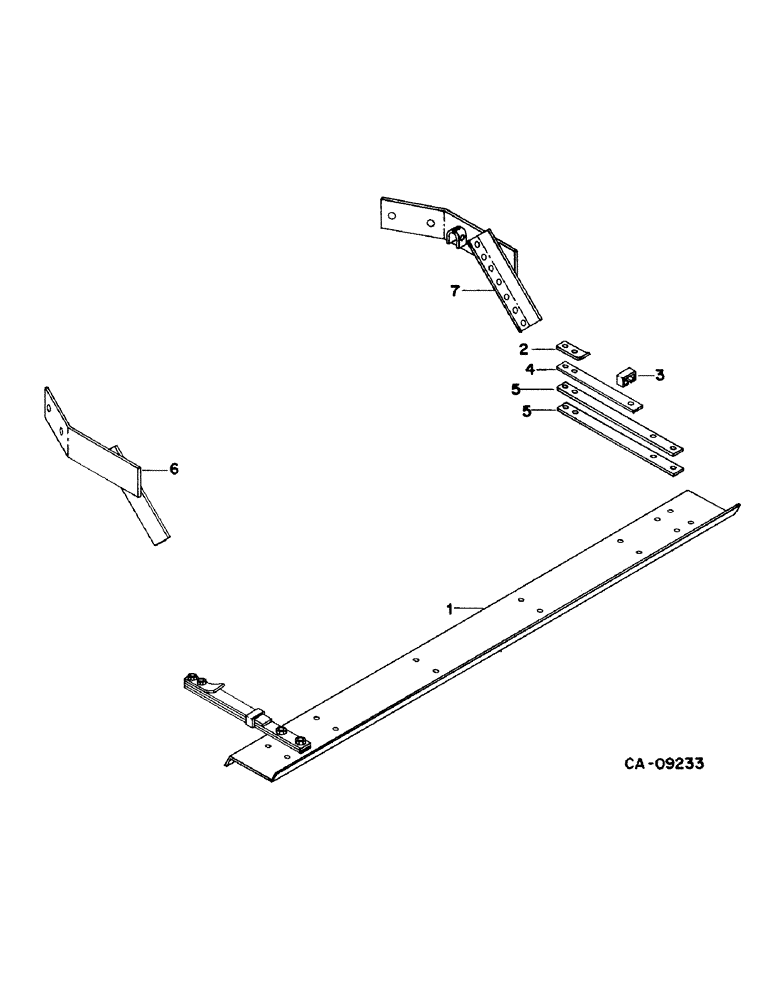

Запчасти Case IH 568 (B-22) - LEVELER

1

1251083C1

BOARD

LEAF, long, 8 used 4 row, 12 used 6 row, 16 used 8 row

1шт.

2

112509C2

BAR

LEAF, short, 4 used 4 row, 6 used 6 row, 8 used 8 row

1шт.

3

62559C1

CLIP

BAR, leaf spring clip, 1 per short leaf

1шт.

4

62558C1

SPRING, LEAF

CAP, leaf spring, 1 per short leaf

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

62557C1

SPRING, LEAF

LEVELER, 2 used 4 row, 3 used 6 row, 4 used 8 row

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

138628C2

SPRING

MOUNT, leaf spring LH

1шт.

7

138629C2

SPRING

MOUNT, leaf spring RH

1шт.
