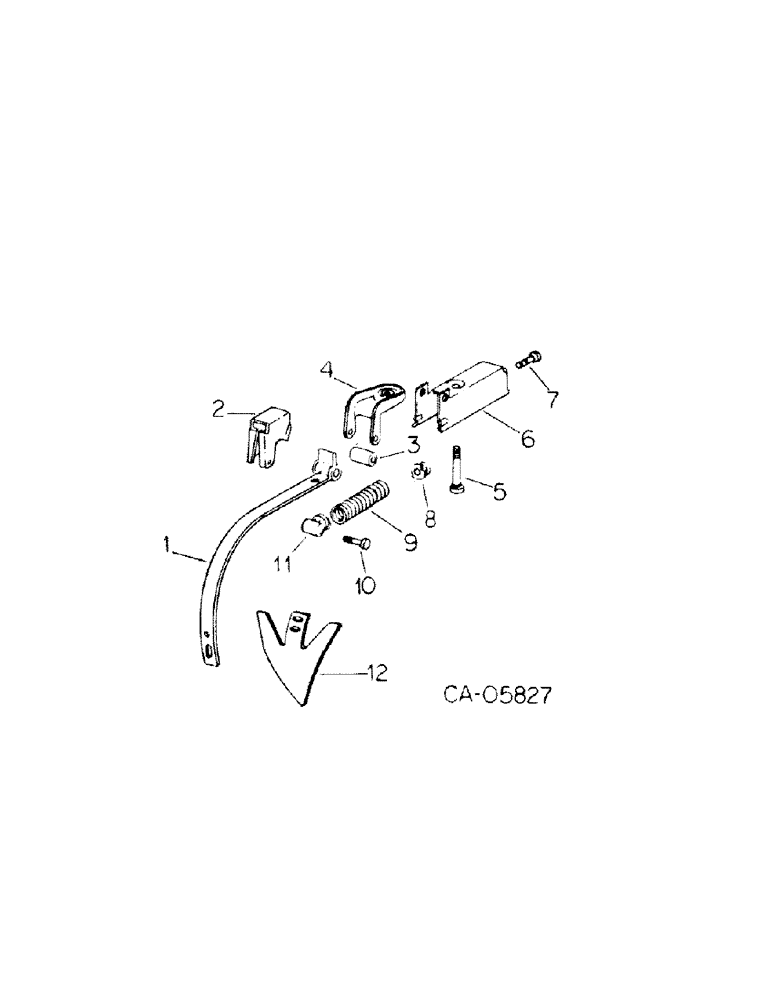

Запчасти Case IH 568 (B-20) - TOOLING EQUIPMENT, VIBRA SHANK

1

813293C1

SHANK

1шт.

2

591542R1

BRACKET

CLAMP, 1 per shank

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

3

811354C1

BUSHING

shank, 1 per shank

1шт.

4

811353C1

CLAMP

top, 1 per shank

1шт.

20835R1

NUT,1/2"-13, G8

1/2 pln type 8

1шт.

811352C1

BOLT,1/2" - 13 x 3 1/2"

1/2-13 x 3-1/2 hex-hd type 8

1шт.

5

591840R2

BOLT, 1/2-13 x 4 C-Z special, 1 per shank

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 ext lock, 2 per bolt

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, 1 per bolt

1шт.

6

811357C1

SUPPORT

BRACKET, 1 per shank

1шт.

7

597671R1

BOLT,1/2" - 13 x 2.06", Gr 20

shank bracket, 1 per shank

1шт.

8

591547R1

PLUG

spring, 1 per shank

1шт.

9

591546R1

SPRING

1 per shank

1шт.

10

591545R1

PIN,13.08mm OD x 61.98mm L

special, 1 per shank

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

11

591544R1

PLUG

spring, 1 per shank

1шт.

12

591588R1

TIP

SHOVEL, 4-1/2 in.

1шт.

12

591589R1

SWEEP

SHOVEL, 7-1/2 in.

1шт.

12

811889C1

POINT

2 in. wide x 5/16 thick reversible pencil

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT, 7/16 x 1-3/8 plow type 1, 2 per shovel

2шт.

21331R1

WASHER

.469 x 1.250 x .054

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.
