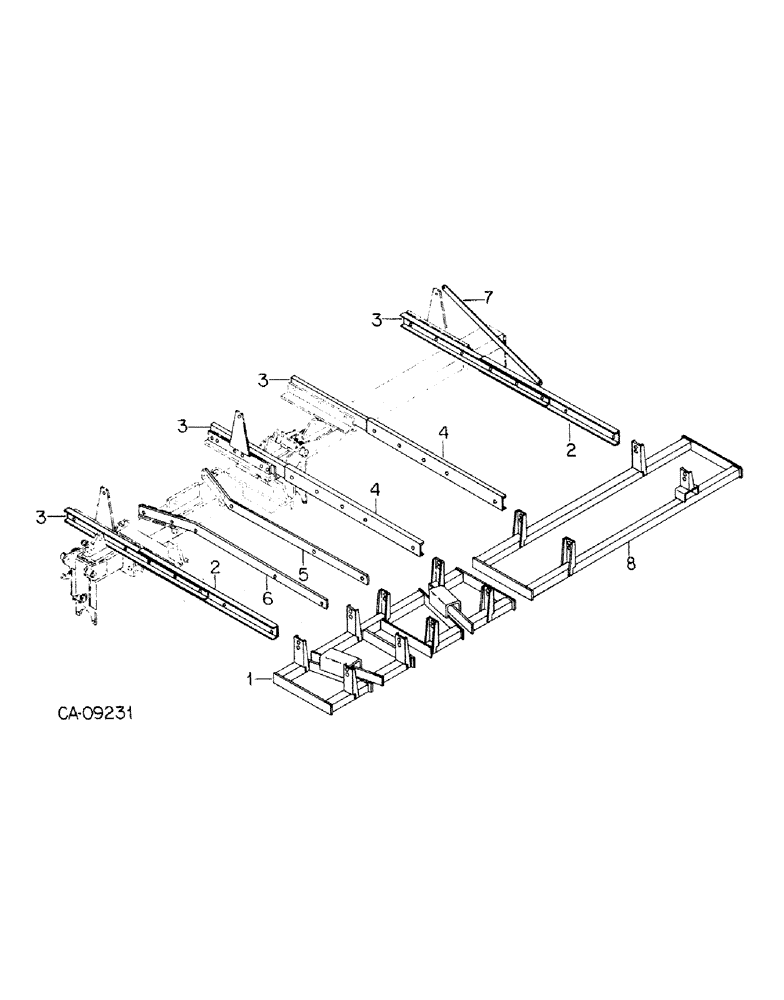

Запчасти Case IH 568 (B-18) - TOOLING EQUIPMENT FRAME AND WING FRAME, 6 ROW

1

81153C1

FRAME

center

1шт.

2

81124C1

CHANNEL

ARM, RH

3шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

81125C1

CONNECTOR, ELEC

CONNECTOR

6шт.

4

81123C1

CHANNEL

ARM, LH

3шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

5

81128C1

ARM

left

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

6

81129C1

ARM

right

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

95621C1

BRACE

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

8

81151C1

FRAME ASSY

FRAME, wing RH

1шт.

8

81152C1

FRAME ASSY

FRAME, wing LH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.
