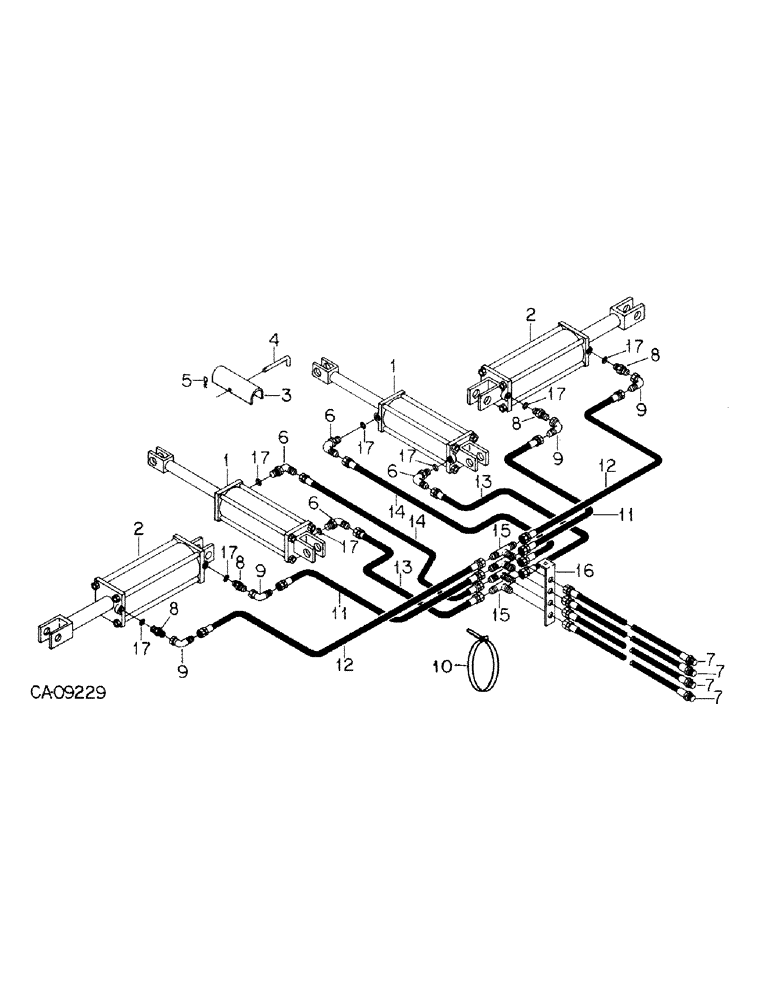

Запчасти Case IH 568 (B-15) - HYDRAULIC CYLINDER AND CONNECTIONS, 6 AND 8 ROW

1

1272147C91

CYLINDER

3-1/2 x 8 hydraulic, refer to cyl-1 for components

2шт.

84919C2

GASKET KIT

KIT, o-ring & seal service

1шт.

2

1272148C91

CYLINDER

4 x 8 hydraulic, refer to cyl-1 for components

2шт.

80117C2

SEAL KIT

o-ring & seal service

1шт.

3

81110C1

LOCK

CHANNEL, cylinder lock

4шт.

4

81115C1

PIN

4шт.

5

480523R1

HAIR PIN COTTER

quick attachable

4шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D

4шт.

7

81134C1

HYDRAULIC HOSE,9.65 mm ID x 3962.40 mm, SAE 100R1

HOSE, 3/8 x 156 in. long, machines w/o ground working tools

1шт.

7

81120C1

HYDRAULIC HOSE,0.38" ID x 168.00", SAE 100R1

HOSE, 3/8 x 168 in. long, machines w/ground working tools

4шт.

8

95614C1

CONNECTOR, ELEC

RESTRICTOR, 3/4-16 JIC/34-16 ORB

4шт.

9

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld 90D swivel

4шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

TIE, nylon

5шт.

11

185853C1

HOSE

3/8 x 32 in. long, 6 row

2шт.

11

813537C1

HOSE ASSY.

HOSE, 3/8 x 65 in. long, 8 row

2шт.

12

675974R91

HOSE ASSY.

HOSE, 3/8 x 40 in. long, 6 row

2шт.

12

675984R91

HOSE

3/8 x 75 in. long, 8 row

2шт.

13

851789C2

HOSE

3/8 x 21 in. long, 6 row

2шт.

13

675984R91

HOSE

3/8 x 75 in. long, 8 row

2шт.

14

587582R91

HOSE ASSY.

HOSE, 3/8 x 26 in. long, 6 row

2шт.

14

81157C1

HYDRAULIC HOSE,9.65 mm ID x 2108.20 mm, SAE 100R7

HOSE, 3/8 x 83 in. long, 8 row

2шт.

15

9402982

TEE,3/4"-16, 37 Degree

1/2 C-Z hyd flared three way

4шт.

16

81147C1

BRACKET

hose mounting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

8шт.
