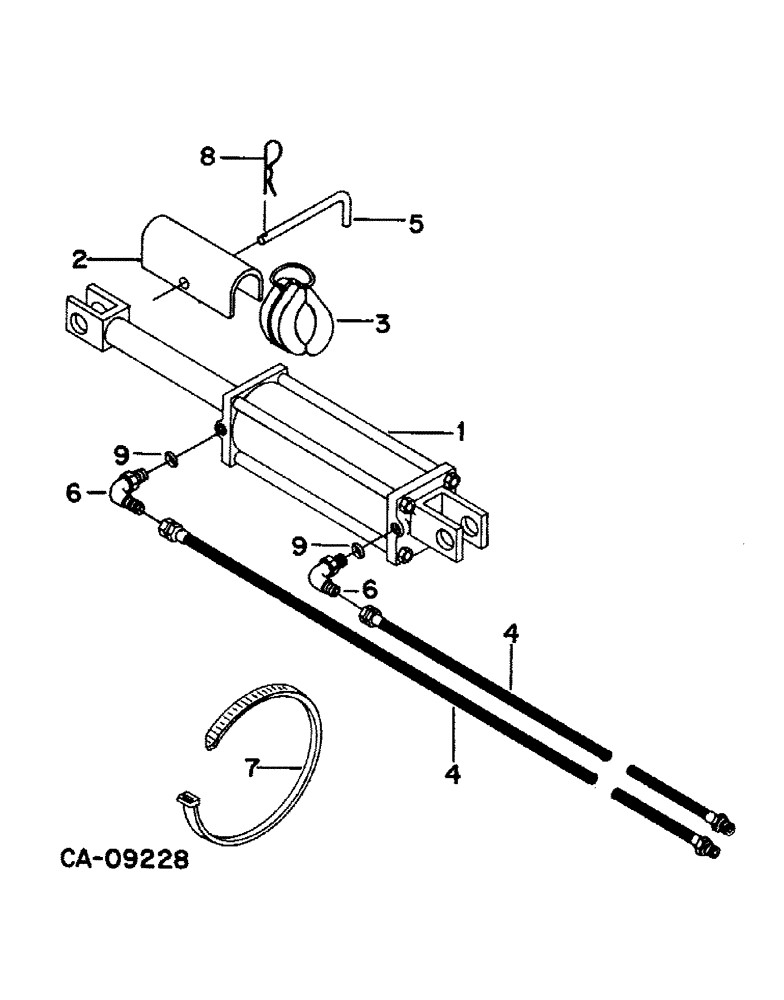

Запчасти Case IH 568 (B-14) - HYDRAULIC CYLINDER AND CONNECTIONS, 4 ROW

1

1272147C91

CYLINDER

3-1/2 x 8 hydraulic, refer to cyl-1 for components

1шт.

84919C2

GASKET KIT

KIT, o-ring & seal

1шт.

2

81110C1

LOCK

CHANNEL, cylinder lock

1шт.

3

479853R91

PACKAGE

KIT, cyl stop collar

1шт.

4

81134C1

HYDRAULIC HOSE,9.65 mm ID x 3962.40 mm, SAE 100R1

HOSE, 3/8 x 156 in. long, machines w/o ground working tools

2шт.

4

81120C1

HYDRAULIC HOSE,0.38" ID x 168.00", SAE 100R1

HOSE, 3/8 x 168 in. long, machines w/ground working tools

2шт.

5

81115C1

PIN

1шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z fld adj 90D

2шт.

7

386170C1

CABLE TIE,.30" x 27 1/2"

TIE, nylon

3шт.

8

480523R1

HAIR PIN COTTER

quick attachable

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.
