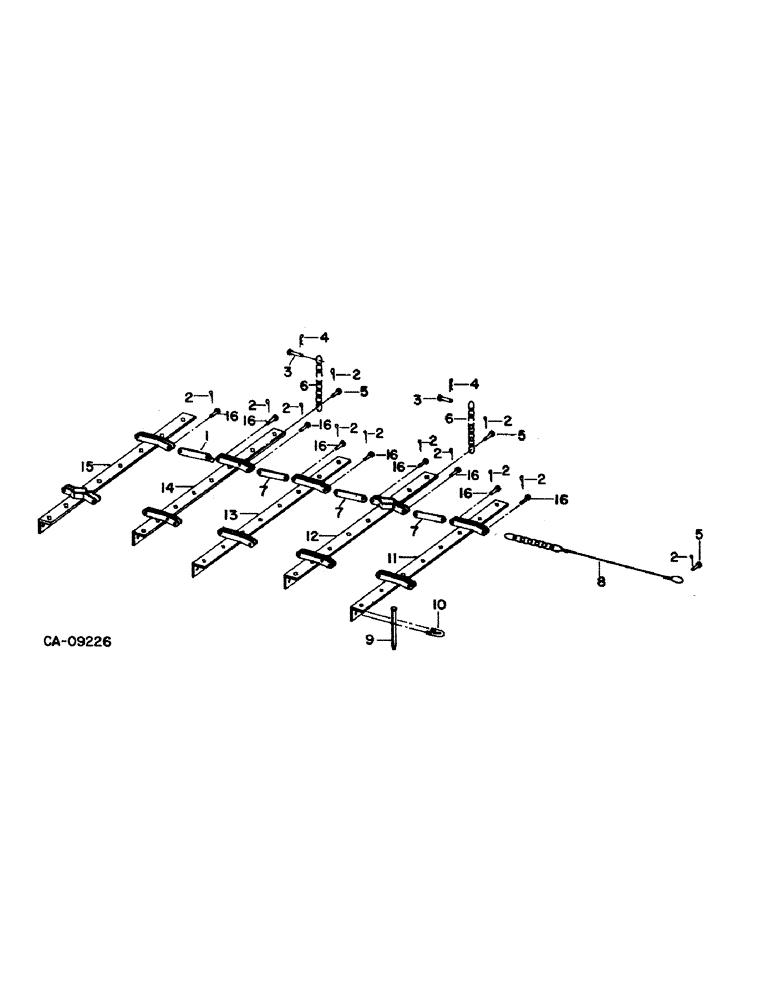

Запчасти Case IH 568 (B-12) - PEG TOOTH SECTION, HEAVY DUTY

1

62548C1

BAR

CONNECTOR, tooth bar rear, 2 per rod

1шт.

2

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

3

Q1178

HEADED PIN,7/16" x 2 1/2"

PIN, 7/16 x 2.500 pln hd type 1

1шт.

4

480523R1

HAIR PIN COTTER

quick attachable

1шт.

5

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2.250 hd type 1

1шт.

6

CHAIN, 5/16 proof coil, 2 per row, use 20 links from 75 ft roll marked zan 4030336

1шт.

7

62547C1

BAR

CONNECTOR, tooth bar, 12 used 4 row, 18 used 6 row, 24 used 8 row

1шт.

8

138609C1

CHAIN

ROD, center harrow pull, 2 used 4 row

1шт.

8

138585C1

CHAIN (AG)

ROD, center harrow, pull, 2 used 6 row, 4 used 8 row

1шт.

9

62576C1

TOOTH

1шт.

10

62551C1

U-BOLT,3/8" - 16 x 1.9", Carbon Steel

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

62552C1

BAR

tooth no. 1

1шт.

12

62553C1

BAR

tooth no. 2

1шт.

13

62554C1

BAR

tooth no. 3

1шт.

14

62555C1

BAR

tooth no. 4

1шт.

15

62556C1

BAR

tooth no. 5, 2 used 4 row, 3 used 6 row, 4 used 8 row

1шт.

16

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2. hd type 1

1шт.
