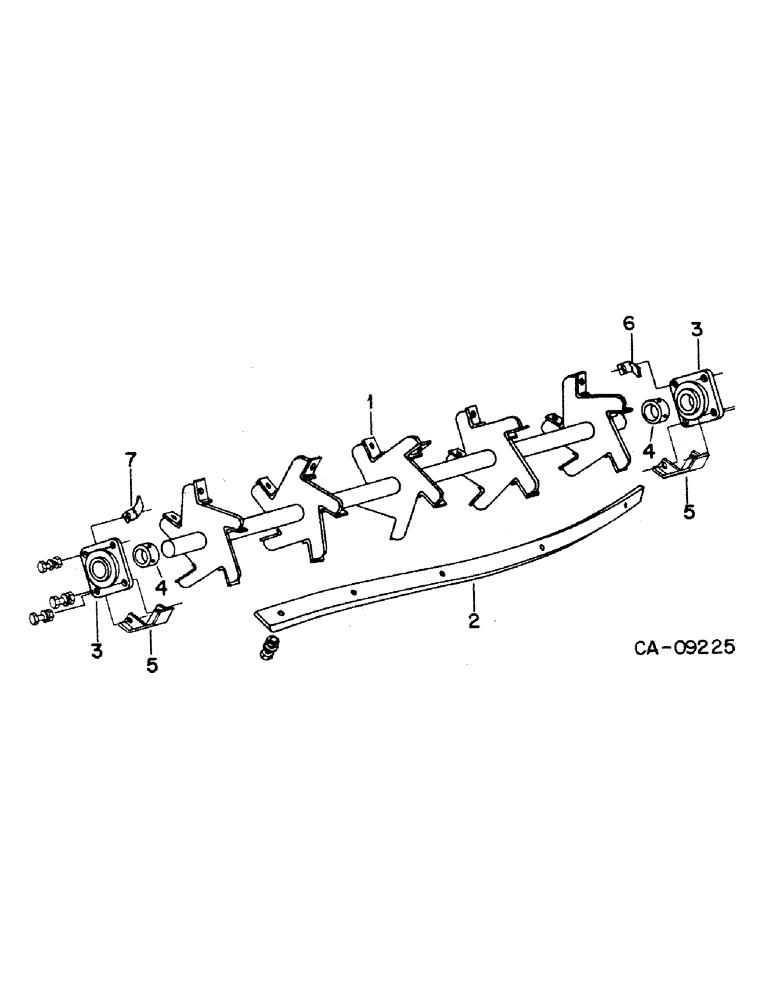

Запчасти Case IH 568 (B-11) - REEL

1

138575C1

REEL

2 used 4 row, 3 used 6 row, 4 used 8 row

1шт.

2

62560C1

CUTTER BAR

BLADE

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

3

ST3012A

FLANGED BEARING,49.22mm ID

BEARING, flange, 2 per reel

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

4

618032R11

COLLAR

W/SET SCREW, bearing, 2 per reel

1шт.

5

1253966C1

GUARD

bearing, 2 per reel

1шт.

6

81098C1

GUARD

lub fitting LH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

81099C1

GUARD

lub fitting RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
