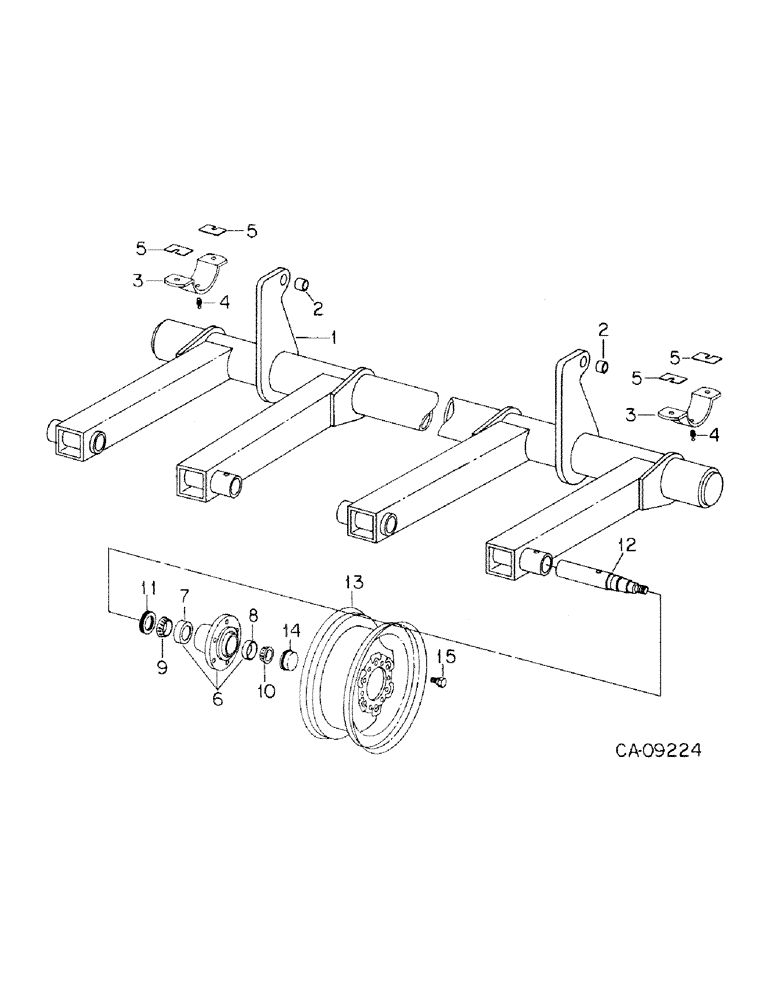

Запчасти Case IH 568 (B-10) - AXLE, WHEEL AND HUB, 8 ROW

1

81156C91

AXLE

wheel

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

95617C1

BUSHING

I.D. 1" long

2шт.

3

138574C1

CLAMP

axle mounting half

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

5

1253964C1

SHIM

11 ga

1шт.

5

1253965C1

SHIM

16 ga

1шт.

6

62509C1

HUB

ASSY

4шт.

7

478793R1

BEARING CUP

BEARING, inner cup

4шт.

8

651817R1

BEARING CUP

BEARING, outer cup

4шт.

9

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

BEARING, inner cone

4шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, outer cone

4шт.

11

95616C1

PACKAGE

KIT, seal & wear sleeve

4шт.

12

62824C1

SPINDLE

wheel axle, 12" long w/5/8" nut

4шт.

446265

WASHER, plain

4шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5

4шт.

13

486101R2

RIM

WHEEL, 15 x 8KB 6 bolt, for 9.5L-15 6 ply tire

4шт.

387841R91

VALVE

TR 413

4шт.

14

62510C1

CAP

hub

4шт.

15

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

24шт.

1960701C1

SPINDLE

optional, 11.12" long w/7/8" nut

1шт.
