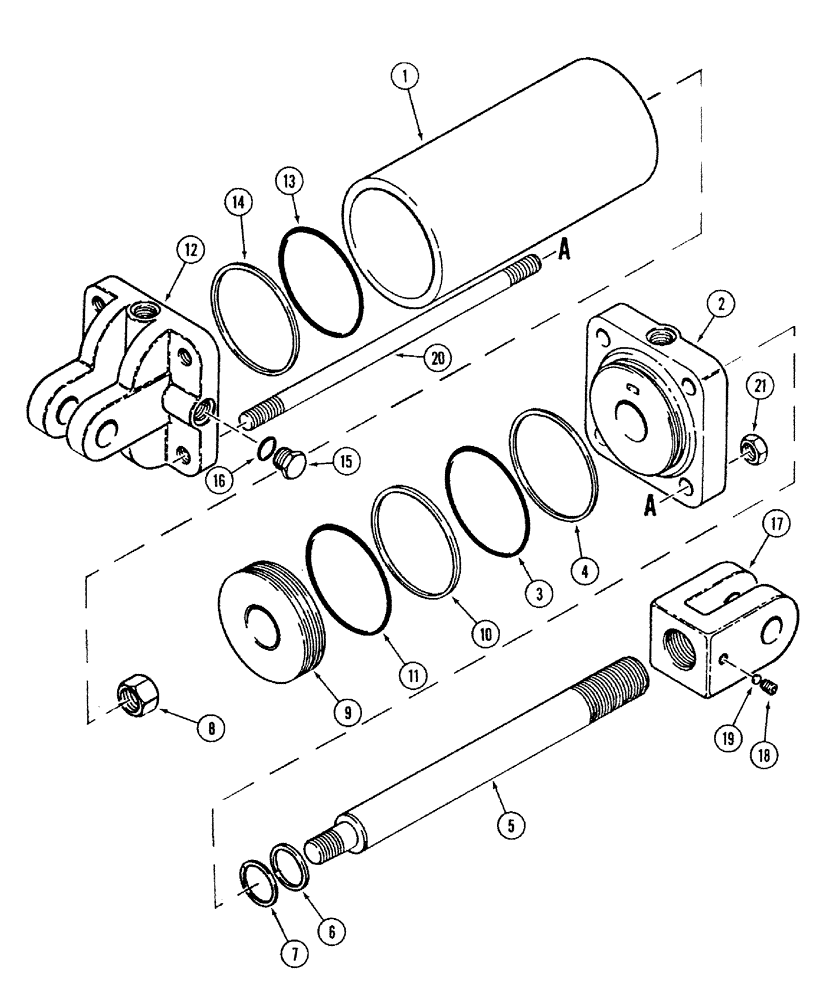

Запчасти Case IH 568 (8-04) - HYDRAULIC CYLINDER, 4 ID X 8 INCH STROKE (08) - HYDRAULICS

1272148C91

CYLINDER

ASSEMBLY - hydraulic, 4 x 8 inch, Inc. 1 - 21

1шт.

92917C91

CYLINDER

ASSEMBLY - hydraulic, 4 x 8 inch, Inc. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

386762A1

HEAD

GLAND - cylinder (Replaces 1272920C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland, 3-3/4 ID x 4 inch OD

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

5

1267056C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

149930C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal, 3-1/2 ID x 3-11/16 OD

1шт.

12

1272919C1

CYLINDER HEAD

HEAD - cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-3/4 x ID x 4 inch OD

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

15

214389

PLUG,3/4" - 16 ORB

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

17

1267057C1

CLEVIS,3/8" - 16

- piston rod

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

21

425-1010

NUT,5/8"-11, G5

4шт.

22

1266753C1

PIN,25.4mm OD x 96.83mm L

- clevis and cylinder head (Not shown) (Included in 92917C91 cylinder assembly only)

2шт.

23

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter (Not shown) (Included in 92917C91 cylinder assembly only)

4шт.

80117C2

SEAL KIT

- seal and O-ring, Inc. REF 3, 4, 6, 7, 10, 11, 13, 14, 16 and (2) wear rings not used on this cylinder

1шт.
