(8-03) - HYDRAULIC CYLINDER, 3-1/2 ID X 8 INCH STROKE

Запчасти Case IH 568 (8-03) - HYDRAULIC CYLINDER, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS

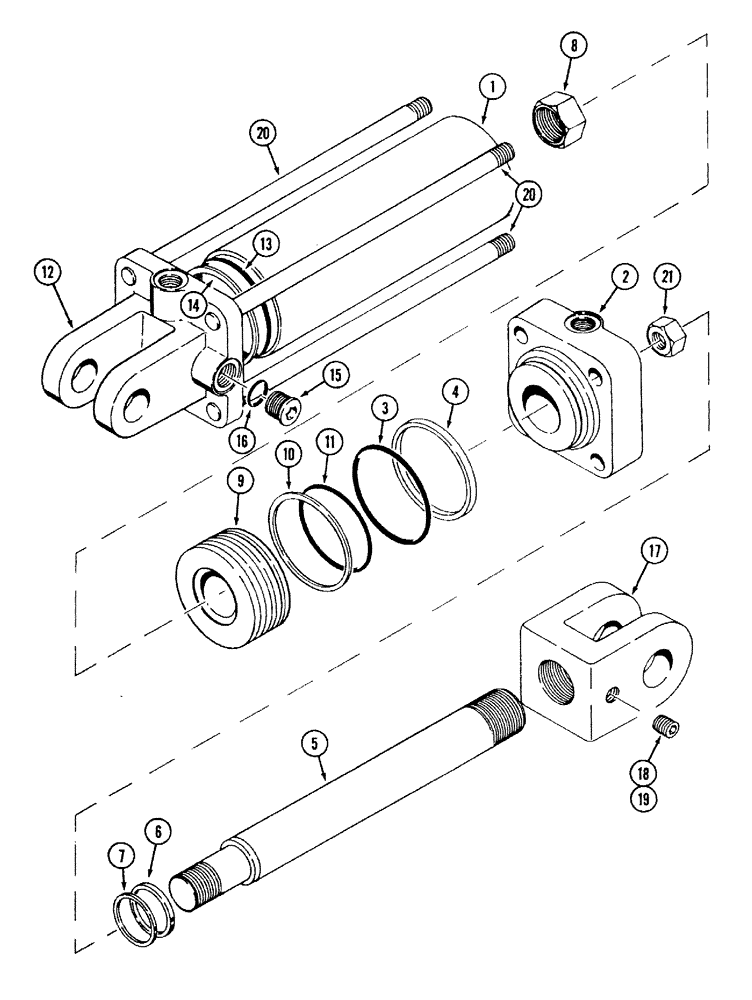

Схема запчастей Case IH 568 - (8-03) - HYDRAULIC CYLINDER, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS
7
12
21
8
2
15
3
18
13
11
9
6
20
1
19
17
16
4
10
14
20
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - hydraulic, 3-1/2 x 8 inch, Inc. 1 - 21

1шт.

92916C91

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch, Inc. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272826C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland, 3-1/4 ID x 3-1/2 inch OD

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

5

145231C1

PISTON ROD

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

85179C1

PISTON

- cylinder (Used with 1272147C92 cylinder assembly)

1шт.

9

145422C2

PISTON

- cylinder (Used with 92916C91 cylinder assembly)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal, 3 ID x 3-3/16 OD

1шт.

12

1272825C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/4 ID x 3-1/2 OD

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Used with 1272147C92 cylinder assembly Hex Soc, 3/4"-16 ORB

1шт.

15

214389

PLUG,3/4" - 16 ORB

(Used with 92916C91 cylinder assembly) Hex Hd, 3/4"-16 ORB

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

17

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

22

1266753C1

PIN,25.4mm OD x 96.83mm L

- clevis and cylinder head (Not shown) (Included in 92916C91 cylinder assembly)

2шт.

23

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter (Not shown) (Included in 92916C91 cylinder assembly)

4шт.

84919C2

GASKET KIT

KIT - seal and O-ring, Inc. REF 3, 4, 6, 7, 10, 11, 13, 14, 16 and (2) wear rings not used on this cylinder

1шт.
