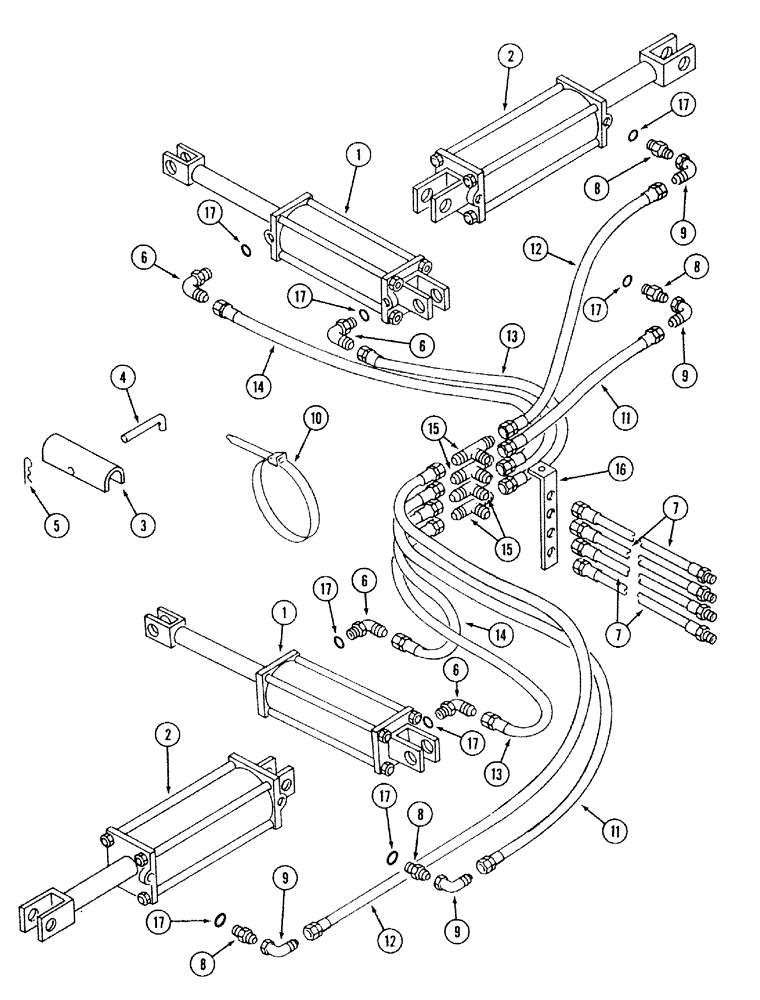

Запчасти Case IH 568 (8-02) - HYDRAULIC CYLINDERS AND CONNECTIONS (08) - HYDRAULICS

1

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - hydraulic, 3-1/2 x 8 inch

2шт.

See Figure 08-03

1шт.

1

92916C91

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch

2шт.

See Figure 08-03

1шт.

2

1272148C91

CYLINDER

ASSEMBLY - hydraulic, 4 x 8 inch

2шт.

See Figure 08-04

1шт.

2

92917C91

CYLINDER

ASSEMBLY - hydraulic, 4 x 8 inch

2шт.

See Figure 08-04

1шт.

3

81110C1

LOCK

CHANNEL - cylinder lock

4шт.

4

81115C1

PIN

- cylinder lock

4шт.

5

480523R1

HAIR PIN COTTER

9/64" dia

4шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

7

81134C1

HYDRAULIC HOSE,9.65 mm ID x 3962.40 mm, SAE 100R1

HOSE - hydraulic, 3/8 x 156 inch (For use on machines without ground working tools)

4шт.

7

81120C1

HYDRAULIC HOSE,0.38" ID x 168.00", SAE 100R1

HOSE - hydraulic, 3/8 x 168 inch (For use on machines with ground working tools)

4шт.

8

95614C1

CONNECTOR, ELEC

VALVE - restrictor, 3/4-16 inch

4шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

4шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie, nylon

5шт.

11

H205930

HYDRAULIC HOSE,838.80 mm, SAE 100R1A

6 Row Machines 838.80 mm, SAE 100R1A

2шт.

11

813537C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 65 inch (8 row machines)

2шт.

12

675974R91

HOSE ASSY.

HOSE - hydraulic, 3/8 x 40 inch (6 row machines)

2шт.

12

675984R91

HOSE

- hydraulic, 3/8 x 75 inch (8 row machines)

2шт.

13

851789C2

HOSE

- hydraulic, 3/8 x 21 inch (6 row machines)

2шт.

13

H331637

HYDRAULIC HOSE,9.52 mm ID x 2082.80 mm, SAE 100R1

(Replaces 675984R91) (8 row machines) 9.52 mm ID x 2082.80 mm, SAE 100R1

2шт.

14

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- hydraulic, 3/8 x 31 inch (Replaces 587582R91) (6 row machines)

2шт.

14

81157C1

HYDRAULIC HOSE,9.65 mm ID x 2108.20 mm, SAE 100R7

HOSE - hydraulic, 3/8 x 83 inch (8 row machines)

2шт.

15

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

4шт.

16

81147C1

BRACKET

- hose mounting

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

8шт.
